- mpnC23482
- brandname: Cle-Line
- manufacturername: Cle-Line

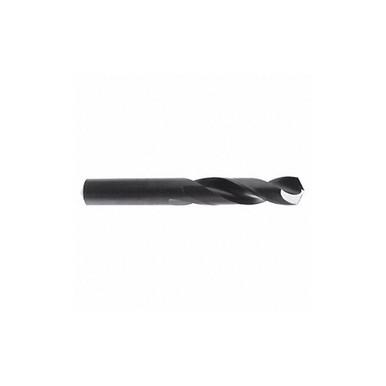

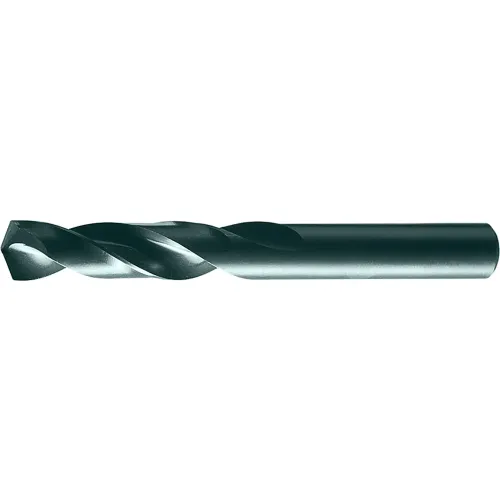

Screw Mach Drill, HSS, Blk Oxide, 13/32 In
- Brand: Cle-line
- PartNumber: C23482
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 97 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4062 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4062" |
| Diameter (Fraction) | 13/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 13/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0841 in |
| Drill Size - Decimal In. | 0.4062 in |
| Drill Size - Fraction | 13/32 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1 15/16 in, 1-15/16 in,. |
| Flute Length (Metric) | 49.21mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 15/16 in |
| Measurement System | Imperial |
| Mpn | C23482 |
| Number of Flutes | 2 |
| Overall Length | 3 5/16 in, 3.3125", 3-5. |
| Overall Length (Metric) | 84.14mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 13/32 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 13/32 in Dia x 1-3/8 in. |
| Shank Size (Metric) | 10.32mm |
| Shank Type | Straight |
| Sizes Included | 13/32" |
| SKU | ZO-G0823347 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 13/32" |
| Type | General Purpose Heavy D. |
| UPC | 697334234821 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544655 | 3.9305 | 6 | 6 | | Cle-Line | | 3.9305 @ 6 |
 | Megadepot | C23482 | 4.44 | 1 | 6 | | Cle-Line | | 4.44 @ 6 |
 | usmegastore.com | C23482 | 4.44 | 1 | 6 | | Cle-Line | | 4.44 @ 6 |
 | heavydutydepot.com | C23482 | 4.48 | 23 | 6 | | Cle-Line | | 4.48 @ 23 |
 | MRO Supply | 6124881 | 4.78 | 11 | 6 | | Cle-Line | | 4.78 @ 11 |
 | Zoro | G0823347 | 4.79 | 1 | 129 | | Cle-Line | 0.07 | 4.79 @ 6 |
 | Raptor Supplies | AD6UBY | 6.659406 | 1 | 6 | | CLE-LINE | | 6.659406 @ 6 |
 | sustainablesupply.com | C1465283 | 7.45 | 1 | 6 | | Cle-Line | 0.07 | 7.45 @ 6 |
 | simsupply.com | ZO-G0823347 | 11.95 | 1 | 97 | | Cle-Line | | 11.95 @ 6 |
 | Amazon | B00J9F6YSE | 29.26 | 1 | 6 | | Cle-line | | 29.26 @ 6 |
