- mpnC27928
- brandname: CLEVELAND
- manufacturername: CLEVELAND

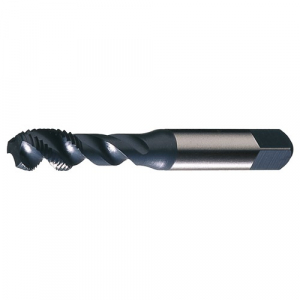

Cleveland C27928 B101 5/8-11 H5 4f Mbtm Ctd Hp Pm Sp Fl Tap
- Brand: Cleveland Twist Drill
- PartNumber: C27928
- Manufacturer: Cleveland
- Label: Cleveland
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 14.20 mm |
| 65% Thread Drill Size | 13.90 mm |
| 75% Thread Drill Size | 13.60mm |
| Chamfer Type | Semi-Bottoming |
| Class of Fit | 2B/3B, 2B, 3B |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 17/32 in |
| Extended Neck | Yes |
| Finish/Coating | Steam Oxide |
| Helix Angle | 42 Degrees, 30 deg |
| Item | Spiral Flute Tap |
| List Number | B101 |
| Material | HSS-E, M4 HSS/SD Powder. |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 3-13/16", 3-13/16 in |
| Pitch Diameter Limit | H5 |
| Primary Material Applic. | Stainless Steel, Steel |
| Primary Material Applic. | M, P |
| Secondary Material Appl. | Cast Iron, Stainless St. |
| Secondary Material Appl. | K, M |
| Series | B101 |
| Shank Dia. | Shank Dia.: 0.4800" |
| Shank Diameter | 0.48 in |
| Shank Length | 1 31/32 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 0.3600 in, 0.36 in |
| Standards | USCTI Table 302A |
| Style | B101 |
| Surface Condition | Steam Oxide |
| Tap Chamfer | Semi-Bottoming |
| Tap Dimension Type | Inch |
| Tap Finish | Steam Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Size | 5/8" |
| Tap Style | Spiral Flute |
| Tap Thread Size | 5/8"-11 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 1-13/16", 1.093 in |
| Thread Limit | H5 |
| Thread Pitch | 11 |
| Thread Size | 5/8-11, 5/8"-11 |
| Thread Standard | UNC |
| Threads per Inch | 11 |
| Tool Size | 5/8-11 UNC |
| Type | High Performance Spiral. |
