Comprehensive LC-ST-SM-10M

B00V0NK6I2

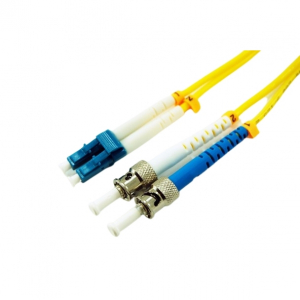

Micron Duplex Single Mode Cable

Micron Duplex Single Mode Cablezoom

Attributes

Key Value
Attenuation at 1310 nm0.35 dB/km
Attenuation at 1550 nm0.25 dB/km
Buffer MaterialPVC
Buffer OD900 um
Connector 1LC Male
Connector 2ST Male
Crush Resistance750 N/cm
Flex Resistance5, 000 cycles
Impact Resistance1, 000 cycles
Installation (Loaded) M.5.0cm (1.97in)
Installation Tensile Lo.100 N (445 lbs)
Jacket MaterialPVC (OFNR riser-rated)
Jacket OD3.0 mm
LC Connector Dimensions4.5mm Height x 4.5mm Wi.
Long-Term (Unloaded) Mi.3.0cm (1.2in)
Long-Term Tensile Load50 N (222 lbs)
Maximum Connector Loss0.50 dB
Maximum Tensile Load100 N/cm
Operating Temperature-20C to +80C
ST Connector Dimensions9.6mm Diameter x 56mm D.
Typical Connector Loss0.20 dB
Typical Return Loss-50 dB
Weight, Lbs1.5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AdoramaCVLCSTSM10M45.561In StockComprehensive45.56 @ 1
thumbzoombhphotovideo.comCOC10MLCSTSM51.02721In StockComprehensive51.0272 @ 1
thumbzoomprimebuy.comLC-ST-SM-10M63.841In StockComprehensive Connectivity1.563.84 @ 1
