- mpn4M096
- brandname: DAYTON
- manufacturername: DAYTON

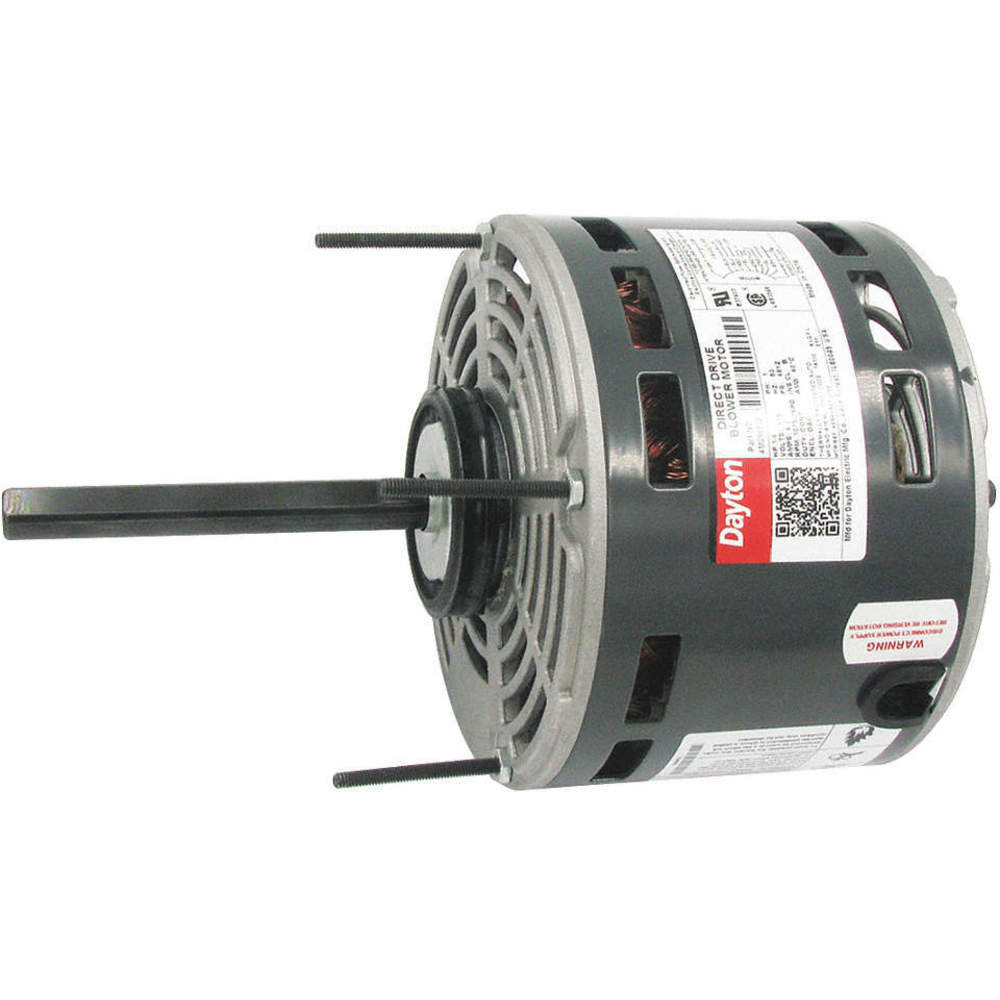

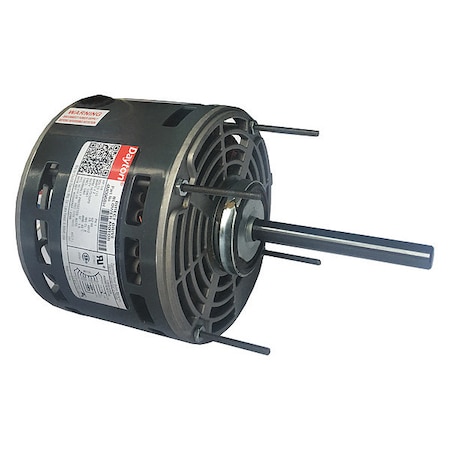

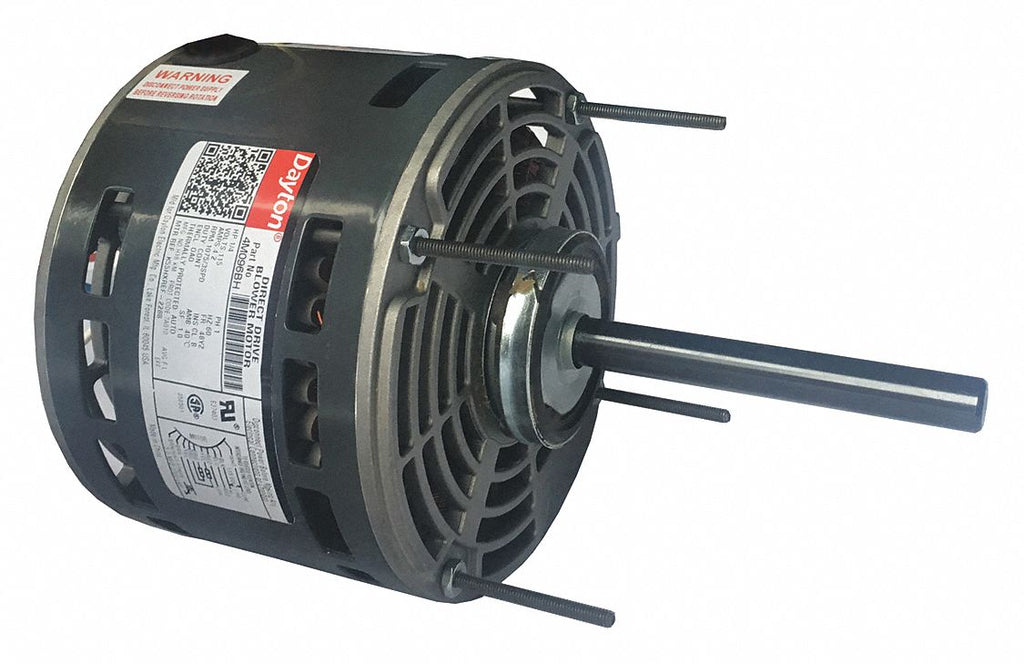

Dayton 1/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 115 Voltage - 4M096
- Brand: CAI - DAYTON
- PartNumber: 4M096
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 4.2 |
| Bearings | Sleeve |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Bolt Circle Dia. | 5-1/8", 5 1/8 in |
| Brand | Dayton |
| Capacitor | 5MFD @ 370VAC Run Capac. |
| Capacitor Required | DMD2MDV4 |
| Cross Reference | 4KA32, 3LU75 |
| Current Stock | 42 |
| Duty Cycle | Continuous |
| Efficiency | 61% |
| Enclosure Type | OAO (Open Air Over) |
| Frame | 48YZ |
| Full Load Amps | 4.7, 4.2 |
| HP | 1/4 |
| Hz | 60, 60 Hz |
| Includes | Split Rings to Increase. |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Direct Drive Blower Mot. |
| Length Less Shaft | 5 3/16 in |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring/Stud |
| Motor Service Factor | 1.00 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 5-3/16" |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting | Ring/Stud |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Mpn | 4M096 |
| Nameplate RPM | 1,075 |
| No. of Speeds | 3 |
| Nominal Efficiency | 61.00% |
| Number of Shafts | 3 |
| Number of Speeds | 3 |
| Overall Length | 9 3/16 in, 9-3/16" |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 4 3/4 in |
| Rotation | Reversible |
| RPM | 1075 |
| RPM Range | 1,001-1,100 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Flatted |
| Shaft Length | 4", 4 in |
| Ship Weight | 12 lbs. |
| SKU | ZO-G2819792 |
| Standards | UL Recognized (E37403),. |
| Stud Size | 8-32 NC 2A Thread x 1 5. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735330012 |
| Voltage | 115 |
| Volts | 115 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B007I9UZ60 | 89.06 | 1 | In Stock | 2 | DAYTON | | 89.06 @ 1 |
 | Zoro | G2819792 | 122.99 | 1 | 352 | | Dayton | 7.5 | 122.99 @ 1 |
 | sustainablesupply.com | C1561237 | 124.67 | 1 | In Stock | | Dayton | 10.25 | 124.67 @ 1 |
| emotorpro.com | 4M096 | 140.64 | 1 | In Stock | | Dayton | 12.0 | 140.64 @ 1 |
 | simsupply.com | ZO-G2819792 | 142.73 | 1 | 42 | | Dayton | | 142.73 @ 1 |
| grainger.ca | GGE4M096 | 143.3103947 | 1 | In Stock | | DAYTON | 11.34 | 143.3103947 @ 1 |
 | Raptor Supplies | AD8TEJ | 153.74736 | 1 | In Stock | | DAYTON | | 153.74736 @ 1 |
