Dayton 4M097

B001GBRWPS

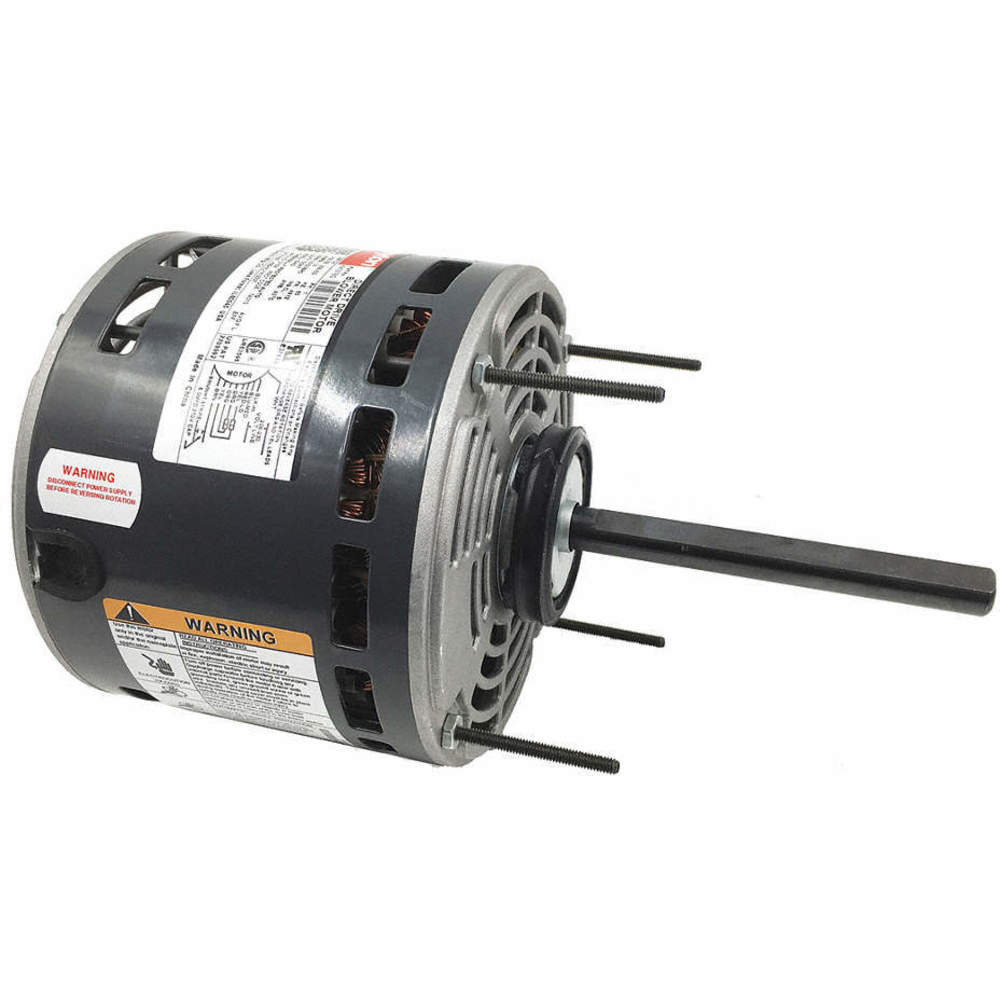

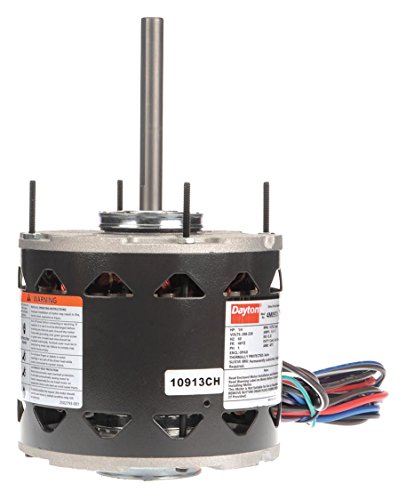

Dayton 4M097 Motor, 1/4hp, D/D Blower

Dayton 4M097 Motor, 1/4hp, D/D Blowerzoom

Attributes

Key Value
Amps1.5
BearingsSleeve
Body Dia.5-5/8"
Bolt Circle Dia.5-1/8"
Capacitor5MFD @ 370VAC Run Capac.
Capacitor RequiredDMD2MDV4
Cross Reference4KA33, 3LU76
Duty CycleContinuous
Efficiency57.4%
Enclosure TypeOAO (Open Air Over)
Frame48YZ
Full Load Amps1.5 to 1.7
HP1/4
Hz60
IncludesSplit Rings to Increase.
Ins. ClassB
Insulation ClassB
ItemDirect Drive Blower Mot.
Length Less Shaft5 11/16 in
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionAll Angle
Motor Mounting TypeStud
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationCW/CCW
Motor Shell Length5-11/16"
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingRing/Stud
Nameplate RPM1,075
No. of Speeds3
Nominal Efficiency57.40%
Number of Shafts3
Number of Speeds3
Overall Length9-11/16"
Phase1
Product TypePSC (Permanent Split Ca.
Resilient Ring Dia.2 1/4 in
Ring to Ring Center5 1/4 in
RotationReversible
RPM1075
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2" Flatted
Shaft Length4", 4 in
Ship Weight11 lbs.
StandardsUL Recognized (E37403),.
Stud Size8-32 NC 2A Thread x 1 5.
Thermal ProtectionAutomatic
Voltage208 - 230
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caGGE4M097133.453949221In StockDAYTON12.0133.45394922 @ 1
thumbzoomemotorpro.com4M097168.241In StockDayton11.0168.24 @ 1
thumbzoomRaptor SuppliesAD8TEK231.0456331In StockDAYTON231.045633 @ 1
