- mpn4M223
- brandname: Dayton
- manufacturername: Dayton

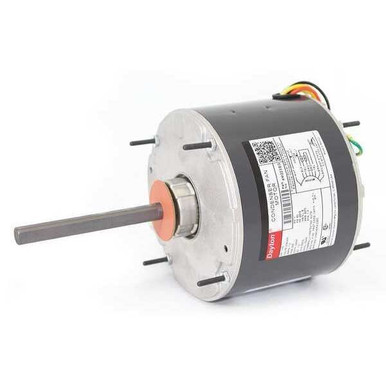

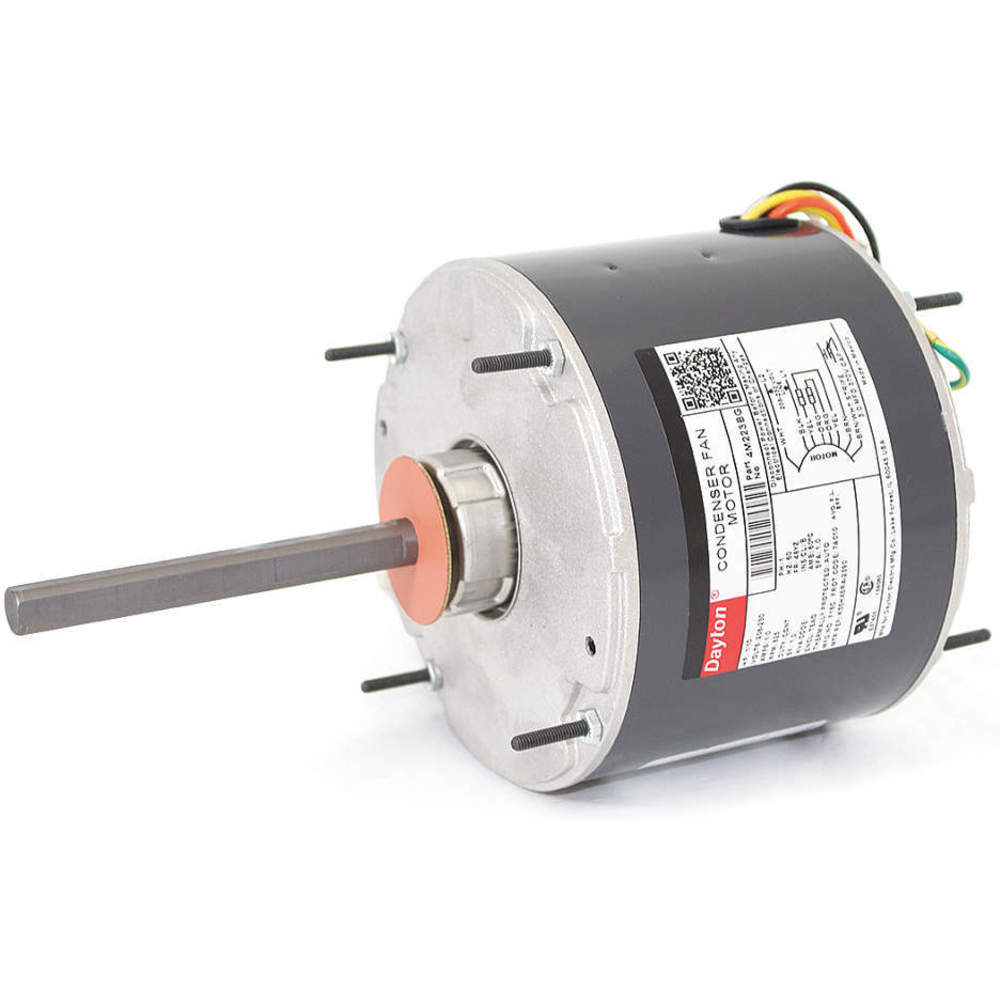

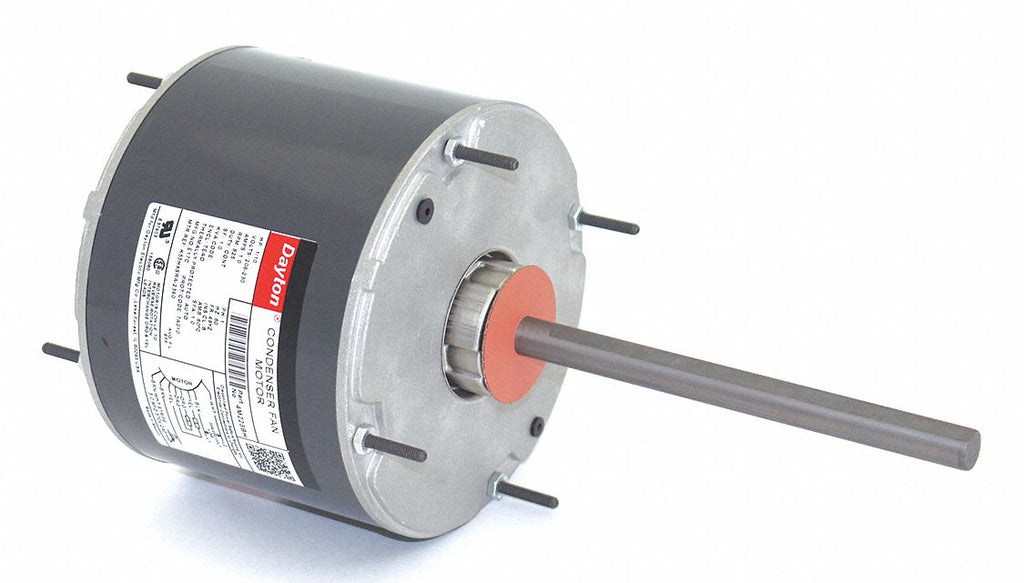

Dayton 1/10 HP Condenser Fan Motor,Permanent Split Capacitor,825 Nameplate RPM,208-230 Voltage,Frame 48YZ
- Brand: CAI - DAYTON
- PartNumber: 4M223
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 1.0 |
| Bearings | Ball |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Bolt Circle Dia. | 5-1/8", 5 1/8 in |
| Brand | Dayton |
| Capacitor | 5MFD @ 370VAC Run Capac. |
| Capacitor Required | 2MDV2, GGE2MDW2 |
| Current Stock | 22 |
| Duty Cycle | Continuous |
| Efficiency | 48.5% |
| Enclosure Type | TEAO (Totally Enclosed . |
| Features | Reversing Plug, Totally. |
| Frame | 48YZ |
| Full Load Amps | 1.00, 1.1 to 1.2 |
| HP | 1/10 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Condenser Fan Motor |
| Lead Length | 30", 30 in |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 4 3/8 in, 4 7/8 in |
| Max. Ambient Temp. | 60 Degrees C |
| Maximum Ambient Tempera. | 60? C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Totally Enclosed Air-Ov. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1.00 |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 4-3/8" |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Mounting | Stud |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Mpn | 4M223 |
| Nameplate RPM | 825 |
| No. of Speeds | 1 |
| Nominal Efficiency | 48.50% |
| Number of Speeds | 1 |
| Overall Length | 9 3/8 in, 9-3/8", 10-7/. |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Resilient Ring Dia. | 2 1/4 in |
| Rotation | Reversible |
| RPM | 825 |
| RPM Range | 0-1,000 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Double Flatted |
| Shaft Length | 5", 6 in |
| Ship Weight | 12 lbs. |
| SKU | ZO-G3089904 |
| Standards | UL Recognized (E47479),. |
| Stud Quantity | 4 |
| Stud Size | 3/4", 3/4 in |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735330395 |
| Voltage | 208 - 230, 208-230V AC |
| Volts | 208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B0085B22G6 | 113.08 | 1 | In Stock | 3 | DAYTON | | 113.08 @ 1 |
 | Zoro | G3089904 | 130.99 | 1 | 49 | | Dayton | 11.54 | 130.99 @ 1 |
| grainger.ca | GGE4M223 | 137.29346296 | 1 | In Stock | | DAYTON | 11.54 | 137.29346296 @ 1 |
 | simsupply.com | ZO-G3089904 | 155.12 | 1 | 22 | | Dayton | | 155.12 @ 1 |
 | sustainablesupply.com | C1561272 | 174.58 | 1 | In Stock | | Dayton | 11.54 | 174.58 @ 1 |
| emotorpro.com | 4M223 | 178.02 | 1 | In Stock | | Dayton | 12.0 | 178.02 @ 1 |
 | Raptor Supplies | AD8TGK | 215.3021715 | 1 | In Stock | | DAYTON | | 215.3021715 @ 1 |
