- mpn174536
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

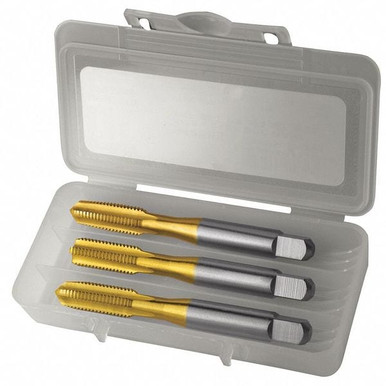

Tap Set Inch #5-40 Thread Size 3 pcs.
- Brand: Greenfield Threading
- PartNumber: 174536
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer | Bottoming/Plug/Taper |
| Class of Fit | 3B |
| Color | Grey |
| Current Stock | 3 |
| Cutting Direction | Right Hand |
| Diameter | 0.1250" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Includes | #5-40 UNC, Taper, Plug,. |
| International Shipping | No |
| Item | Tap Set |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel, . |
| Measurement System | Imperial |
| Mpn | 174536 |
| Number of Flutes | 3 |
| Number of Pieces | 3 |
| Overall Length | 1 15/16 in, 1.94 in, 1.. |
| Overall Length (Metric) | 49.28mm |
| Package Quantity | 1, 3 pieces per set |
| Package Type | Rose Plastic UniBox |
| Pitch Diameter Limit | H2 |
| Product Type | Hand Tap Set |
| Series | HTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 9/64 in |
| Shank Diameter | 0.1409 in |
| Shank End | Square |
| Shank Size | 0.141 in, 0.1410" |
| Shank Size (Metric) | 3.58mm |
| Shank Square Length | 0.1875" |
| Shank Square Length (Me. | 4.76mm |
| Shank Square Width | 0.1100" |
| Shank Square Width (Met. | 2.79mm |
| Size | #5-40 |
| SKU | ZO-G7685216 |
| Square Size | 0.1875 in L x 0.11 in W |
| Standards | USCTI 302 |
| Style | HTGP-3PC-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 302 |
| Tap Chamfer | Taper-Plug-Bottoming, B. |
| Tap Construction | Taper-Plug-Bottoming, S. |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap Set |
| Tap Interrupted Thread | No |
| Tap Limit | H2 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.33 in, 0.3300" |
| Tap Spiral Point | No |
| Tap Style | Straight Flute (Hand), . |
| Tap Thread Size | #5-40 |
| Tap Thread Type | UNC |
| Tap Truncated Threads | No |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 0.31 in, 0.3100", 5/16 . |
| Thread Length (Metric) | 7.87mm |
| Thread Limit | H2, 2B |
| Thread Pitch | 40 |
| Thread Size | #5-40 UNC, #5 |
| Thread Standard | UNC |
| Tool Size | #5-40 UNC |
| Type | Standard Straight Flute. |
| UPC | 093367745363 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6107561 | 24.97 | 3 | In Stock | | Greenfield Threading | | 24.97 @ 3 |
 | usmegastore.com | 174536 | 27.3 | 1 | In Stock | | Greenfield Threading | | 27.3 @ 1 |
 | Zoro | G7685216 | 27.49 | 1 | 15 | | Greenfield Threading | 0.03 | 27.49 @ 1 |
 | rshughes.com | 933677-45363 | 27.51 | 3 | In Stock | | Greenfield Industries | | 27.51 @ 3 |
 | Megadepot | 174536 | 31.7 | 1 | In Stock | | Greenfield Threading | | 31.7 @ 1 |
 | heavydutydepot.com | 174536 | 31.7 | 4 | In Stock | | Greenfield Threading | | 31.7 @ 4 |
 | simsupply.com | ZO-G7685216 | 36.45 | 1 | 3 | | Greenfield Threading | | 36.45 @ 1 |
 | sustainablesupply.com | C2782249 | 39.95 | 1 | In Stock | | Greenfield Threading | 0.03 | 39.95 @ 1 |
| grainger.ca | GNF174536 | 42.27094144 | 1 | In Stock | | GREENFIELD THREADING | 13.154 | 42.27094144 @ 1 |
