- mpn174541
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

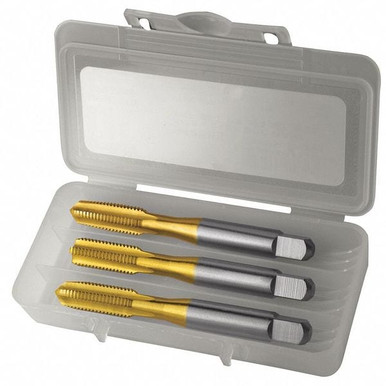

Tap Set,Inch,7/16"-20 Thread Size,3 pcs.
- Brand: Greenfield Threading
- PartNumber: 174541
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer | Bottoming/Plug/Taper |
| Class of Fit | 3B |
| Current Stock | 7 |
| Cutting Direction | Right Hand |
| Diameter | 0.4375" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right, Right Hand Cut |
| Includes | 7/16-20 UNF |
| International Shipping | No |
| Item | Tap Set |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel |
| Measurement System | Imperial |
| Mpn | 174541 |
| Number of Flutes | 4 |
| Number of Pieces | 3 |
| Overall Length | 3.16 in, 3 5/32 in, 3.1. |
| Overall Length (Metric) | 80.26mm |
| Package Quantity | 3 pieces per set |
| Package Type | Rose Plastic UniBox |
| Pitch Diameter Limit | H3 |
| Product Type | Hand Tap Set |
| Series | HTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 5/16 in |
| Shank Diameter | 0.323 in |
| Shank End | Square |
| Shank Size | 0.3230", 0.323 in |
| Shank Size (Metric) | 8.20mm |
| Shank Square Length | 0.4062" |
| Shank Square Length (Me. | 10.32mm |
| Shank Square Width | 0.2420" |
| Shank Square Width (Met. | 6.15mm |
| Size | 7/16-20 |
| SKU | ZO-G7685207 |
| Square Size | 0.4062 in L x 0.242 in W |
| Style | HTGP-3PC-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Blank Construction | USCTI Table 302 |
| Tap Chamfer | Taper-Plug-Bottoming, B. |
| Tap Construction | Taper-Plug-Bottoming, S. |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Ground Threads | Yes |
| Tap Grouping | Tap Set |
| Tap Interrupted Thread | No |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.57 in, 0.5700" |
| Tap Spiral Point | No |
| Tap Style | Straight Flute (Hand), . |
| Tap Thread Size | 7/16"-20 |
| Tap Thread Type | UNF |
| Tap Truncated Threads | No |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 0.88 in, 7/8 in, 0.8800" |
| Thread Length (Metric) | 22.35mm |
| Thread Limit | H3, 2B |
| Thread Pitch | 20 |
| Thread Size | 7/16-20 UNF, 7/16" |
| Thread Standard | UNF |
| Tool Size | 7/16-20 UNF |
| Type | Standard Straight Flute. |
| UPC | 093367745417 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6107566 | 48.6 | 2 | In Stock | | Greenfield Threading | | 48.6 @ 2 |
 | Megadepot | 174541 | 50.63 | 1 | In Stock | | Greenfield Threading | | 50.63 @ 1 |
 | heavydutydepot.com | 174541 | 50.63 | 2 | In Stock | | Greenfield Threading | | 50.63 @ 2 |
 | usmegastore.com | 174541 | 51.85 | 1 | In Stock | | Greenfield Threading | | 51.85 @ 1 |
 | rshughes.com | 933677-45417 | 53.58 | 3 | In Stock | | Greenfield Industries | | 53.58 @ 3 |
 | Zoro | G7685207 | 62.05 | 1 | 13 | | Greenfield Threading | 0.23 | 62.05 @ 1 |
 | simsupply.com | ZO-G7685207 | 72.09 | 1 | 7 | | Greenfield Threading | | 72.09 @ 1 |
