Hubbell DS420BK

mpnDS420BK
brandname: Hubbell
manufacturername: Hubbell

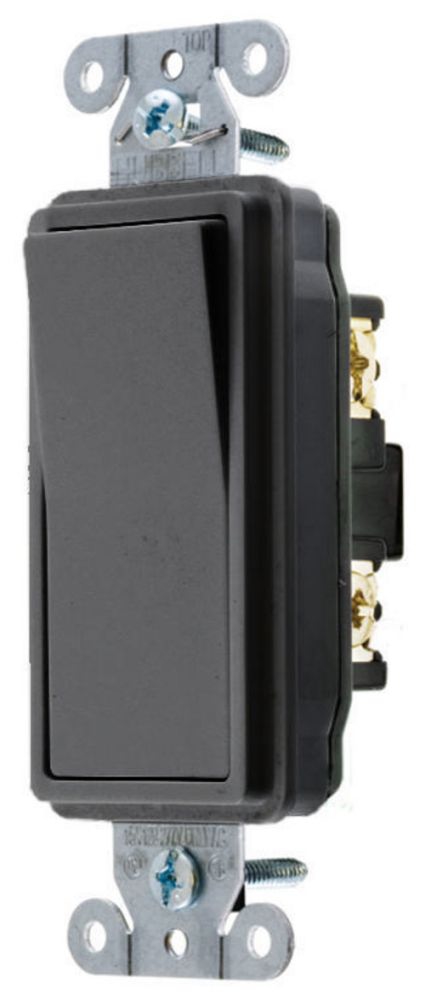

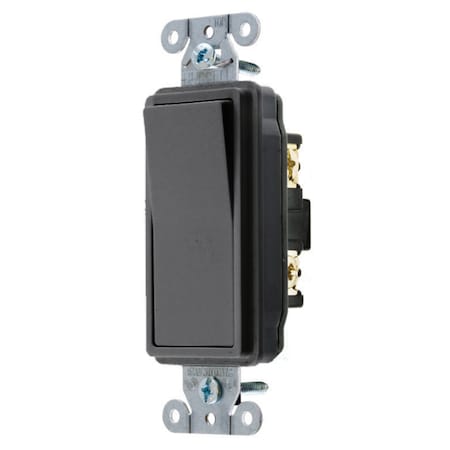

Hubbell DS420BK Decorator Switch, 4 Way, 20 amp, 120/277V, Black

Hubbell DS420BK Decorator Switch, 4 Way, 20 amp, 120/277V, Black

zoom

Brand: Hubbell
PartNumber: DS420BK
Model: DS420BK
Color: See Image
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: HUBBELL
Label: HUBBELL

Attributes

Key	Value
Action	DPDT
Amperage	20 A
Amperage Rating	20A
Approvals	CSA, UL
AWG Range	#14 AWG to #10 AWG
Carton Quantity	10
Color	Black
Color Family	Black
Connectivity	Back and Side Wired
Country of Origin	CN - China
Country of Origin (subj.	China
Current	20 A
Current / amperage rati.	20 A
Current Rating	20 A
Current rating	20 A
Dielectric Strength	Withstands 1500V AC min.
Dielectric strength	Withstands 1500V AC min.
Dimenions	4.28 in. x 1.73 in. x 1.
Dimensions	4.28 in x 1.73 in x 1.6.
ECCN	EAR99
Family Series	Hubbell Switches
Grade	Specification
Gross Weight	0.2 lbs
Grounding	Self
Height	1.67 in
HP @ 120 VAC	1 hp
HP @ 240 VAC	2 hp
Illuminated	No
Industry Standard(s)	UL Listed
Item	Four Way Style Line De.
Item Number	DS420BK
Length	4.28 in
Locking	No
Manufacturer	Hubbell
Manufacturer Part Number	DS420BK
Material	Thermoplastic
Max Temperature Rise	30C maximum at rated cu.
Mounting Screw Type	Thread Cleaning Captive
Net Weight	0 lbs
No. of Poles	2
Number of poles	Double Pole
Number Of Poles	Double Pole
Operating temperature	Maximum continuous 75C .
Operator	Rocker
Operator Color	Black
Rated Voltage	120-277V ac
Series	General Purpose
Standard	UL Listed
Style	Four Way
Switch Configuration	Four Way
Switch Style	Rocker Switch
Switch type	Four Way
Temp. Rise	30?C maximum at rated c.
Temperature	-40-167 ?F
Type	Rocker/Decorator
UNSPSC	39122226
Voltage	120-277 VAC, 120 VAC, 2.
Voltage Rating	120-277 VAC
Width (in)	1.73
Wire Range	#14 to #10 AWG Solid an.
Wire size	#14 AWG to #10 AWG
Wire Size	#14 AWG to #10 AWG
Wiring	Back and Side Wired

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	gordonelectricsupply.com	DS420BK	19.07	1	In Stock		HUBBELL		19.07 @ 1
	cbtcompany.com	DS420BK	20.54	1	In Stock		Hubbell Wiring Device-Kellems		20.54 @ 1
	kirbyrisk.com	2344197	46.39	1	In Stock		Hubbell		46.39 @ 1
	Onlinecomponents.com	DS420BK	51.47	1	In Stock		Hubbell		51.47 @ 1
	Graybar	25203228	66.8976	1	In Stock		Hubbell Wiring Device - Kellems		66.8976 @ 1
	Zoro	G500701770	67.29	1	In Stock	64	Hubbell Wiring Device-Kellems		67.29 @ 1
	MRO Supply	1017427	67.29	1	In Stock		Hubbell Wiring		67.29 @ 1
	Galco	DS420BK-HBBL	69.26	1	In Stock		Hubbell	0.2	69.26 @ 1
	Newark	93Y4101	92.79	1	In Stock		HUBBELL WIRING DEVICES		92.79 @ 1
