Infineon IRAMY20UP60B

B06XFQ5T67

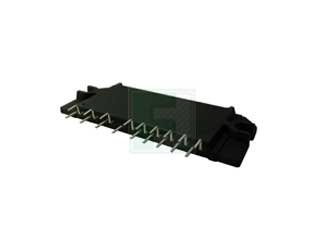

INFINEON IRAMY20UP60B IRAMY20UP60B Series 20 A 600 V Integrated Power Hybrid IC w/ Int. Shunt Resistor - 1 item(s)

INFINEON IRAMY20UP60B IRAMY20UP60B Series 20 A 600 V Integrated Power Hybrid IC w/ Int. Shunt Resistor - 1 item(s)zoom

Attributes

Key Value
Alternate Mfr Part Numb.6880751
ApplicationAppliance Motor Driver
CategoryDiscrete Semiconductor .
Collector Current20 A
Collector to Emitter Vo.600 V
Configuration3 Phase
Current20 A
DescriptionIC PWR HYBRID 600V 20A .
Detailed DescriptionPower Driver Module IGB.
Digi-Key Part NumberIRAMY20UP60B-ND
Dimensions78 x 6 x 31.6 mm
Frequency20 KHz
Height1.244" (31.6mm)
Input Bias Current200 ?A
Input Voltage20 + 0.3 V
Length3.07 in
ManufacturerInfineon Technologies
Manufacturer Product Nu.IRAMY20UP60B
Maximum Junction Temper.150 ?C
Maximum Operating Tempe.+150 ?C
MfrInfineon Technologies
Minimum Operating Tempe.-40 ?C
Mounting TypeThrough Hole
Number of Pins23
Operating Voltage Range12 to 20 V
PackageTube
Package / Case22-PowerSIP Module, 18 .
Package TypeSIP-3
Power Dissipation4.5 W
Product StatusObsolete
SeriesiMOTION Series, iMOTION?
Supply Current165 ?A
Supply Voltage20 V
Temperature Operating R.-40 to +150 ?C
TypeIGBT
Voltage600 V
Voltage - Isolation2000Vrms
Voltage, Breakdown, Col.600 V
Voltage, Input, High Le.20 + 0.3 V
Voltage, Input, Low Lev.20 + 0.3 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics794283223.8817Infineon23.88 @ 1
thumbzoomDigi-Key198294126.84124912Infineon Technologies26.84 @ 12
us.rs-online.com7001693369.831126Infineon69.83 @ 1
