Leeson 108052.00

B00EPKXRCO

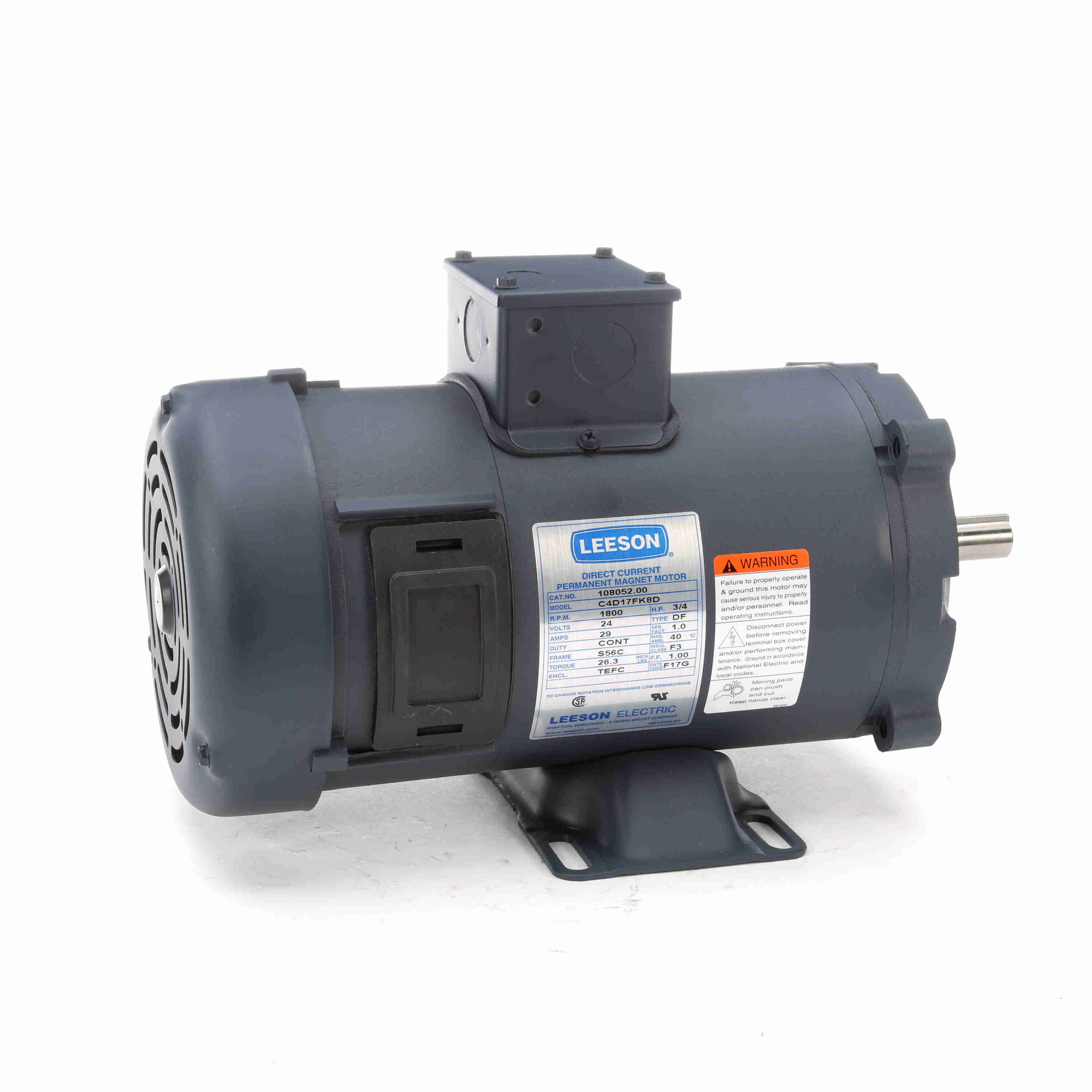

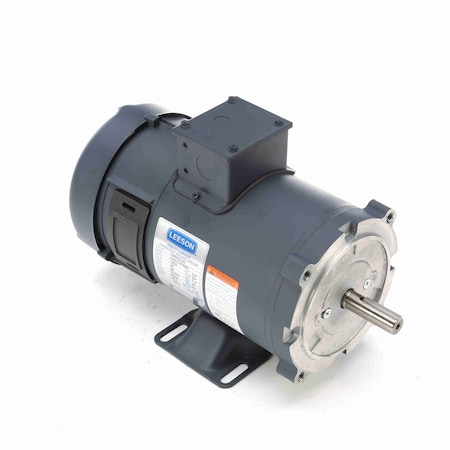

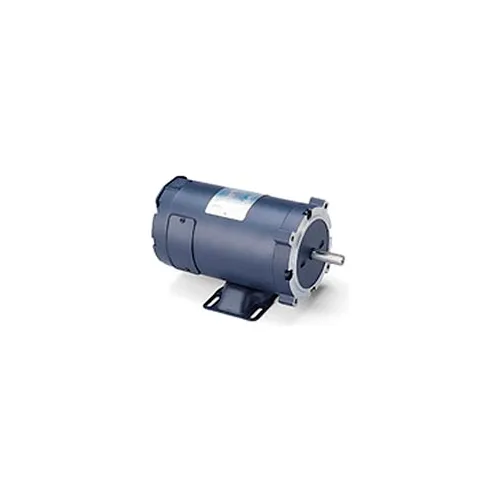

Leeson 108052.00 Low Voltage DC Motor, 56C Frame, C-Face Rigid Mounting, 3/4HP, 1800 RPM, 24V Voltage

Leeson 108052.00 Low Voltage DC Motor, 56C Frame, C-Face Rigid Mounting, 3/4HP, 1800 RPM, 24V Voltagezoom

Attributes

Key Value
Alternate Mfr Part Numb.C4D17FK8D
Amperage Rating29 A
Amps29
Armature Current29 A
Armature Voltage24 V
Base RPM1,800 RPM
Bearing TypeBall
CategoryElectric Motor
ConstructionRolled Steel
Current Rating29 A
Description:3/4HP.1800RPM.S56C.TEFC.
Dimensions12.82 in L x 6.5 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency77, 77.0%, 77 %
EnclosureTEFC
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight30.00
Family SeriesLeeson Motors
FL Amps29
FL Efficiency77
FrameS56C, 56C
Frame RemarksFOOTED
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4, 0.75
Insulation ClassClass F, F
Insulation TypeClass F
Item ConditionFACTORY NEW
Item Number108052.00
KW0.56
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number108052.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:108052.00
Motor Shell Length5.47"
MountingFoot Mount, C-Face/Rigi.
mountingC-face w/ rigid base
Mounting TypeBolt-On/C-Face/Footed/R.
Net Weight30 lbs
Nominal Voltage24 V
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.82"
Part Number108052.00
PhaseC, DC
Power Rating0.56 kW
Product TypeDC, General Purpose
RotationReversible
RPM1700 - 1800, 1800
Service Factor1, 1.0
Shaft Diameter0.625", 0.625
Shaft Length2.06, 2.06"
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight27 lbs.
Special FeaturesService Factor - 1, Per.
Speed1800 RPM
Speed (RPM)1800
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Torque Rating26.3 in-lb
UPC Code691720006757
UPC:691720006757
Voltage24, 24V
Volts24, 24VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0773TTC6H374.151In Stock2Leeson Electric374.15 @ 1
thumbzoomelectricmotorwholesale.com108052388.01In StockLEESON388.0 @ 1
thumbzoomMRO Supply2525300540.351In StockLeeson540.35 @ 1
thumbzoomcshincorporated.com108052.00547.341In StockLeeson27.0547.34 @ 1
thumbzoomapexindustrialautomation.com108052.00592.311407Leeson592.31 @ 1
thumbzoomemotorpro.com108052.00608.031In StockLeeson27.0608.03 @ 1
thumbzoomDealers Electric108052.00712.251In StockLeeson27.0712.25 @ 1
thumbzoomGlobal IndustrialWBB236804735.01In StockLeeson735.0 @ 1
us.rs-online.com72239072779.31In StockLeeson779.3 @ 1
thumbzoommotorsandcontrol.comLE-108052.00782.35178Leeson Electric30.0782.35 @ 1
thumbzoomGalco108052.00-LEES788.061In StockLeeson30.0788.06 @ 1
thumbzoomWalker Industrial108052-00886.671In Stock17Leeson886.67 @ 1
thumbzoomRaptor SuppliesAJ2PWB947.3563711In StockLEESON947.356371 @ 1
kscdirect.comLEE 108052.00960.71In StockLEESON ELECTRIC CORPORATION960.7 @ 1
thumbzoomcbtcompany.com108052.00969.271In StockLeeson Electric969.27 @ 1
thumbzoompumpproducts.com108052.001012.311In StockLeeson1012.31 @ 1
thumbzoomZoroG4091273741400.01In Stock12Leeson1400.0 @ 1
