Leeson 112378.00

B00EPO223A

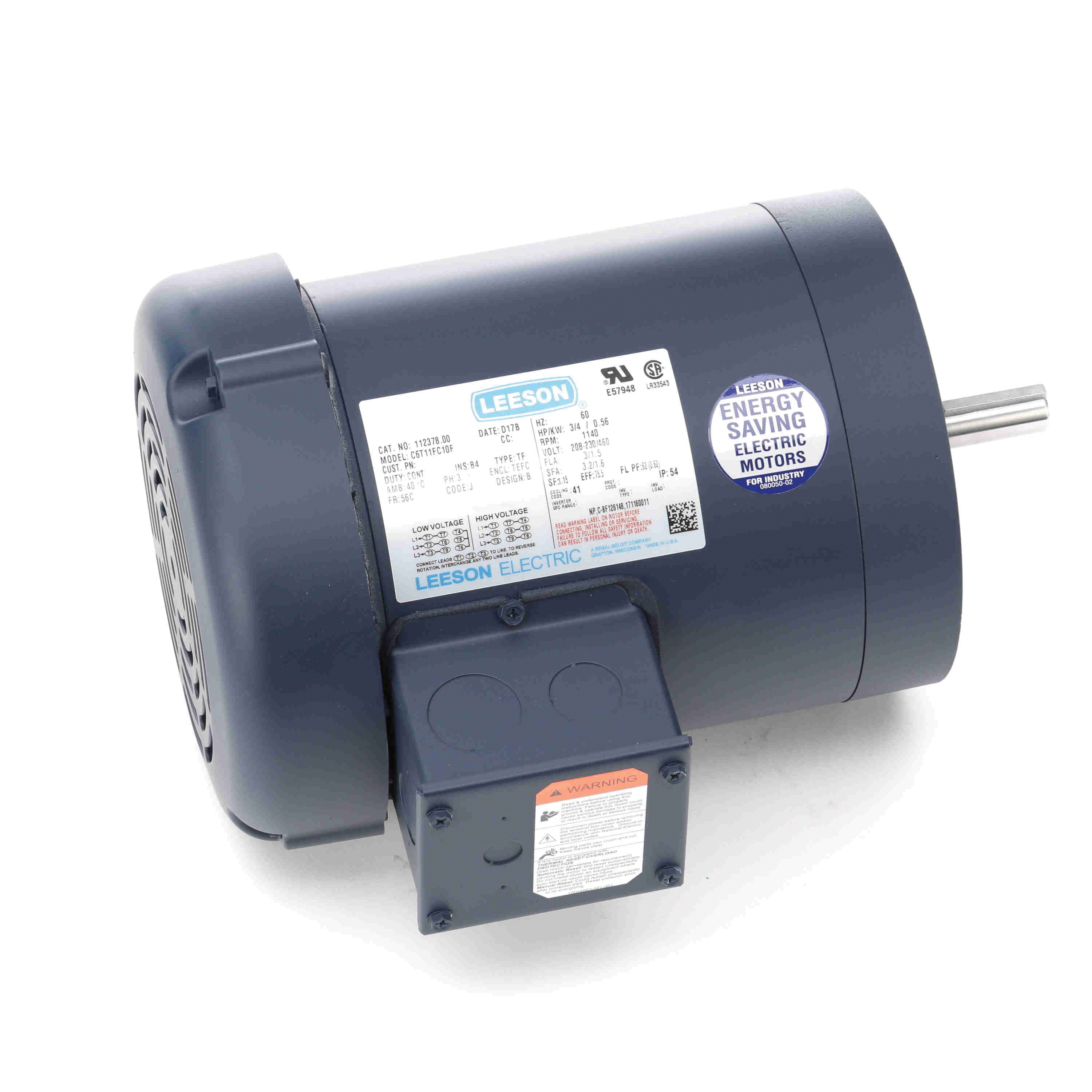

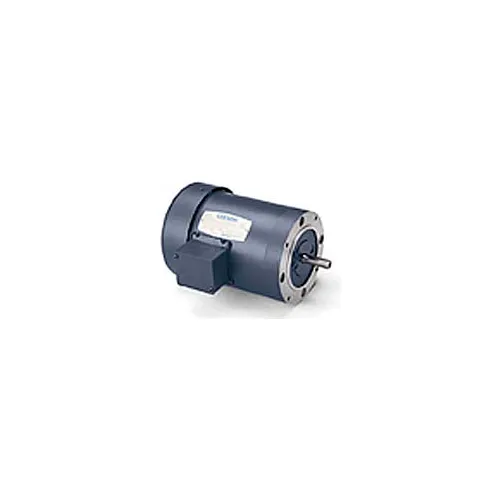

Leeson 112378.00 General Purpose C Face Motor, 3 Phase, 56 C Frame, Round Mounting, 3/4HP, 1200 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 112378.00 General Purpose C Face Motor, 3 Phase, 56 C Frame, Round Mounting, 3/4HP, 1200 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T11FC10F
Amperage Rating3/1.5 A
Amps3.0/1.5
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC6T11FC10
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
CT Speed Range2:1
Current Rating3 ; 1.5 A
Description:Obsolete, replaced by 0.
Dimensions11.48 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency75.5, 75.5 %, 75.5%
Efficiency %75.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight29.00
Family SeriesLeeson Motors, Three Ph.
FL Amps3/1.5
FL Efficiency75.5
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Full Load Amps3.0/1.5
Gross Weight0 lbs
Hertz60
Horsepower0.75 HP, 3/4 hp
Horsepower Rating0.75 HP
HP3/4, 0.75
Hz60
Ins. ClassB
Insulation ClassB, Class B
Insulation TypeClass B
ItemGeneral Purpose Motors
Item ConditionFACTORY NEW
Item Number112378.00
KW0.56
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number112378.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:112378.00
Model NumberC6T11FC10
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignNEMA 56
Motor Shaft RotationReversible
Motor Shell Length6.00"
Motor Thermal ProtectionNone
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
Nameplate RPM1,140
NEMA DesignB
NEMA Frame56C
Net Weight29 lbs
No. of Speeds1
Nominal Efficiency75.5 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11.48", 11.81 ", 11 1/2.
Part Number112378.00
Phase3 ph, 3, Three, 3 Phase
Product SeriesThree Phase C Face
Product TypeGeneral Purpose, Three .
Removable BasePermanently Lubricated .
RotationReversible
RPM1140 RPM, 1140, 1100 - .
RPM Range4000
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight32 lbs.
Special FeaturesService Factor - 1.15
Speed1140 RPM
Speed (RPM)1140
StandardsUL Recognized, CSA, UL
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720010754
UPC:691720010754
Usable @ 208VYes
Voltage208-230/460V, 208-230/4.
Voltage Compatibility208-230/460V AC
Volts208/230/460, 208-230/460
Weight32 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com112378356.01In StockLEESON356.0 @ 1
AmazonTPB0773V7V8P465.271In Stock3Leeson Electric465.27 @ 1
thumbzoomapexindustrialautomation.com112378.00526.7314Leeson526.73 @ 1
thumbzoomemotorpro.com112378.00553.431In StockLeeson32.0553.43 @ 1
thumbzoomGlobal IndustrialWBB222465632.01In Stock17Leeson632.0 @ 1
thumbzoomDealers Electric112378.00633.391In StockLeeson32.0633.39 @ 1
thumbzoomPurvis112378LEE673.21In StockLEESON673.2 @ 1
thumbzoomZoroG907101302684.731In StockLeeson31.2684.73 @ 1
us.rs-online.com72239381693.181In StockLeeson693.18 @ 1
thumbzoommotorsandcontrol.comLE-112378.00695.73124Leeson Electric29.0695.73 @ 1
thumbzoomGalco112378.00-LEES700.951In StockLeeson29.0700.95 @ 1
kscdirect.comLEE 112378.00727.091In StockLEESON ELECTRIC CORPORATION727.09 @ 1
thumbzoomcbtcompany.com112378.00742.271In StockLeeson Electric742.27 @ 1
thumbzoomWalker Industrial112378-00788.51In Stock10Leeson788.5 @ 1
thumbzoompumpproducts.com112378.00943.791In StockLeeson943.79 @ 1
