Leeson 120042.00

B00EP31KQQ

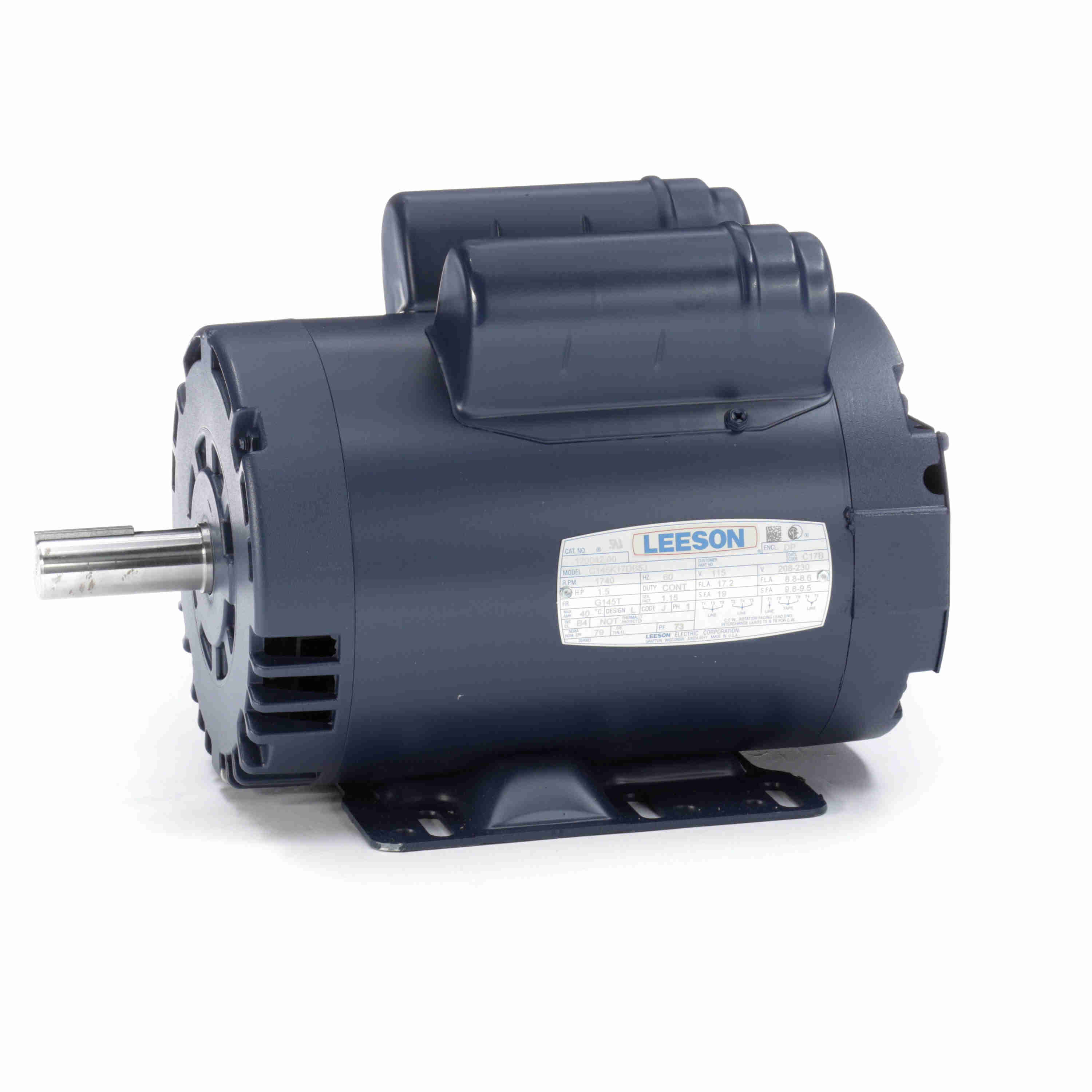

Leeson 120042.00 General Purpose ODP Motor, 1 Phase, G145T Frame, Rigid Mounting, 1.5HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 120042.00 General Purpose ODP Motor, 1 Phase, G145T Frame, Rigid Mounting, 1.5HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating17.2/8.8 to 8.6 A
Application TypeAir Compressor Motors, .
ApprovalsCSA, UL
Bearing TypeBall
Class/GroupC145K17DB5
CompositionSteel
Description:..1 1/2HP..1740RPM.145..
Dimensions12.28 in L x 8.14 in H
EnclosureDrip Proof, DP
Enclosure TypeDP
Family SeriesLeeson Motors, General .
Frame145T, 145
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower1-1/2 hp, 1.5 hp
HP1.5
Hz60
Insulation ClassClass B
Item Number120042.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number120042.00
MaterialRolled Steel
MFG Part #:120042.00
Model NumberC145K17DB5
Motor TypeCapacitor Start
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame145T
Net Weight38 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Overall Length12.28 "
Overload ProtectionNone
Phase1, 1 ph
Product SeriesGeneral Purpose
RotationSelective CCW
RPM1,800 RPM, 1700 - 1800
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size0.88 in Dia x 2.25 in L
Special FeaturesCapacitor Start Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720014882
Voltage115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com120042351.01In StockLEESON351.0 @ 1
thumbzoomGalco120042.00-LEES689.851In StockLeeson38.0689.85 @ 1
thumbzoomWalker Industrial120042-00747.331In Stock10Leeson747.33 @ 1
thumbzoomRaptor SuppliesAJ2REU792.30171151In StockLEESON792.3017115 @ 1
kscdirect.comLEE 120042.00809.731In StockLEESON ELECTRIC CORPORATION809.73 @ 1
