Leeson 120043.00

B00EP2WYJO

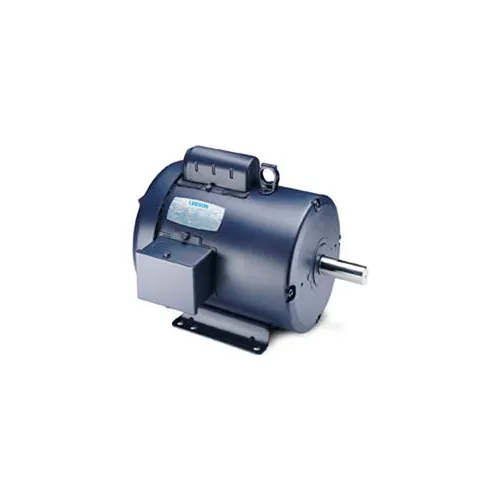

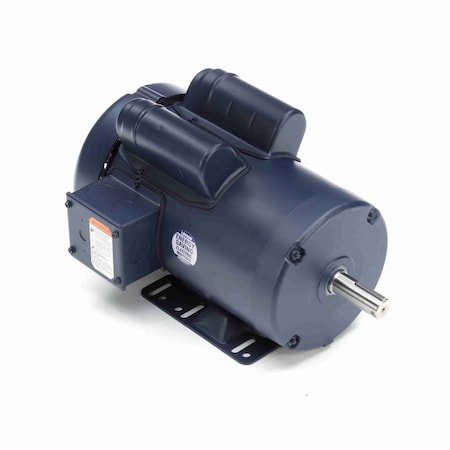

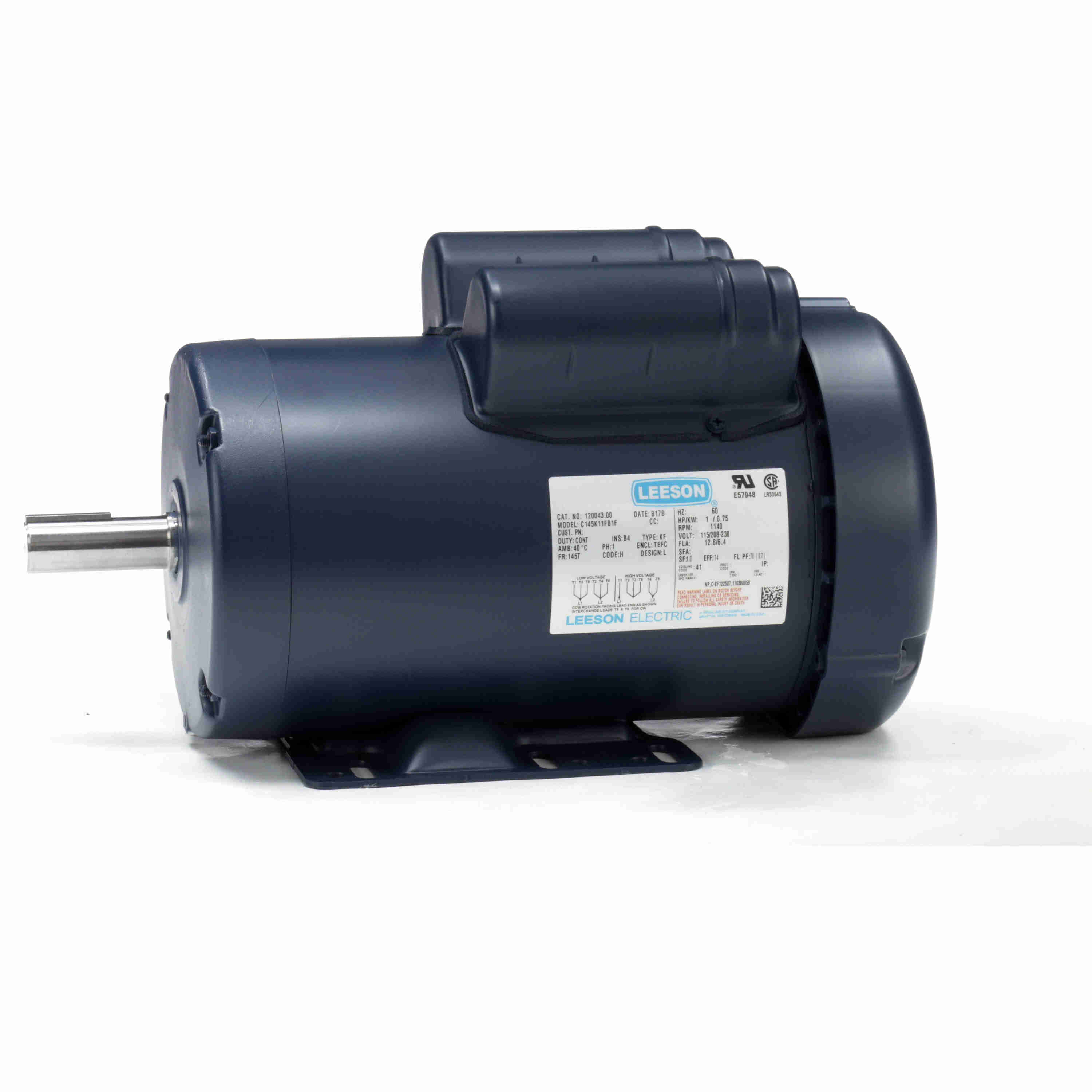

Leeson 120043.00 General Purpose TEFC Motor, 1 Phase, 145T Frame, Rigid Mounting, 1HP, 1200 RPM, 115/230V Voltage, 60Hz Fequency

Leeson 120043.00 General Purpose TEFC Motor, 1 Phase, 145T Frame, Rigid Mounting, 1HP, 1200 RPM, 115/230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amps12.8/6.2-6.4
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
Class/GroupC145K11FB1
CompositionSteel
ConstructionRolled Steel
Description:1HP..1140RPM.145.TEFC.1.
Dimensions14-1/4 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency74, 74.0%
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight49.00
Family SeriesLeeson Motors, General .
FL Amps12.8/6.4
FL Efficiency74
Frame145T, 140
Frame MaterialRolled Steel
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F, B
Item Number120043.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number120043.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:120043.00
Model NumberC145K11FB1
Motor Shell Length8.50"
Motor TypeCapacitor Start
MountingFoot Mount, Rigid Base
Mounting TypeRigid, Foot Mount, Rigid
NEMA Frame145T
Net Weight49 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length14.43", 14.25 "
Overload ProtectionNone
Part Number120043.00
Phase1
Product SeriesGeneral Purpose
Product TypeCapacitor Start/Capacit.
RotationSelective CCW, Reversib.
RPM1,200 RPM, 1140, 1100 -.
Service Factor1, 1.0
Shaft DiameterUL;CSA, 0.875, 0.875"
Shaft Length2.25", 2.25
Shaft Size6/7 in Dia
Ship Weight52 lbs.
Special Features6-Pole, L NEMA Design
Speed1140 rpm
Speed (RPM)1140
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720014899
Voltage110-120V, 208V, 230V, 1.
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com120043584.01In StockLEESON584.0 @ 1
AmazonTPB0773V4V3S768.741In Stock3Leeson Electric768.74 @ 1
thumbzoomMRO Supply2526149842.521In StockLeeson842.52 @ 1
thumbzoomemotorpro.com120043.00919.741In StockLeeson52.0919.74 @ 1
thumbzoomGlobal IndustrialWBB221936979.01In StockLeeson979.0 @ 1
thumbzoomZoroG24718991093.9911Leeson1093.99 @ 1
us.rs-online.com733972771133.911In StockLeeson1133.91 @ 1
thumbzoommotorsandcontrol.comLE-120043.001155.64111Leeson Electric49.01155.64 @ 1
thumbzoomGalco120043.00-LEES1164.551In StockLeeson49.01164.55 @ 1
kscdirect.comLEE 120043.001207.731In StockLEESON ELECTRIC CORPORATION1207.73 @ 1
thumbzoomWalker Industrial120043-001309.731In Stock17Leeson1309.73 @ 1
thumbzoompumpproducts.com120043.001567.681In StockLeeson1567.68 @ 1
thumbzoomRaptor SuppliesAJ2REV1648.7169661In StockLEESON1648.716966 @ 1
