Marathon Electric GT1311

B0196KWGJW

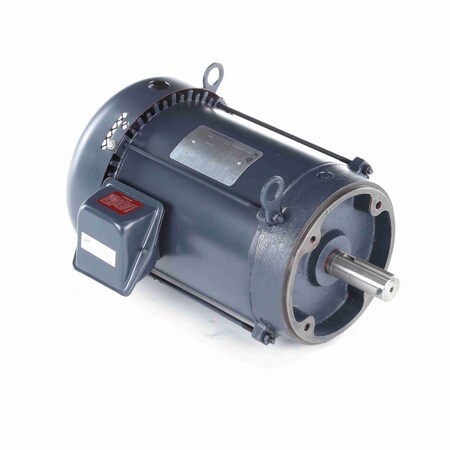

Marathon GT1311 213TC Frame 213TTFBA6079 TEFC General Purpose Motor, 3 Phase, C-Face, Ball Bearing, 3 hp, 1200 RPM, 1 Speed, 208-230/460 VAC

Marathon GT1311 213TC Frame 213TTFBA6079 TEFC General Purpose Motor, 3 Phase, C-Face, Ball Bearing, 3 hp, 1200 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Amps8.6/4.3 A
BearingsBall
Country of Origin (subj.China
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency89.5%
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Frame213TC
frame material:Rolled Steel
frame size:213TC
frequency rating:60 Hz
full load current:8.60 / 4.30 A
full load efficiency:89.50 %
HP3
Hz60
Insulation ClassF
insulation class:F
ip rating:43
Manufacturer Model #213TTFBA6079
Maximum Ambient Tempera.40? C
motor horsepower:3.00 hp, 3 hp
motor phase:3 ph
motor supply voltage:230/460 V
Mounting OrientationHorizontal
Mounting TypeC-Face
mounting type:Footless/C-Face Flange
Number of Speeds1
Overall Length19.53"
overall length (c-dimen.19.53 in
Phase3
Product Type3 Phase
RotationReversible
RPM1185
Service Factor1.15
service factor:1.15
Shaft Diameter1-3/8"
shaft diameter:1.38 in
Shaft Length3.38"
Ship Weight160 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
Volts230/460
weight:160 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com04738862714.941In StockMarathon Electric714.94 @ 1
emotorpro.comGT1311762.841In StockMarathon160.0762.84 @ 1
thumbzoomelectricmotorwholesale.comGT1311801.01In StockMARATHON801.0 @ 1
thumbzoomZoroG70287661320.551In StockMarathon1320.55 @ 1
