Marathon GT3409

B084Q1V82Z

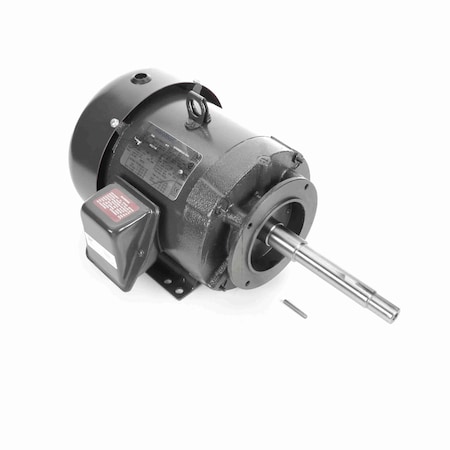

3 hp 3600 RPM 145JP Frame 230/460V TEFC Marathon Close Coupled Pump Motor # GT3409

3 hp 3600 RPM 145JP Frame 230/460V TEFC Marathon Close Coupled Pump Motor # GT3409zoom

Attributes

Key Value
Amps8/4 A
BearingsBall
Duty CycleContinuous
Efficiency86.5%
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Frame182JP
frame material:Rolled Steel
frame size:182JP
frequency rating:60 Hz
full load efficiency:86.50 %
Gross Weight0 lbs
HP3
Hz60
Insulation ClassF
ip rating:43
Manufacturer Model #182TTFB6012
Maximum Ambient Tempera.40? C
motor category:Close Coupled Pump Motor
motor horsepower:3.00 hp, 3 hp
motor phase:3 ph
motor supply voltage:230/460 V
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Footed/C-Face Flange
Number of Speeds1
Overall Length19.06"
overall length (c-dimen.19.07 in
Phase3
Product Type3 Phase
RotationReversible
RPM3400 - 3600, 3505
Service Factor1.15
service factor:1.15
Shaft Diameter7/8", 1", 1-1/4"
shaft diameter:0.88 in
Shaft Length7.35"
Ship Weight90 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Voltage230/460
Volts230/460
weight:90 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
emotorpro.comGT3409612.8613Marathon90.0612.86 @ 3
thumbzoomapexindustrialautomation.comGT3409635.46123Marathon635.46 @ 3
thumbzoomMRO Supply2303488655.6313Marathon Electric655.63 @ 3
thumbzoomelectricmotorwholesale.comGT3409721.013MARATHON721.0 @ 3
thumbzoomGalcoGT3409-MARA751.013Marathon Electric751.0 @ 3
thumbzoomZoroG7037750787.6313Marathon787.63 @ 3
thumbzoommotionindustries.com05788916941.7313Marathon Electric941.73 @ 3
