Marathon Electric GT1404

mpnGT1404
brandname: Marathon Motor
manufacturername: Marathon Motor

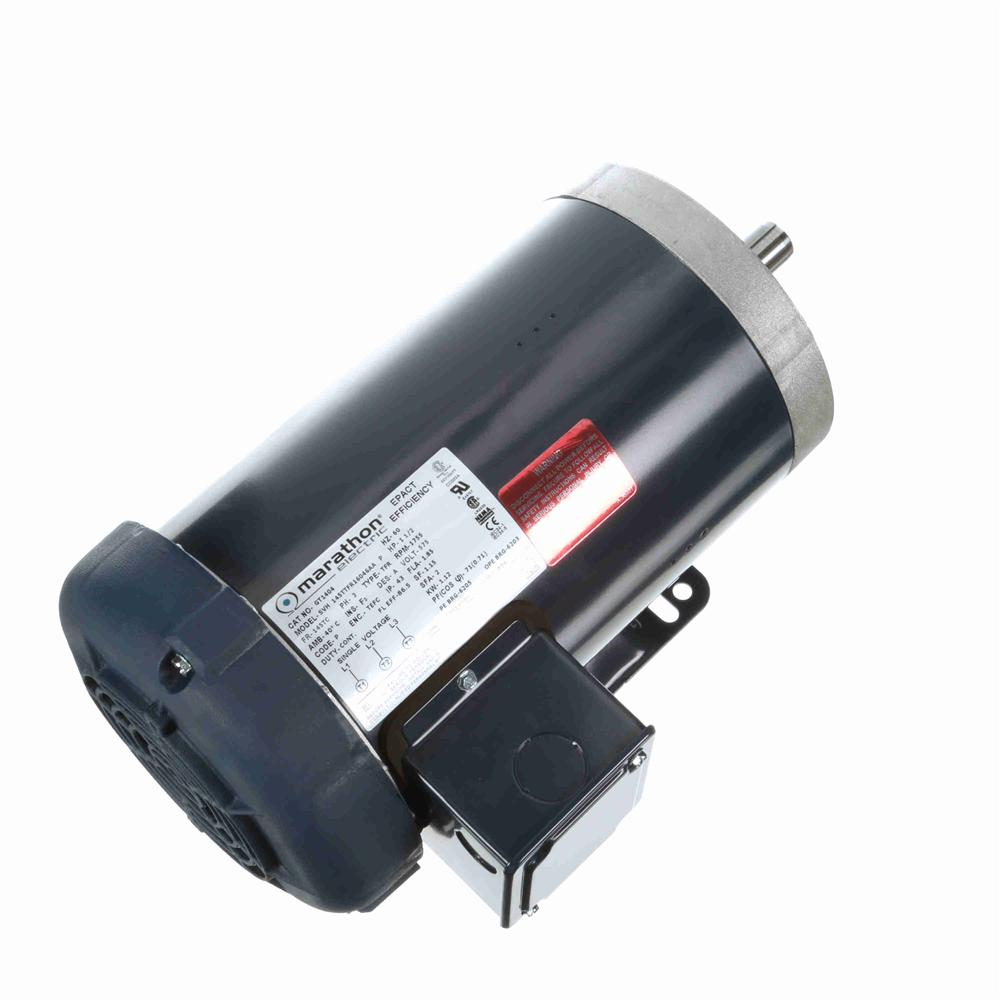

Marathon GT1404 145TC Frame 145TTFR16046 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 1-1/2 hp, 1800 rpm, 1 Speed, 575 VAC

Marathon GT1404 145TC Frame 145TTFR16046 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 1-1/2 hp, 1800 rpm, 1 Speed, 575 VAC

zoom

Brand: Marathon Electric
PartNumber: GT1404
Model: MGT1404
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	145TTFR16046
Amps	1.85
Bearings	Ball
CC Number	CC003A
Duty Cycle	Continuous
Efficiency	0.865
Enclosure Material	Steel
Enclosure Type	TEFC (Totally Enclosed .
Frame	145TC
Full Load Amps	1.9
HP	1-1/2
Hz	60
Ins. Class	F
Insulation Class	F
Inverter Rated	No
Item	General Purpose Motor
Length Less Shaft	12-1/4"
Manufacturer Model #	145TTFR16046
Manufacturers Warranty .	1 yr.
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Rolled Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face/Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Shell Length	9.06"
Motor Thermal Protection	None
Mounting	Base
Mounting Orientation	Horizontal
Nameplate RPM	1,755
No. of Speeds	1
Nominal Efficiency	86.5%
Number of Speeds	1
Overall Length	14-3/8", 14.37"
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	1755
Service Factor	1.15
Shaft Dia.	7/8"
Shaft Diameter	7/8"
Shaft Length	2.12", 2-1/4"
Ship Weight	68 lbs.
Standards	UL Recognized (E49747),.
Voltage	575
Volts	575

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	GT1404	349.45	1	In Stock		Marathon	68.0	349.45 @ 1
	midwestapplianceparts.com	GT1404-MT-P	359.31	1	In Stock		Marathon		359.31 @ 1
	grainger.ca	AOSGT1404	443.89569154	1	In Stock		MARATHON MOTORS	44.0	443.89569154 @ 1
	us.rs-online.com	72649961	746.26	1	In Stock		Marathon Motors		746.26 @ 1
