- mpn5KCR49WN0295U
- brandname: Marathon Motors
- manufacturername: Marathon Motors

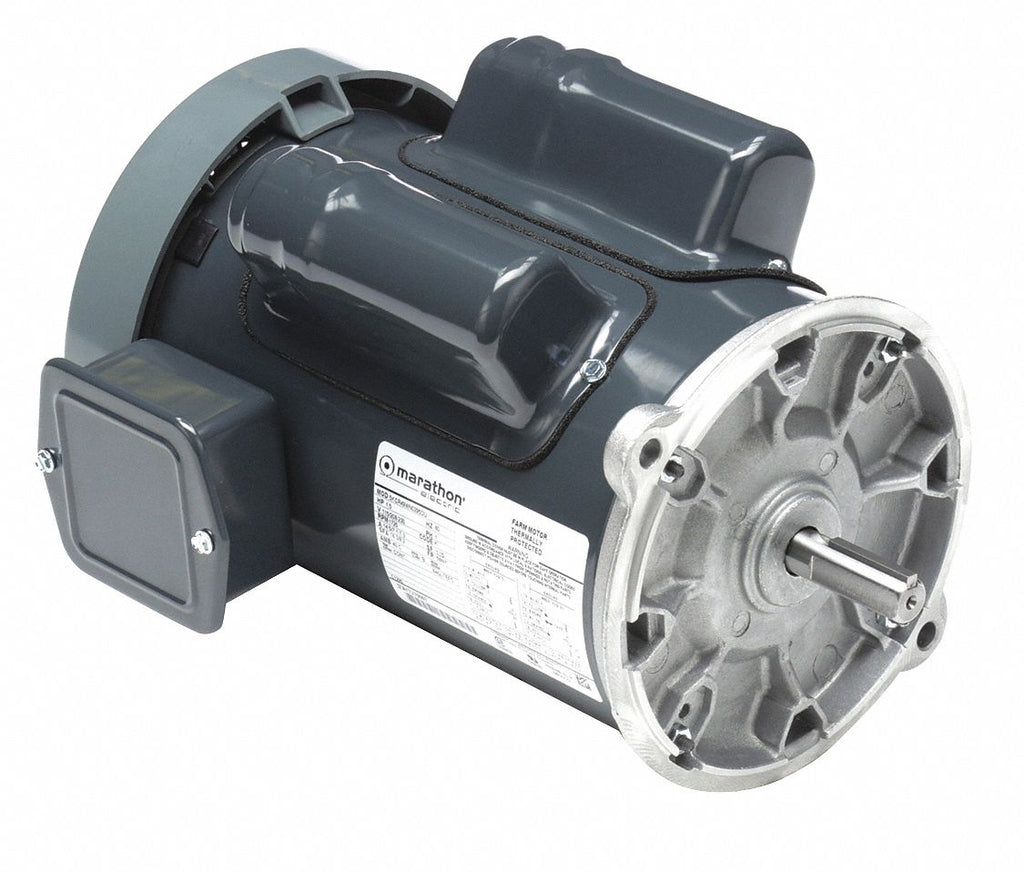

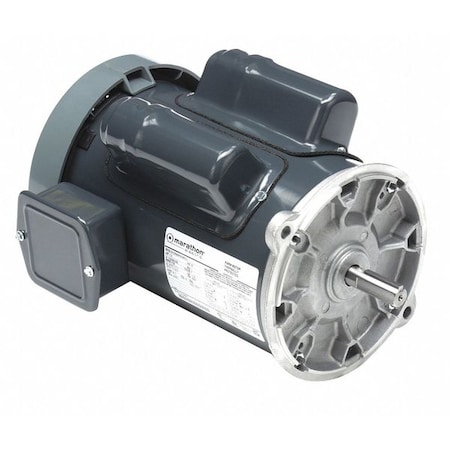

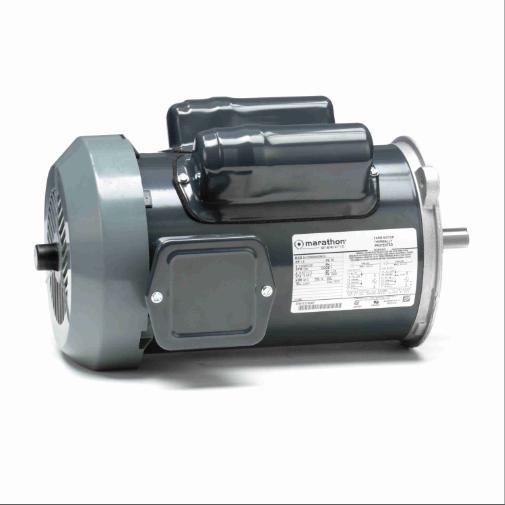

Auger Drive Motor, 1-1/2 HP, 115/208-230V
- Brand: Marathon Industries
- PartNumber: 5KCR49WN0295U
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Capacitor Required | Yes |
| Classification | Farm Duty Agriculture A. |
| Composition | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 73.6 % |
| Enclosure | TEFC, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 56NY |
| Frame Material | Steel |
| Frame Remarks | N/R |
| Full Load Amps | 14.5/7.3-7.1 |
| Gross Weight | 0 lbs |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Item | Auger Drive Motor |
| Item - Farm Duty Motors | Auger Drive Motor |
| Item Condition | Factory New |
| Item Number | 5KCR49WN0295U |
| Kilowatts | 1.1 kW |
| Length Less Shaft | 12 5/8 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | C1295 |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Mounting Type | Round |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56NY |
| Net Weight | 44 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 73.6 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Overall Length | 14 1/2 in |
| Phase | 1, Single |
| RPM | 1800, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Standards | CSA Certified, UL Recog. |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC |
| Voltage (AC) | 110-120 VAC, 208 VAC, 3. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/208-230 |
| Weight | 44 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5KCR49WN0295U-MARA | 168.51 | 1 | In Stock | | Marathon Electric | 44.0 | 168.51 @ 1 |
 | Zoro | G4241015 | 290.95 | 1 | In Stock | 25 | Marathon Motors | 44.0 | 290.95 @ 1 |
 | Dealers Electric | 5KCR49WN0295U | 495.0 | 1 | In Stock | | Marathon Electric | 44.0 | 495.0 @ 1 |
 | sustainablesupply.com | C2903421 | 630.89 | 1 | In Stock | | Marathon | 44.8 | 630.89 @ 1 |
 | Raptor Supplies | AJ2MDB | 853.87887 | 1 | In Stock | | MARATHON MOTORS | | 853.87887 @ 1 |
