Molex 903250008

mpn0903250008
brandname: Molex
manufacturername: Molex

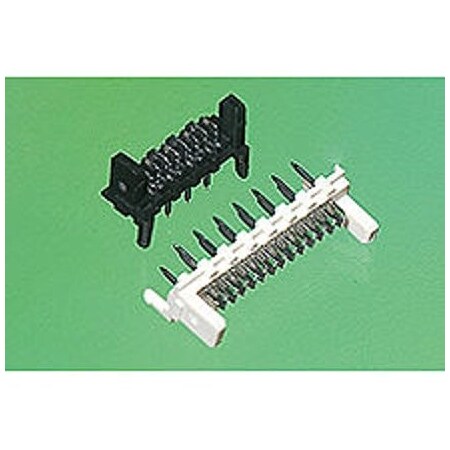

903250008, Conn Picoflex HDR 8 POS 1.27mm Solder ST Thru-Hole Picoflex Bag (100 Items)

903250008, Conn Picoflex HDR 8 POS 1.27mm Solder ST Thru-Hole Picoflex Bag (100 Items)

zoom

Brand: Molex
PartNumber: 903250008
Model: 903250008
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	090325
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	0.130" (3.30mm)
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating	1.2 A
Current Rating (Amps)	1.2A
Description	CONN HEADER VERT 8POS 1.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM9237-ND
Fastening Type	Push-Pull
Features	Board Lock
Flammability Rating	UL 94V-0
Hole Center to Center	1.27 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polybutylene Terephthal.
Manufacturer	Molex
Manufacturer Product Nu.	0903250008
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	230?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole
Number of Contacts	8
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Part Status	Active
Pitch - Mating	0.050" (1.27mm)
Product Status	Active
Row Spacing - Mating	-
Series	Picoflex PF-50 90325
Shrouding	Shrouded - 2 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Verical	903250008	0.1683	151	1679		Molex		0.1683 @ 151
	Onlinecomponents.com	90325-0008	0.182	1	5968		MOLEX / WALDOM		0.182 @ 1
	Rutronik	COREC697	0.1834	5000	545		Molex		0.1834 @ 5000
	Waldom	MOLEX 90325-0008	0.192	277	2715		MOLEX		0.192 @ 277
	Freelance Electronics	0903250008	0.29084	1	221		MOLEX		0.29084 @ 1
	Digi-Key	404181	0.43	1	13811		Molex		0.43 @ 1
	Newark	94M3173	0.457	1	218		MOLEX		0.457 @ 1
	Component Electronics	299-1815	0.46	1	100		Molex		0.46 @ 1
	RS Delivers	324-8126	0.606	1	2330		Molex		0.606 @ 1
	TME	MX-90325-0008	0.809	2	1552		MOLEX		0.809 @ 2
	Zoro	G305891164	91.41	1	218		Molex		91.41 @ 1
