- mpnFGH80N60FD2TU
- brandname: ON Semiconductor
- manufacturername: ON Semiconductor

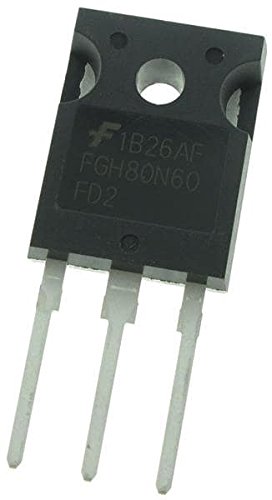

IGBT Transistors 600V 80A Field Stop (5 pieces)
- PartNumber: FGH80N60FD2TU
- PackageQuantity: 5
- Manufacturer: Fairchild Semiconductor
- Label: Fairchild Semiconductor
Attributes
| Key | Value |
|---|
| Base Product Number | FGH80 |
| Category | Discrete Semiconductor . |
| Current - Collector (Ic. | 80A, 80 A |
| Current - Collector Pul. | 160A, 160 A |
| Gate Charge | 120 nC, 120nC |
| IGBT Type | Field Stop |
| Input Type | Standard |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer Part Number | FGH80N60FD2TU |
| Manufacturer Standard L. | 5 Weeks |
| Mfr | ON Semiconductor, onsemi |
| Mounting Type | Through Hole |
| Operating Temperature | -55, -55?C ~ 150?C (TJ) |
| Package | Tube |
| Package / Case | TO-247-3 |
| Packaging | Tube |
| Part Status | Active |
| Power - Max | 290W, 290 W |
| Product Status | Last Time Buy |
| Reverse Recovery Time (. | 61 ns, 61ns |
| Series | - |
| Standard Package | 450 |
| Supplier Device Package | TO-247-3 |
| Switching Energy | 1mJ (on), 520?J (off), . |
| Td (on/off) @ 25?C | 21ns/126ns |
| Test Condition | 400V, 40A, 10Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Voltage - Collector Emi. | 600V, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | FGH80N60FD2TU | 2.242 | 150 | 450 | | On Semi | | 2.242 @ 150 |
| RS Delivers | 759-9295P | 3.876 | 1 | 50 | | onsemi | | 3.876 @ 50 |
| Hotenda | H1848371 | 4.013 | 1 | 441 | | Fairchild Semiconductor | | 4.013 @ 50 |
 | Radwell | FGH80N60FD2TU | 4.16 | 450 | 50 | | FAIRCHILD SEMICONDUCTOR | 1.0 | 4.16 @ 450 |
| Newark | 23AC5255 | 4.19 | 30 | 50 | | ONSEMI | | 4.19 @ 50 |
| Digi-Key | 1830672 | 5.6916 | 1 | 50 | | onsemi | | 5.6916 @ 50 |
