- mpnDV14-206B-3K
- brandname: PANDUIT
- manufacturername: PANDUIT

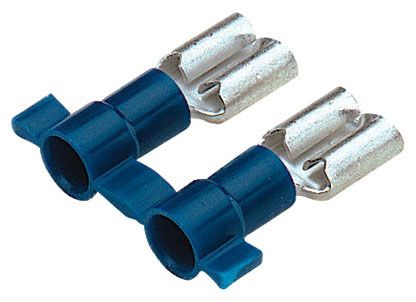

Panduit DV14-206B-3K Reel Smart System Disco Female Disconnects, Vinyl Barrel Insulated, Funnel Entry, 16 - 14 AWG Wire Range, Blue, 0.187/0.205 x 0.020" Tab Size, 0.170" Max Insulation, 0.25" Width, 0.11" Height, 0.77" Length (3000 Pieces Per Reel)


- Brand: Panduit
- PartNumber: DV14-206B-3K
- Model: DV14-206B-3K
- Color: Blue
- Size: 0.187/0.205 x 0.020
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Approvals | CSA, UL |
Barrel Type | Funnel |
Base Product Number | DV14 |
Category | Connectors, Interconnec. |
Color | Blue |
Contact Finish | Tin |
Contact Material | Brass |
Country of Origin (subj. | Mexico |
Family Series | Panduit Terminals, Reel. |
Features | Butted Seam, Serrated T. |
Gender | Female |
Gross Weight | 0 lbs |
Insulated | Insulated |
Insulation | Non-Mating End Insulated |
Insulation Diameter | 0.170" (4.32mm) |
Insulation Material | Vinyl |
Item Number | DV14-206B-3K |
Length - Overall | 0.770" (19.56mm) |
Manufacturer | Panduit |
Manufacturer Part Number | DV14-206B-3K |
Material | Brass |
Max Temp | 221 ?F |
Mfr | Panduit Corp |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0 lbs |
Package | Tape & Reel (TR) |
Package Quantity | 3,000 |
Plating Material | Tin |
Product Series | Reel Smart System |
Product Status | Active |
RoHS Compliant | Yes |
Series | Disco? |
Tab Length | - |
Tab Size | 0.187 x 0.02 ", 0.205 x. |
Tab Thickness | 0.020" (0.51mm) |
Tab Width | 0.187" (4.75mm), 0.205". |
Terminal Material | Brass |
Terminal Type | Disconnect - Female, St. |
Termination | Crimp |
Volts | 600 V |
Wire Gauge | 14-16 AWG |
Wire Size | 16-14 AWG |
Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
Wire Strip Length | 0.281 " |
