Schneider Electric HDA260301

B00CONKIF8

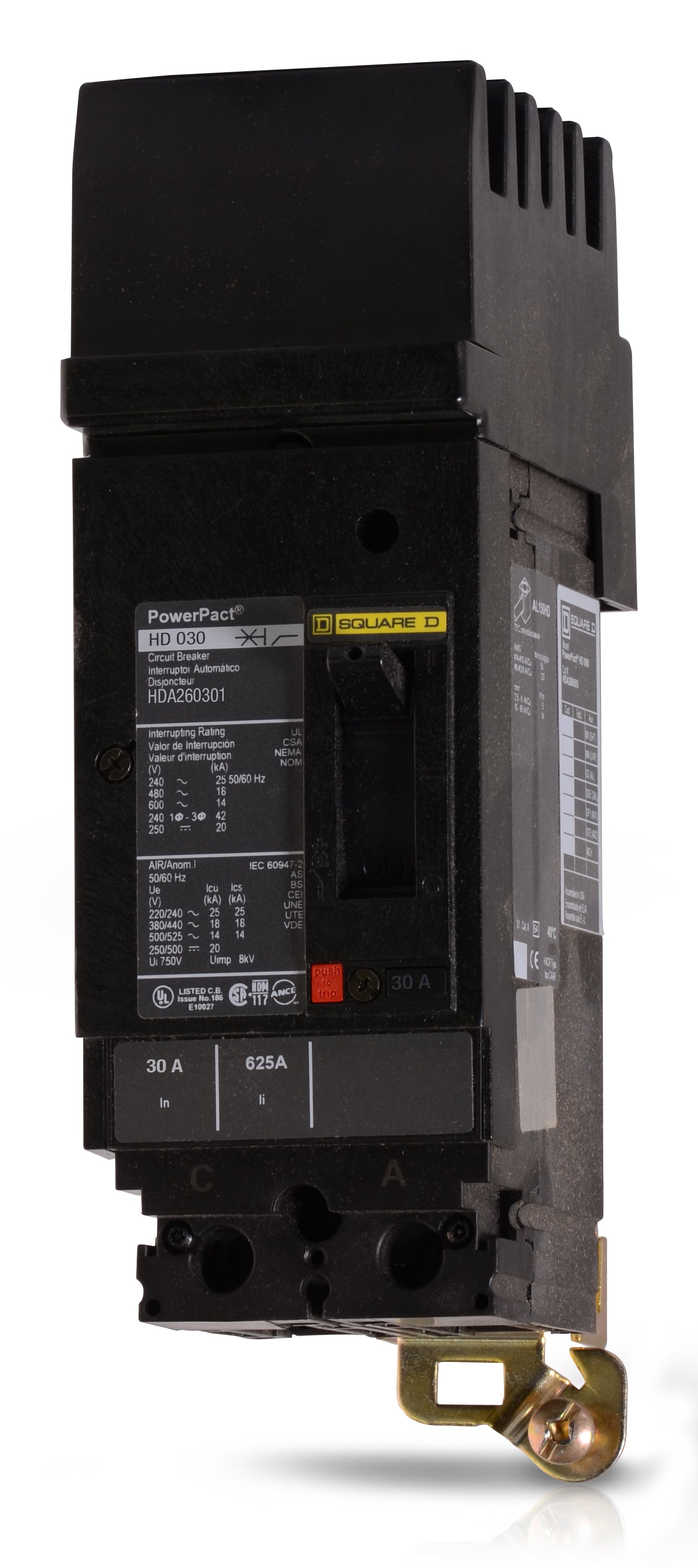

SCHNEIDER ELECTRIC 600-VOLT 30-AMP HDA260301 Molded CASE Circuit Breaker 600V 30A

SCHNEIDER ELECTRIC 600-VOLT 30-AMP HDA260301 Molded CASE Circuit Breaker 600V 30Azoom

Attributes

Key Value
AC Voltage Rating690V AC
Amperage30
Amperage Rating30
Amps30 A
ApplicationHACR rated Applications.
ApprovalUL
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Catalog NumberHDA260301
Circuit Breaker Actuatortoggle
Circuit Breaker Mountin.I-Line Bracket
ColorBlack
Color FamilyBlack
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Country of OriginMexico, 00 - Unknown
Current Rating30-30A
Depth86 mm
DisplayHDA260301 Circuit break.
ECCNEAR99
FeaturesMercury Free; PVC Free
Frame SizeH
Frame TypeH
FunctionsLI - Long-Time and Inst.
Gtin785901651536
Height163 mm, 3 in., 6.42
High Amp Trip Setting750 A
Interrupt Rating14 kA, 25 kA at 220/240.
Interrupting Rating25kAIC at 240VAC, 18kAI.
ItemCircuit breaker,PowerPa.
Length16 mm, 4.8
Made in USANo
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Min. Wire Size14 AWG (Cu/Al)
Mounting TypeI-Line
MpnHDA260301
No. of Poles2
Number of Poles2
Phase1
Phase ConnectionAB
Poles2
ProtectionThermal Magnetic
Rated Voltage690V AC 50/60 Hz IEC 60.
SeriesPowerPact, HDA
StandardUL || CSA || NEMA || NO.
StandardsUL, CSA, NEMA, NOM, CE
Terminal ConnectionI-Line, Lug
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip TypeThermal Magnetic
UNSPSC39121616
UPC785901651536
Upc785901651536
Voltage600
Voltage Rating250 V DC-600 V AC
Warranty DescriptionContractual Warranty:18.
Width104 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellHDA260301560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
thumbzoomZoroG3979918584.661In Stock45Square D10.0584.66 @ 1
Newark19K9960649.031In StockSQUARE D BY SCHNEIDER ELECTRIC649.03 @ 1
Graybar25148869675.77441In StockSquare D (Schneider Electric)675.7744 @ 1
simplybreakers.comHDA260301734.991In StockSchneider Electric734.99 @ 1
thumbzoomsuperbreakers.comHDA2603011030.1116Square D1030.11 @ 1
thumbzoommostelectric.comHDA2603011052.911In StockSQUARE D/TELEMECANIQUE1052.91 @ 1
thumbzoomcrescentelectric.com5305531749.711In StockSquare D by Schneider Electric1749.71 @ 1
