HDA260302

B01MSW9ZJB

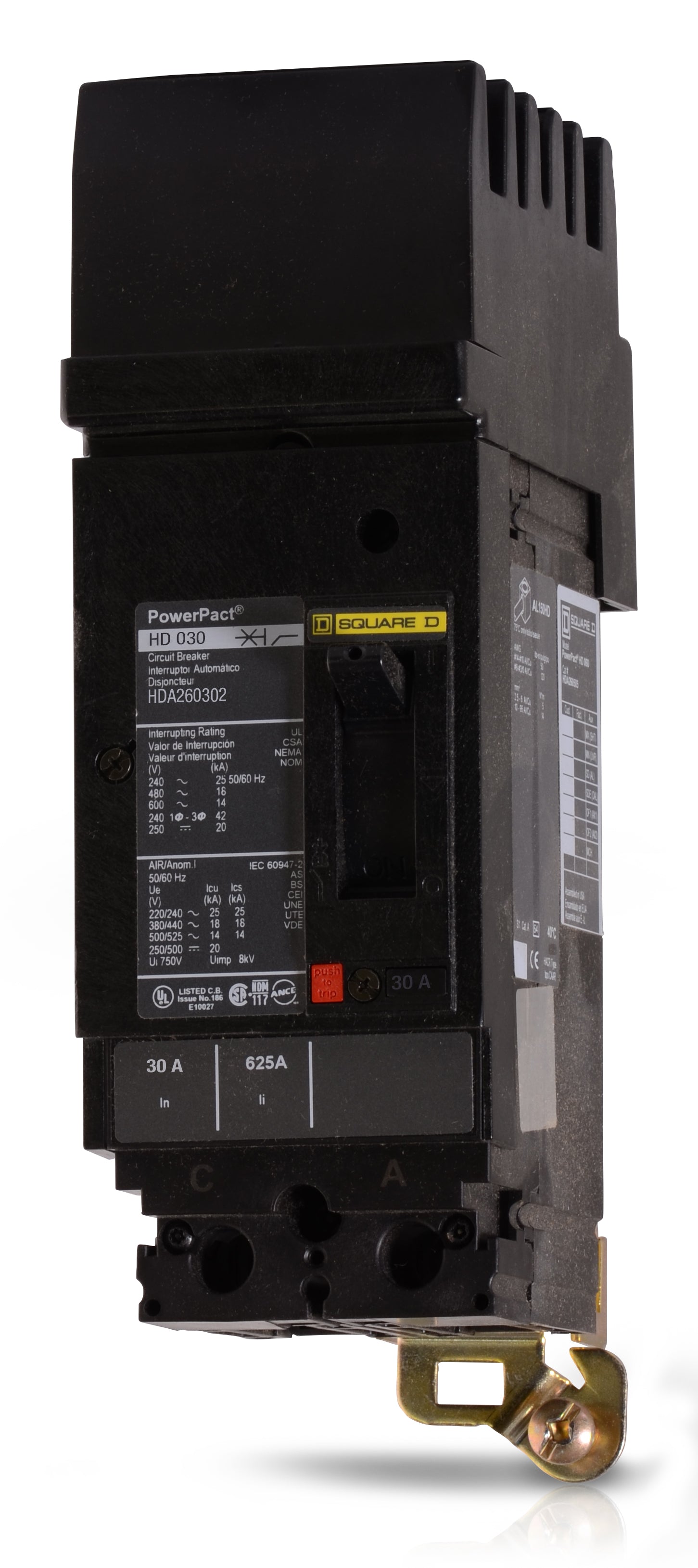

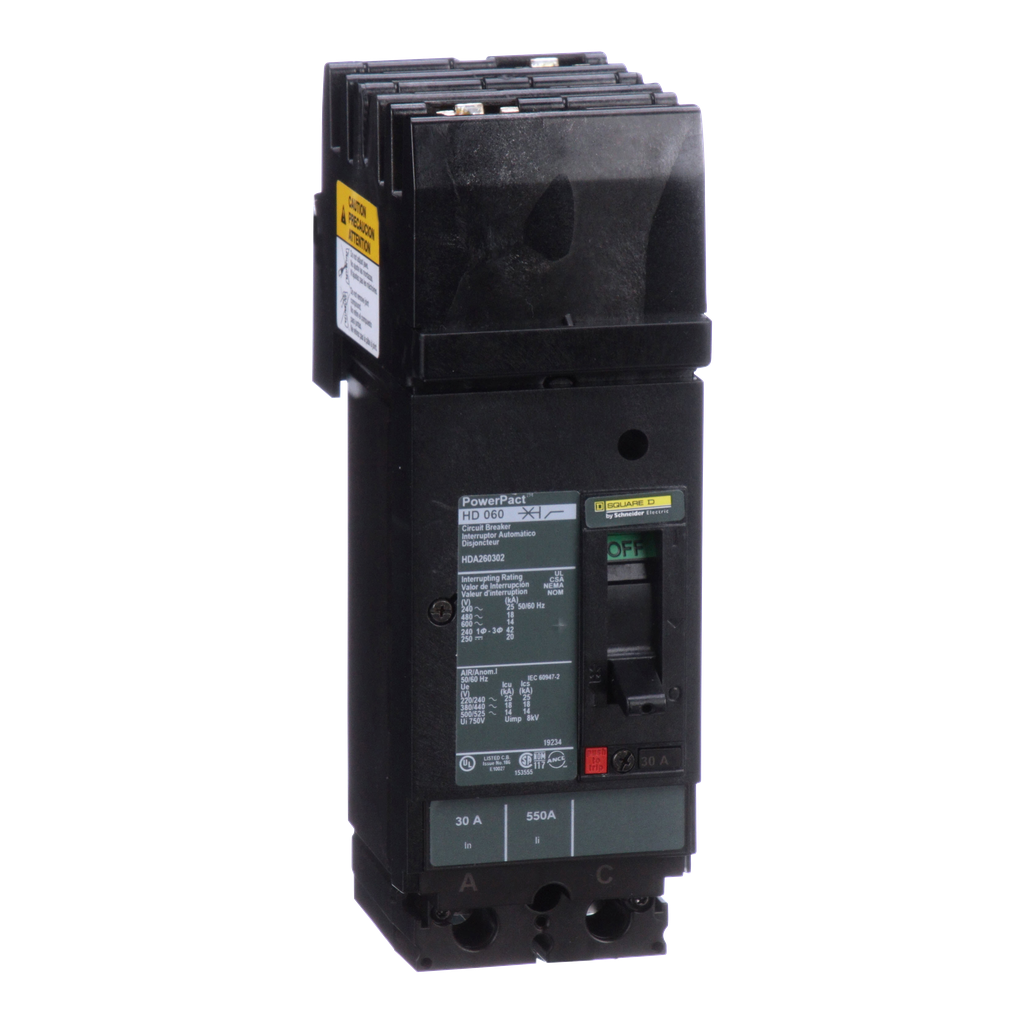

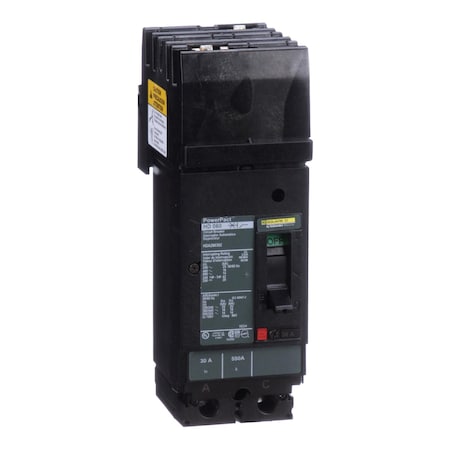

Square D I-Line HDA260302 HD 060 30A PowerPact Circuit Breaker HD060 30 Amp HACR

Square D I-Line HDA260302 HD 060 30A PowerPact Circuit Breaker HD060 30 Amp HACRzoom

Attributes

Key Value
[Ics] Rated Service Bre.25 kA 220/240 V AC 50/6.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating690V AC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage30
Amperage Rating30
Amps30 A
ApplicationHACR rated Applications.
ApprovalUL
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity25 kA 240 V AC 50/60 Hz.
Breaking Capacity CodeD
California Proposition .DINP, which is known to.
Catalog NumberHDA260302
China Rohs RegulationProduct out of China Ro.
Circuit Breaker Actuatortoggle
Circuit Breaker Applica.HACR rated
Circuit Breaker Mountin.I-Line Bracket
Circularity ProfileENVEOLI2206027EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConnectionAWG 14...AWG 3/0 ALUMIN.
Connection TypeI-Line Style Plug-In
Contactor TypeMagnetic
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginMX - Mexico, Mexico
Current Rating30 A, 30-30A
Depth86 mm
Device Applicationdistribution
DisplayHDA260302 Circuit break.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP2206027EN
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
FeaturesMercury Free; PVC Free
FrameD
Frame SizeH
Frame TypeH Frame, H, H-Frame
FunctionsLI - Long-Time and Inst.
Gtin785901416456
Height163 mm, 3 in., 6.42
High Amp Trip Setting750 A
Interrupt Rating14kA, 25kA@240VAC ; 18k.
Interrupting Rating25kAIC at 240VAC, 18kAI.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemCircuit breaker,PowerPa.
Item Typecircuit breaker
Length16 mm, 4.8 IN
Line Rated Current30-30 A
Local Signallingswitched off (OFF) 1 tr.
Made in USANo
Magnetic Hold Current350 A
Magnetic Tripping Curre.750-750 A
ManufacturerSchneider Electric
Max. AIR Rating25 kA
Max. Wire Size3/0 AWG (Cu/Al)
Mercury FreeYes
Min. Wire Size14 AWG (Cu/Al)
Mounting Height3 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting TypeI-Line
MpnHDA260302
Net Weight2.2 kg
Network Frequency50/60 Hz
No. of Poles2
Number of Poles2
Number Of Slots2 auxiliary switch OF p.
Operating Temperature40 A Degrees C
Phase1
Phase ConnectionAC
Poles2
Poles Description2P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.2t
ProtectionThermal Magnetic
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesPowerPact H-Frame Serie.
Special FeaturesI-Line
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Terminal ConnectionI-Line, Lug
Terminal IdentifierAL150HD
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range30 A,350 A,750 A
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic
UNSPSC39121616
Upc785901416456
UPC785901416456
UPC Code785901416456
Utilisation Categorycategory A
Voltage600
Voltage Rating250 V DC-600 V AC, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width104 mm, 4.09
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com2203299479.271In StockSquare D479.27 @ 1
thumbzoomgordonelectricsupply.comHDA260302515.01In Stock10SQUARE D515.0 @ 1
thumbzoommayerelectric.comSQDHDA260302532.251In StockSQUARE D4.84532.25 @ 1
thumbzoomRadwellHDA260302560.01In StockSCHNEIDER ELECTRIC SQUARE D560.0 @ 1
thumbzoomZoroG3978621584.661In Stock45Square D4.06584.66 @ 1
thumbzoomNewark19K9961588.741In StockSQUARE D BY SCHNEIDER ELECTRIC588.74 @ 1
Graybar25107730675.7744157Square D (Schneider Electric)675.7744 @ 1
thumbzoomsuperbreakers.comHDA260302779.8126Square D779.8 @ 1
simplybreakers.comHDA260302805.991In StockSchneider Electric805.99 @ 1
us.rs-online.com70952865987.341In StockSquare D987.34 @ 1
thumbzoommostelectric.comHDA2603021052.911In StockSQUARE D/TELEMECANIQUE1052.91 @ 1
thumbzoomcrescentelectric.com9991749.711In StockSquare D by Schneider Electric1749.71 @ 1
