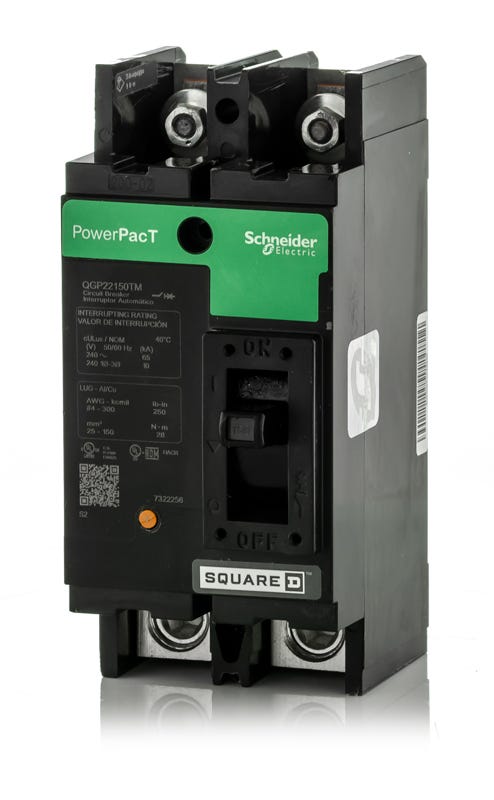

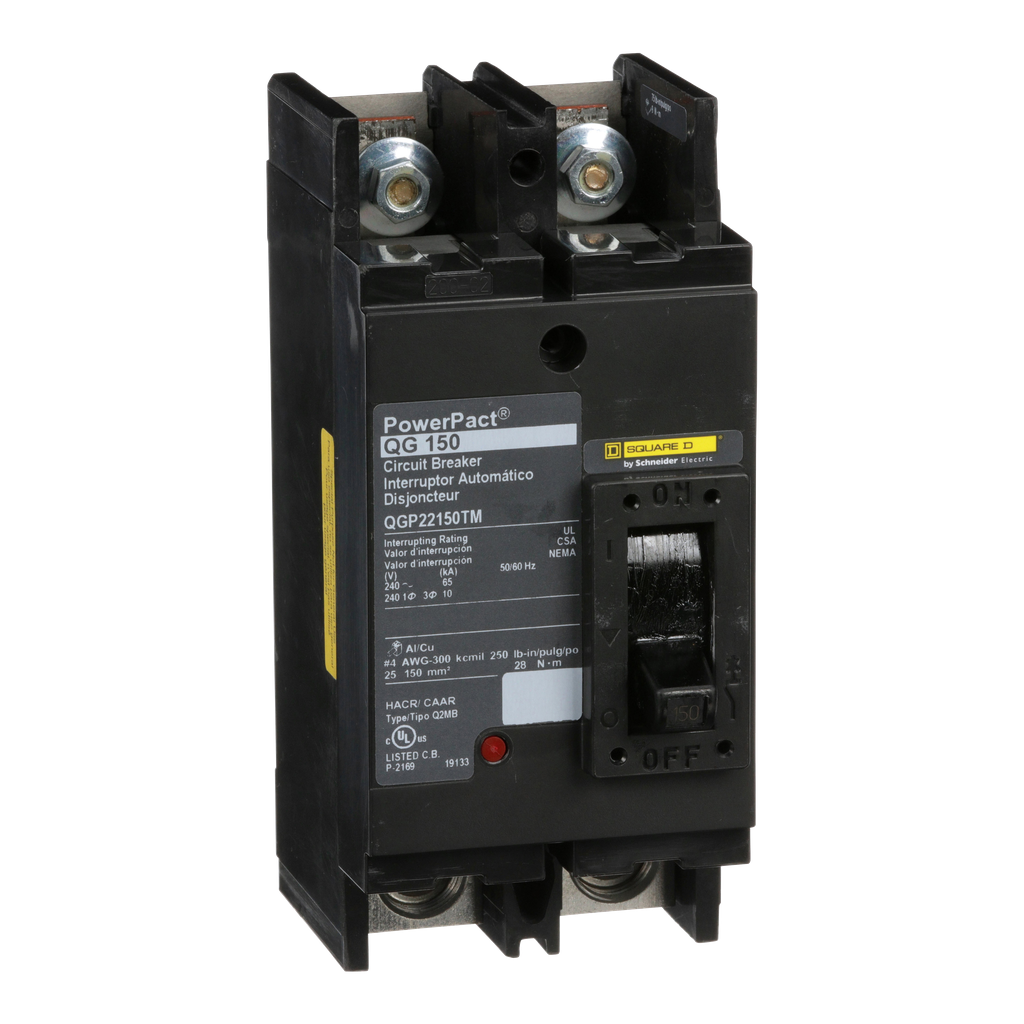

Schneider Electric QGP22150TM

B00CONIXE6

SCHNEIDER ELECTRIC 240-Volt 150-Amp QGP22150TM Molded Case Circuit Breaker 600V 70A

SCHNEIDER ELECTRIC 240-Volt 150-Amp QGP22150TM Molded Case Circuit Breaker 600V 70Azoom

Attributes

Key Value
[Ue] Rated Operational .240 V AC 50/60 Hz UL
[Uimp] Rated Impulse Wi.8 kV UL
Ambient Air Temperature.40-70 ?C
Amperage150
Amperage Rating150
ApplicationMETERING BREAKERS
ApprovalCSA, UL, IEC
BrandSquare D, Square D by S.
Breaking Capacity65 kA 120/208 V AC 50/6.
Breaking Capacity CodeG
California Proposition .DINP, which is known to.
Catalog NumberQGP22150TM
China Rohs RegulationProduct out of China Ro.
ConnectionLugs Load AWG 4...300 K.
Connection TypeLugs Load AWG 4...300 K.
Continuous Current Rati.80 %
Control Typeoperating handle
Country of Origin00 - Unknown, Mexico
Country of Origin (subj.Mexico
Current Rating150-150A
Depth3.93 in., 3.93 in
Device Applicationdistribution
ECCNEAR99
Electrical Connectionterminal nut line || lu.
Environmental DisclosureENVPEP1406032EN
Eu Rohs DirectiveCompliant
For Use WithFor Use in 225 A MPL Le.
FrameQ-Frame
Frame TypeQ-Frame, QGP
FunctionsLI - Long-Time and Inst.
Gtin785901689959
Halogen Content Perform.Halogen free product
Height6.47, 6.47 in., 6.47 in
Height (in)6.47
Height UOMInch
Interrupt Rating240 V AC,65 KA 240 V AC.
Interrupting Rating240 V AC,65 KA 240 V AC
ItemPowerPact Q - molded ca.
Item Typecircuit breaker
Length3.93 in, 22 mm
Length (in)3.93
Line Rated Current150-150 A
Local Signalling1 trip indicator green)
Made in USANo
Magnetic Hold Current1200 A
Magnetic Tripping Curre.2400-2400 A
ManufacturerSchneider Electric
Mechanical Durability1000 cycles loaded || 5.
Mercury FreeYes
Mounting Modeunit mount lug)
Mounting Supportlug
Mounting TypeUnit
MpnQGP22150TM
Network Frequency50/60 Hz
No. of Poles2-Pole
Number of Poles2
Phase1
Poles2
Poles Description2P
Product CertificationsUL || CSA || NOM
Product NamePowerPact Q
Product Or Component Ty.circuit breaker
Promotion RestrictionNot eligible for promot.
ProtectionThermal Magnetic
Pvc FreeYes
RangePowerPact
Rated Voltage240V AC 50/60 Hz UL
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesQ-Frame
Special FeaturesUNIT MOUNT
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandQO
Sustainable Offer StatusGreen Premium product
Terminal Connectionline side lug
Tightening Torque28-28 N.m 25-150 mm? (A.
Torque28-28 N.m 25-150 mm? (A.
Trip Range1200 A,150 A,2400 A
Trip TypeThermal Magnetic
Trip Unit Technologythermal-magnetic
UNSPSC39121616
Upc785901689959
UPC785901689959
Utilisation Categorycategory A
Voltage240
Voltage Rating240 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width3 mm, 3.00 in, 3.0
Width (in)4.5
Width UOMInch
Wire Gauge4 AWG TO 300 KCMIL (ALU.
Wire Stripping Length22 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comQGP22150TM771.991In StockSchneider Electric771.99 @ 1
thumbzoomsuperbreakers.comQGP22150TM1109.3516Square D1109.35 @ 1
thumbzoomZoroG39722241193.661In Stock40Square D3.341193.66 @ 1
thumbzoomRaptor SuppliesAG8UFB1356.96570751In StockSQUARE D1356.9657075 @ 1
thumbzoomgordonelectricsupply.comQGP22150TM1410.01In Stock10SQUARE D1410.0 @ 1
thumbzoommayerelectric.comSQDQGP22150TM1452.371In StockSQUARE D1452.37 @ 1
thumbzoomRadwellQGP22150TM1500.01In StockSCHNEIDER ELECTRIC SQUARE D1500.0 @ 1
thumbzoomcrescentelectric.com2779871561.291In StockSquare D by Schneider Electric1561.29 @ 1
Newark20K24051615.171In StockSQUARE D BY SCHNEIDER ELECTRIC1615.17 @ 1
Graybar220764471703.521In StockSquare D (Schneider Electric)1703.52 @ 1
