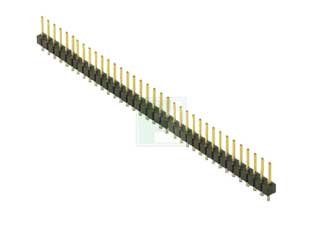

SULLINS GBC36SAAN G Series Single Row 36 Position 2.54 mm Pitch Straight Male Breakaway Header - 5 item(s)

SULLINS GBC36SAAN G Series Single Row 36 Position 2.54 mm Pitch Straight Male Breakaway Header - 5 item(s)zoom

Attributes

Key Value
Applications-
Base Product NumberGBC36S
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.10.0?in (0.25?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.230" (5.84mm)
Contact Length - Post0.120" (3.05mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3A
DescriptionCONN HEADER VERT 36POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberS9681-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.100" (2.54mm)
Insulation MaterialPolyamide (PA9T), Nylon.
ManufacturerSullins Connector Solut.
Manufacturer Product Nu.GBC36SAAN
Manufacturer Standard L.4 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrSullins Connector Solut.
Mounting TypeThrough Hole
Number of Positions36
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 150?C
Overall Contact Length0.450" (11.43mm)
PackageBulk
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating-
Series-
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics14310222.3522005Sullins2.352 @ 200
thumbzoomDigi-Key45521042.561362Sullins Connector Solutions2.56 @ 5
HotendaH13003032.7315Sullins Connector Solutions2.73 @ 5
