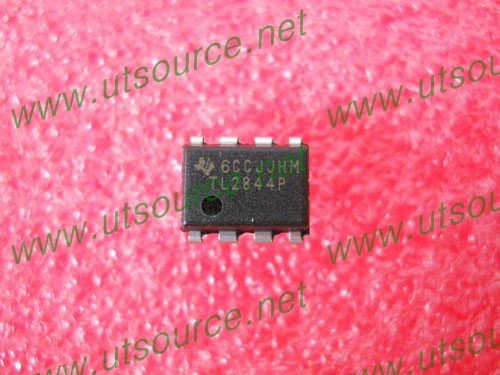

Texas Instruments TL2844P

mpnTL2844P
brandname: Texas Instruments
manufacturername: Texas Instruments

TL2844P

TL2844P

zoom

Brand: Texas Instruments
PartNumber: TL2844P
Model: TL2844P
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Base Product Number	TL2844
Category	Integrated Circuits (IC.
Clock Sync	No
Control Features	Frequency Control
Duty Cycle (Max)	48%
Frequency - Switching	Up to 500kHz
Function	Step-Up, Step-Up/Step-D.
Mfr	Texas Instruments
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature	-40?C ~ 85?C (TA)
Output Configuration	Positive
Output Phases	1
Output Type	Transistor Driver
Package	Tube
Package / Case	8-DIP (0.300", 7.62mm)
Part Status	Active
Serial Interfaces	-
Series	-
Supplier Device Package	8-PDIP
Synchronous Rectifier	No
Topology	Boost, Flyback, Forward
Voltage - Supply (Vcc/V.	10V ~ 30V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Verical	TL2844P	0.528	15	200		Texas Instruments		0.528 @ 15
	Digi-Key	13456997	0.952288181818	550	107		Texas Instruments		0.952288181818 @ 550
	Hotenda	H2573942	1.11	1	79		Texas Instruments		1.11 @ 1
	Mouser	595-TL2844P	1.11	1	449		Texas Instruments		1.11 @ 1
