- mpnEC09B
- brandname: US Motors
- manufacturername: US Motors

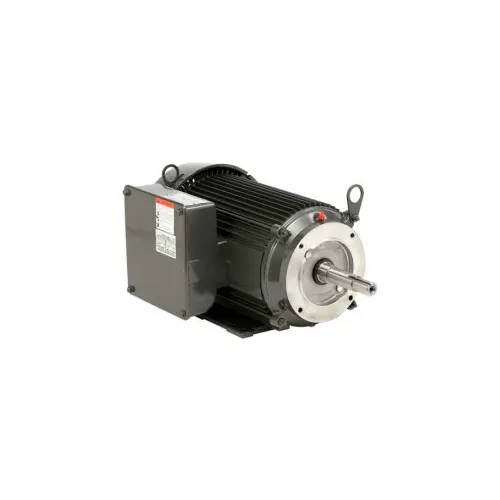

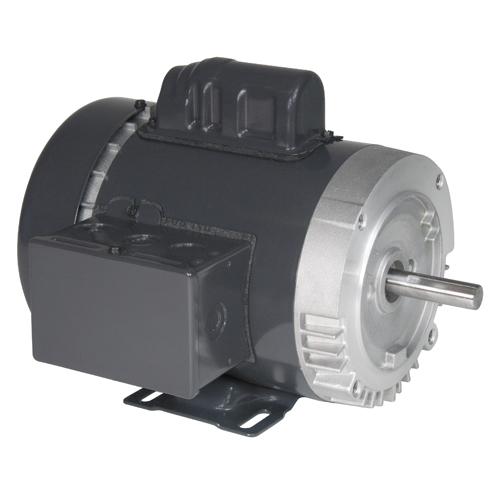

U.S. Motors US Motors Pump, 1 HP, 1-Phase, 3450 RPM Motor, EC09B
- Brand: U.S. Motors
- PartNumber: EC09B
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 12.8/6.6-6.4 |
| Bearings | Ball |
| Body Dia. | 6.5 in |
| CC Number | CC030A |
| Composition | Rolled Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 31.90 |
| Family Series | US Motors Motors |
| Finish | Unfinished |
| FL Amps | 12.8/6.6-6.4 |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 13.8/7.2-6.9 |
| Full Load Amps @ 50Hz | 13.8/7.2-6.9 |
| Gross Weight | 33.45 lbs |
| Hertz | 50, 60 |
| Horsepower | 1 hp |
| HP | 1 |
| HP @ 50Hz | 1 |
| Hz | 50/60, 60/50 |
| Ins. Class | B |
| Insulation Class | B |
| Item | Jet Pump Motor |
| Item Number | EC09B |
| Kilowatts | 0.8 kW |
| Length Less Shaft | 10 5/8 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063HMB5031014J |
| Manufacturer Part Number | EC09B |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063HMB5031014J |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face, Rigid |
| Nameplate RPM | 3,600 |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 80.6 % |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 12 1/8 in |
| Overload Protection | Automatic |
| Part Number | EC09B |
| Phase | 1, Single |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 3450, 3,450 RPM |
| RPM @ 50Hz | 3,600 |
| RPM Range | 3,001-3,600 |
| Service Factor @ 50Hz | 1 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 in |
| Ship Weight | 29 lbs. |
| Speed (RPM) | 3450 |
| Standards | CSA Certified, UL Recog. |
| Thermal Protection | Automatic |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 110 VAC, 115 VAC, 208-2. |
| Voltage @ 50Hz | 115/208-230, 110/220 |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115, 208, 230 |
| Weight | 26 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3313216 | 206.0 | 1 | In Stock | | U.S. Motors | 33.5 | 206.0 @ 1 |
 | Global Industrial | WBB465445 | 432.95 | 1 | In Stock | 17 | US Motors | | 432.95 @ 1 |
 | emotorpro.com | EC09B | 482.91 | 1 | In Stock | | U.S. Motors | 29.0 | 482.91 @ 1 |
 | National Supply Network | B465445 | 484.04 | 1 | In Stock | | US MOTORS | | 484.04 @ 1 |
 | motorsandcontrol.com | EC09B | 492.36 | 1 | In Stock | | US Motors (Nidec) | 31.9 | 492.36 @ 1 |
 | Galco | EC09B-USM | 504.09 | 1 | In Stock | | US Motors | 33.45 | 504.09 @ 1 |
| motionindustries.com | 04385273 | 645.2 | 1 | In Stock | | US Motors (Nidec) | | 645.2 @ 1 |
