- mpnH2V2BC
- brandname: US Motors
- manufacturername: US Motors

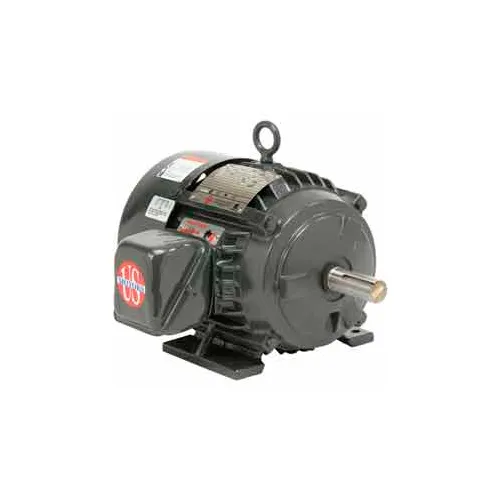

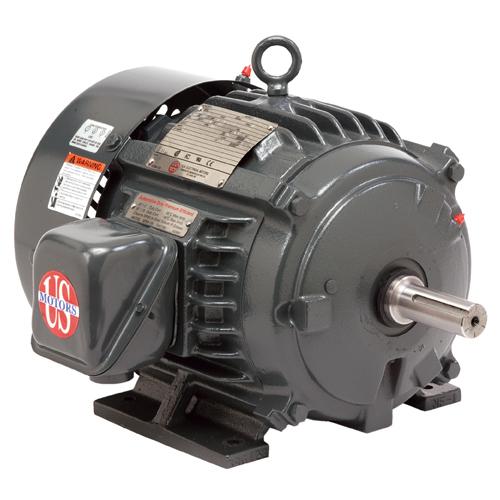

U.S. Motors US Motors Inverter Duty, 2 HP, 3-Phase, 1735 RPM Motor, H2V2BC
- Brand: US Motors
- PartNumber: H2V2BC
- PackageQuantity: 1
- Binding: Kitchen
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 5.5/2.8 |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 85.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 90.26 |
| Family Series | US Motors Motors |
| FL Amps | 5.5/2.8 |
| FL Efficiency | 85.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Gross Weight | 82.05 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item | Motor,3PH,2HP,1800,230/. |
| Item Number | H2V2BC |
| Kilowatts | 1.5 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | G38366 |
| Manufacturer Part Number | H2V2BC |
| Maximum Ambient Tempera. | 40? C |
| Model Number | G38366 |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | Foot Mount |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | H2V2BC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,735 RPM, 1735 |
| Service Factor | 1.15 |
| Ship Weight | 82 lbs. |
| Speed (RPM) | 1735 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0403871 | 423.0 | 1 | In Stock | | U.S. Motors | 82.0 | 423.0 @ 1 |
 | Global Industrial | WBB466126 | 445.95 | 1 | In Stock | 17 | US Motors | | 445.95 @ 1 |
 | emotorpro.com | H2V2BC | 484.06 | 1 | In Stock | | U.S. Motors | 82.0 | 484.06 @ 1 |
 | Galco | H2V2BC-USM | 509.69 | 1 | In Stock | | US Motors | 82.05 | 509.69 @ 1 |
 | motorsandcontrol.com | H2V2BC | 509.69 | 1 | In Stock | | US Motors (Nidec) | 90.26 | 509.69 @ 1 |
 | National Supply Network | B466126 | 522.83 | 1 | In Stock | | US MOTORS | | 522.83 @ 1 |
| motionindustries.com | 02701567 | 1079.04 | 1 | In Stock | | US Motors (Nidec) | | 1079.04 @ 1 |
