- mpnS5P2A
- brandname: US Motors
- manufacturername: US Motors

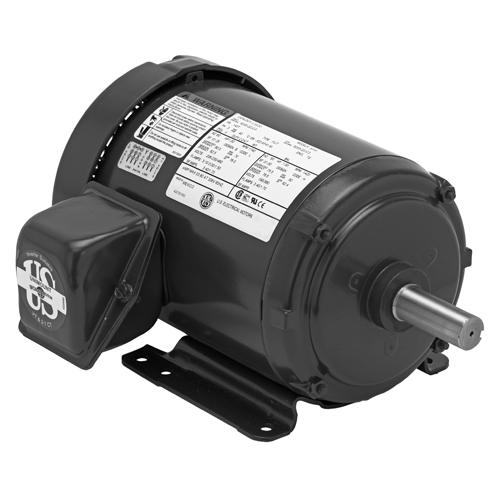

US Motors (Nidec) S5P2A General Purpose Motor - 3 ph, 5 hp, 1800 rpm, 208-230/460 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed/Horizontal Mount
- Brand: US Motors (Nidec)
- PartNumber: S5P2A
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 13.5-12.5/6.2 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 89.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 121.00 |
| Family Series | US Motors Motors |
| FL Amps | 13.5-12.5/6.2 |
| FL Efficiency | 89.5 |
| Frame | 184T |
| Frequency | 60 Hz |
| Gross Weight | 72 lbs |
| Hertz | 60 |
| Horsepower | 5 hp |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,5HP,1800,208-. |
| Item Number | S5P2A |
| Kilowatts | 3.7 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DA56 |
| Manufacturer Part Number | S5P2A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DA56 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 184T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | S5P2A |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1755, 1,755 RPM |
| Service Factor | 1.15 |
| Ship Weight | 72 lbs. |
| Speed (RPM) | 1755 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0406163 | 491.0 | 1 | In Stock | | U.S. Motors | 72.0 | 491.0 @ 1 |
 | Global Industrial | WBB467257 | 553.0 | 1 | In Stock | | US Motors | | 553.0 @ 1 |
 | emotorpro.com | S5P2A | 563.51 | 1 | In Stock | | U.S. Motors | 72.0 | 563.51 @ 1 |
 | Galco | S5P2A-USM | 594.0 | 1 | In Stock | | US Motors | 72.0 | 594.0 @ 1 |
 | motorsandcontrol.com | S5P2A | 594.0 | 1 | In Stock | | US Motors (Nidec) | 121.0 | 594.0 @ 1 |
 | National Supply Network | B467257 | 605.06 | 1 | In Stock | | US MOTORS | | 605.06 @ 1 |
| motionindustries.com | 04426984 | 843.11 | 1 | In Stock | | US Motors (Nidec) | | 843.11 @ 1 |
