- mpnS5P3A
- brandname: US Motors
- manufacturername: US Motors

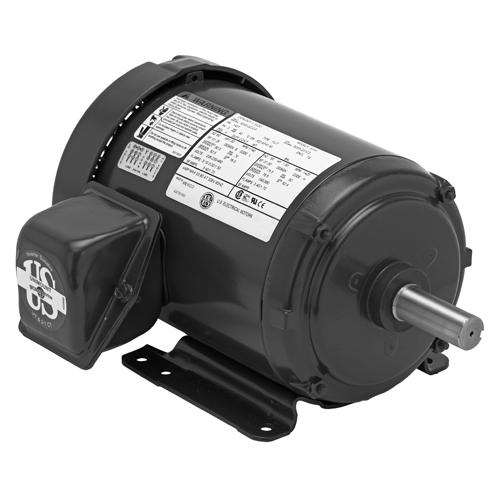

U.S. Motors US Motors Unimount TEFC, 5 HP, 3-Phase, 1170 RPM Motor, S5P3A
- Brand: U.S. Motors
- PartNumber: S5P3A
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 15-14.1/7 |
| Bearings | Ball |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 89.5% |
| Enclosure | TEFC |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 148.50 |
| FL Amps | 15-14.1/7 |
| FL Efficiency | 89.5 |
| Frame | 215T |
| Gross Weight | 135 lbs |
| Hertz | 60 |
| Horsepower | 5 |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| Item | Motor,3PH,5HP,1200,208-. |
| Manufacturer | US Motors (Nidec) |
| Manufacturer Model # | DA62 |
| Maximum Ambient Tempera. | 40? C |
| Motor Type | Three Phase Premium Eff. |
| Mounting | Foot Mount, Base |
| Name Plate RPMs | 1170 |
| Number of Speeds | 1 |
| Part Number | S5P3A |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1170 |
| Service Factor | 1.15 |
| Ship Weight | 135 lbs. |
| Speed (RPM) | 1170 |
| Thermal Protection Rati. | None |
| Type of Enclosure | TEFC |
| Voltage | 208-230/460, 208V, 230V. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467001 | 855.0 | 1 | In Stock | 17 | US Motors | | 855.0 @ 1 |
 | Zoro | G0406032 | 893.0 | 1 | In Stock | | U.S. Motors | 135.0 | 893.0 @ 1 |
 | emotorpro.com | S5P3A | 910.29 | 1 | In Stock | | U.S. Motors | 135.0 | 910.29 @ 1 |
 | Square One | S5P3A | 938.67 | 1 | In Stock | | US Motors | | 938.67 @ 1 |
 | National Supply Network | B467001 | 949.39 | 1 | In Stock | | US MOTORS | | 949.39 @ 1 |
 | motorsandcontrol.com | S5P3A | 959.53 | 1 | In Stock | | US Motors (Nidec) | 148.5 | 959.53 @ 1 |
 | Galco | S5P3A-USM | 959.54 | 1 | In Stock | | US Motors | 135.0 | 959.54 @ 1 |
| motionindustries.com | 04426986 | 1361.95 | 1 | In Stock | | US Motors (Nidec) | | 1361.95 @ 1 |
 | bscsource.com | S5P3A | 1433.89 | 1 | In Stock | | US Motors | | 1433.89 @ 1 |
 | Guardian | 77653483 | 1597.37 | 1 | In Stock | | US Motors | | 1597.37 @ 1 |
