- mpnT12S2G
- brandname: US Motors
- manufacturername: US Motors

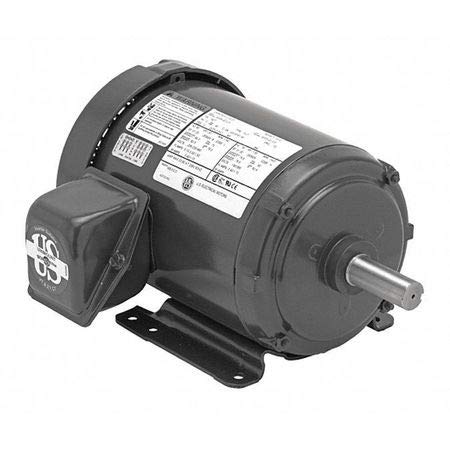

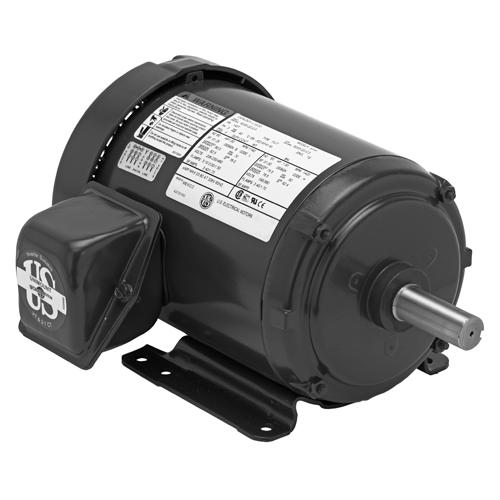

Motor,3PH,1/2HP,1800,575V
- Brand: U.S. MOTORS
- PartNumber: T12S2G
- PackageQuantity: 1
- Manufacturer: U.S. MOTORS
- Label: U.S. MOTORS
Attributes
| Key | Value |
|---|
| Amps | 0.80 |
| Availability | In Stock, ships within . |
| Bearing Protection | Sealed |
| Bearings | Ball |
| Brand | U.s. Motors |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Current Stock | 2 |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 28.60 |
| Family Series | US Motors Motors |
| FL Amps | 0.80 |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 0.80 |
| Gross Weight | 26 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Inverter Rated | No |
| Item | General Purpose Motor |
| Item Number | T12S2G |
| Kilowatts | 0.4 kW |
| Length Less Shaft | 10 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | P063GGP4561015B |
| Manufacturer Part Number | T12S2G |
| Material | HAWA |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | P063GGP4561015B |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Rigid |
| Mpn | T12S2G |
| MPN | T12S2G |
| Nameplate RPM | 1,725 |
| NEMA Design | B |
| NEMA Frame | 56 |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 575 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 11 7/8 in |
| Overload Protection | None |
| Part Number | T12S2G |
| Phase | 3, Three |
| Product Type | 3 Phase, General Purpose |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Ship Weight | 26 lbs. |
| SKU | CU-323633473834 |
| Speed (RPM) | 1725 |
| SubCategory | Motors/Ac Motors |
| UPC | 786382040437 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 575V AC, 575V |
| Voltage (AC) | 575 VAC |
| Voltage Compatibility | 575V AC |
| Volts | 575 |
| Weight | 26 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467160 | 203.95 | 1 | In Stock | | US Motors | | 203.95 @ 1 |
 | Zoro | G0391061 | 220.94 | 1 | In Stock | | U.S. Motors | 23.3 | 220.94 @ 1 |
 | emotorpro.com | T12S2G | 226.11 | 1 | In Stock | | U.S. Motors | 26.0 | 226.11 @ 1 |
 | Galco | T12S2G-USM | 230.95 | 1 | In Stock | | US Motors | 26.0 | 230.95 @ 1 |
 | motorsandcontrol.com | T12S2G | 230.95 | 1 | In Stock | | US Motors (Nidec) | 28.6 | 230.95 @ 1 |
 | National Supply Network | B467160 | 234.34 | 1 | In Stock | | US MOTORS | | 234.34 @ 1 |
 | simsupply.com | CU-323633473834 | 313.11 | 1 | In Stock | | U.s. Motors | | 313.11 @ 1 |
| motionindustries.com | 02899118 | 376.95 | 1 | In Stock | | US Motors (Nidec) | | 376.95 @ 1 |
