- mpnU10P1D
- brandname: US Motors
- manufacturername: US Motors

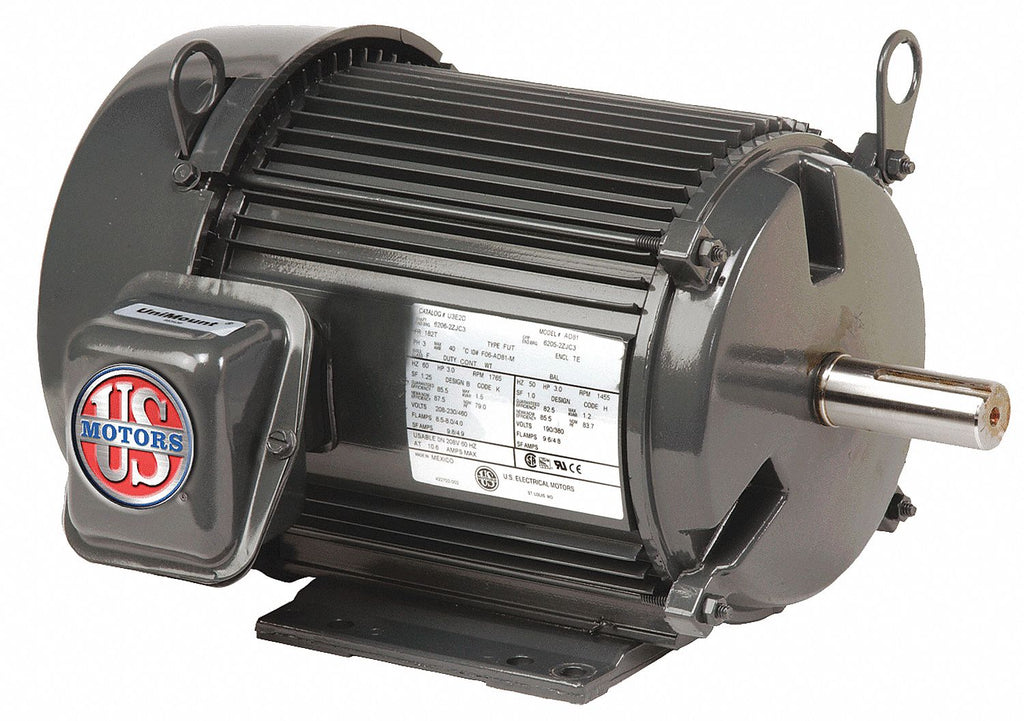

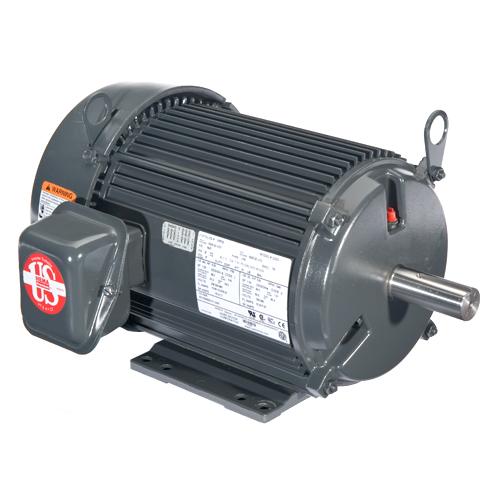

U.S. Motors US Motors Unimount TEFC, 10 HP, 3-Phase, 3520 RPM Motor, U10P1D
- Brand: U.S. Motors
- PartNumber: U10P1D
- PackageQuantity: 1
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 26.4-23.5/11.8 |
| Bearings | Ball |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | Standard |
| Efficiency | 91% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 142.88 |
| Family Series | US Motors Motors |
| FL Amps | 26.4-23.5/11.8 |
| FL Efficiency | 91 |
| Frame | 215T |
| Frequency | 60 Hz |
| Gross Weight | 129.89 lbs |
| Hertz | 50, 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U10P1D |
| Kilowatts | 7.5 kW |
| Length Less Shaft | 16 3/4 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | A438 |
| Manufacturer Part Number | U10P1D |
| Manufacturers Warranty . | 2 yr |
| Maximum Ambient Tempera. | 40? C |
| Model Number | A438 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| Nameplate RPM | 3,600 |
| NEMA Frame | 215T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 20 1/2 in |
| Part Number | U10P1D |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3,520 RPM, 3520 |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.25 |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/8 in |
| Ship Weight | 130 lbs. |
| Speed (RPM) | 3520 |
| Standards | CE, CSA, UL |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB467272 | 1086.0 | 1 | In Stock | | US Motors | | 1086.0 @ 1 |
 | emotorpro.com | U10P1D | 1101.01 | 1 | In Stock | | U.S. Motors | 130.0 | 1101.01 @ 1 |
 | Galco | U10P1D-USM | 1160.58 | 1 | In Stock | | US Motors | 129.89 | 1160.58 @ 1 |
 | motorsandcontrol.com | U10P1D | 1160.58 | 1 | In Stock | | US Motors (Nidec) | 142.88 | 1160.58 @ 1 |
 | National Supply Network | B467272 | 1172.66 | 1 | In Stock | | US MOTORS | | 1172.66 @ 1 |
 | Zoro | G4613612 | 1189.99 | 1 | In Stock | | U.S. Motors | 120.0 | 1189.99 @ 1 |
 | sustainablesupply.com | C2828722 | 1574.47 | 1 | In Stock | | US Motors | 120.0 | 1574.47 @ 1 |
 | motionindustries.com | 00545458 | 1647.31 | 1 | In Stock | | US Motors (Nidec) | | 1647.31 @ 1 |
