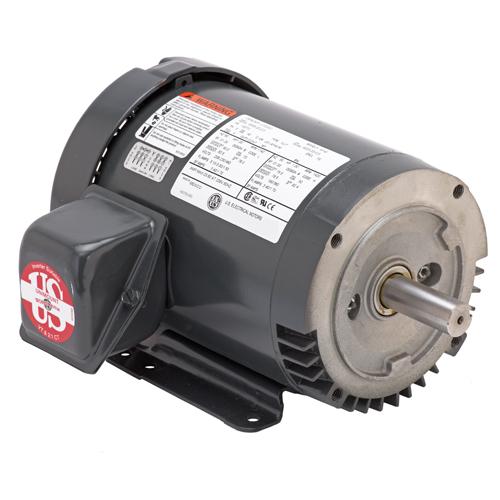

U.S. Motors US Motors Unimount TEFC, 2 HP, 3-Phase, 1750 RPM Motor, U2P2GC
- Brand: U.S. Motors
- PartNumber: U2P2GC
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 2.3 |
| Bearing Protection | Double Shielded |
| Bearings | Ball |
| Catalog Page | N/A |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 49.50 |
| Family Series | US Motors Motors |
| FL Amps | 2.3 |
| FL Efficiency | 86.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 2.3 |
| Gross Weight | 35 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Rated | Yes |
| Item | Motor |
| Item Number | U2P2GC |
| Item? | 56JA69 |
| Kilowatts | 1.5 kW |
| Length Less Shaft | 11 in |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FD17 |
| Manufacturer Part Number | U2P2GC |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 ?C |
| Maximum Ambient Tempera. | 40? C |
| Mfr. Model? | U2P2GC |
| Model Number | FD17 |
| Motor Application | General Application, Ge. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Blowers, Compressors, F. |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,750 |
| NEMA Design | B |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 86.5 % |
| Nominal Voltage | 575 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 13 1/8 in, 13-1/8 in |
| Part Number | U2P2GC |
| Part Winding Start Capa. | Yes |
| Phase | 3, Three |
| Product Type | General Purpose, Three . |
| Removable Base | Regreasable Bearings |
| Rotation | Reversible |
| RPM | 1,750 RPM, 1750 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2-1/8 in, 2 1/8 in |
| Ship Weight | 35 lbs. |
| Speed (RPM) | 1750 |
| Standards | CSA Certified, UL Recog. |
| UNSPSC | 26101612 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 575V AC, 575V |
| Voltage (AC) | 575 VAC |
| Voltage Compatibility | 575V AC |
| Volts | 575 |
| Weight | 35 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1933597 | 410.0 | 1 | In Stock | | U.S. Motors | 35.0 | 410.0 @ 1 |
 | Global Industrial | WBB467218 | 431.95 | 1 | In Stock | 17 | US Motors | | 431.95 @ 1 |
 | emotorpro.com | U2P2GC | 467.36 | 1 | In Stock | | U.S. Motors | 35.0 | 467.36 @ 1 |
 | National Supply Network | B467218 | 485.14 | 1 | In Stock | | US MOTORS | | 485.14 @ 1 |
 | motorsandcontrol.com | U2P2GC | 492.64 | 1 | In Stock | | US Motors (Nidec) | 49.5 | 492.64 @ 1 |
 | Galco | U2P2GC-USM | 492.65 | 1 | In Stock | | US Motors | 35.0 | 492.65 @ 1 |
| Grainger | 56JA69 | 493.55 | 1 | In Stock | | U.S. MOTORS | 35.0 | 493.55 @ 1 |
| motionindustries.com | 04487622 | 804.06 | 1 | In Stock | | US Motors (Nidec) | | 804.06 @ 1 |
