- mpnU3P1DC
- brandname: US Motors
- manufacturername: US Motors

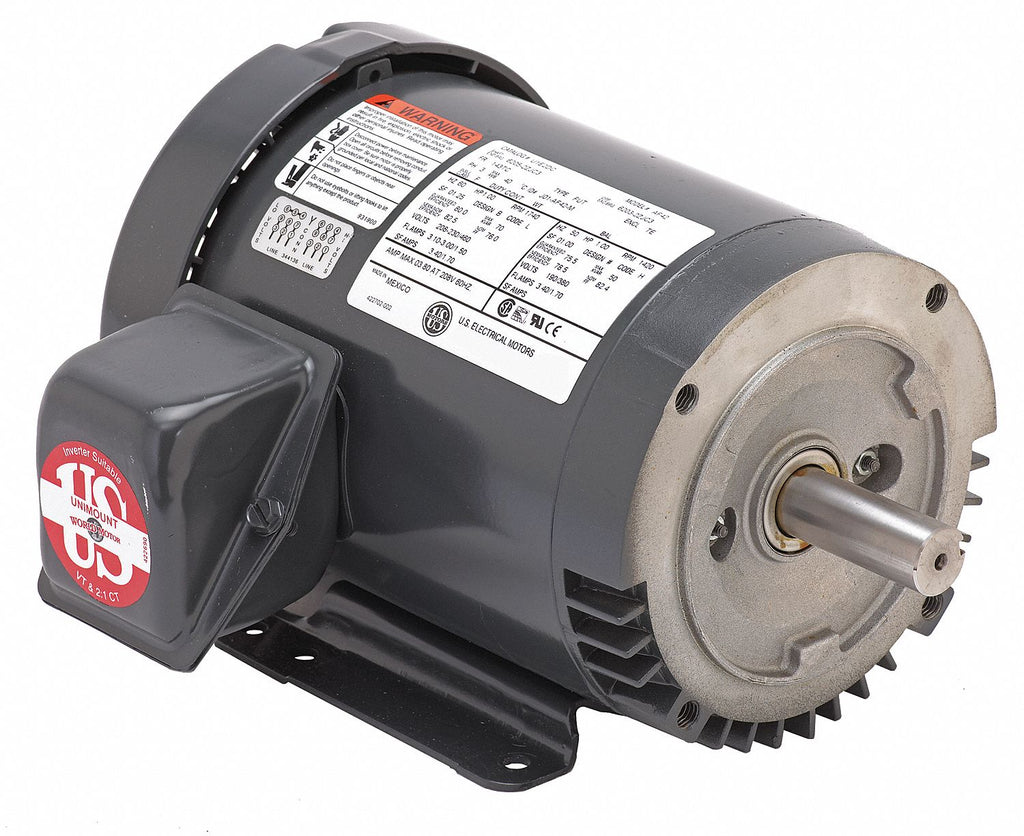

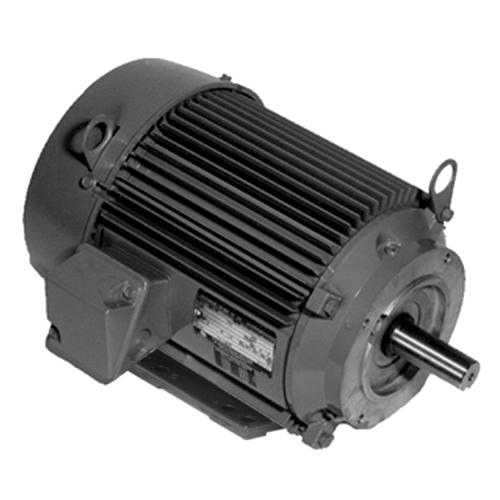

U.S. Motors/Nidec Motor Corporation - U3P1DC - General Purpose Motor, 3 HP, 3-Phase, Nameplate RPM 3, 600, Voltage 208-230/460V AC, 182TC Frame
- Brand: US Motors
- PartNumber: U3P1DC
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: U.S. Motors / Nidec Motor Corporation
- Label: U.S. Motors / Nidec Motor Corporation
Attributes
| Key | Value |
|---|
| Amps | 8.4-7.8/3.9 |
| Bearings | Ball |
| CC Number | CC030A |
| Composition | Aluminum |
| Construction | Aluminum |
| Drive End Flange Type | C-Face |
| Efficiency | 87.5% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 55.00 |
| Family Series | US Motors Motors |
| FL Amps | 8.4-7.8/3.9 |
| FL Efficiency | 87.5 |
| Frame | 182TC |
| Frequency | 60 Hz |
| Full Load Amps | 8.4 - 7.8/3.9, 8.4-7.8/. |
| Gross Weight | 50 lbs |
| Hertz | 50, 60 |
| Horsepower | 3 hp |
| HP | 3 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| Item | General Purpose Motor |
| Item Number | U3P1DC |
| Kilowatts | 2.2 kW |
| Length Less Shaft | 13 3/8 in, 13-3/8" |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DA65 |
| Manufacturer Part Number | U3P1DC |
| Manufacturers Warranty . | 2 yr., 2 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DA65 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical . |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, Base/Face |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 3,600 |
| NEMA Design | B |
| NEMA Frame | 182TC |
| Net Weight | 0 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 16 1/4 in, 16-2/8" |
| Part Number | U3P1DC |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3,540 RPM, 3540 |
| RPM Range | 3,001-3,600, 2,350 - 3,. |
| Service Factor | 1.25 |
| Shaft Dia. | 1-1/8", 1 1/8 in |
| Shaft Length | 2-3/4", 2 3/4 in |
| Ship Weight | 50 lbs. |
| Speed (RPM) | 3540 |
| Standards | CE, CSA, UL, UL Recogni. |
| Voltage | 190V, 230V, 380V, 460V,. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE23J896 | 407.5345689 | 1 | In Stock | | US MOTORS | 56.6 | 407.5345689 @ 1 |
 | emotorpro.com | U3P1DC | 646.5 | 1 | In Stock | | U.S. Motors | 50.0 | 646.5 @ 1 |
 | Global Industrial | WBB466326 | 671.0 | 1 | In Stock | | US Motors | | 671.0 @ 1 |
 | Zoro | G4545073 | 677.99 | 1 | In Stock | | U.S. Motors | 56.6 | 677.99 @ 1 |
| Applied Industrial | 101409775 | 712.71 | 1 | In Stock | | U.S. Motors | | 712.71 @ 1 |
 | Galco | U3P1DC-USM | 714.46 | 1 | In Stock | | US Motors | 50.0 | 714.46 @ 1 |
 | motorsandcontrol.com | U3P1DC | 714.46 | 1 | In Stock | | US Motors (Nidec) | 55.0 | 714.46 @ 1 |
 | National Supply Network | B466326 | 725.74 | 1 | In Stock | | US MOTORS | | 725.74 @ 1 |
 | sustainablesupply.com | C2828744 | 990.29 | 1 | In Stock | | US Motors | 56.6 | 990.29 @ 1 |
| motionindustries.com | 04487624 | 1166.1 | 1 | In Stock | | US Motors (Nidec) | | 1166.1 @ 1 |
