Weg Electric 00236ET3E145HP-W22

mpn00236ET3E145HP-W22
brandname: WEG
manufacturername: WEG

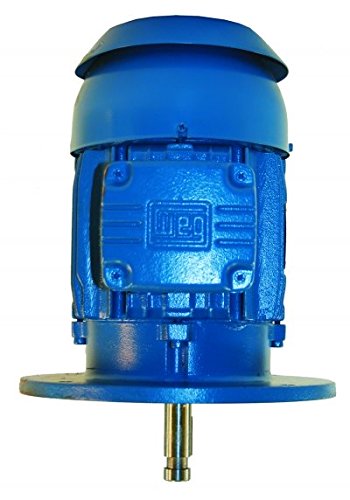

WEG Electric 00236ET3E145HP-W22, 2HP, 3600 RPM, 3PH, 230V/460V, 145HP Frame, P-BASE Flange, Footless, TEFC, P-Base Pump Motor

WEG Electric 00236ET3E145HP-W22, 2HP, 3600 RPM, 3PH, 230V/460V, 145HP Frame, P-BASE Flange, Footless, TEFC, P-Base Pump Motor

zoom

Brand: Weg Electric
PartNumber: 00236ET3E145HP-W22
Manufacturer: Weg Electric
Label: Weg Electric

Attributes

Key	Value
Amperage Rating	5.6 to 5.12/2.56 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
Classification	P Base
Composition	Cast Iron
Condition	New
Construction	Cast Iron
Degree of Protection	IP55
Description:	MOTOR 2HP 2P 145HP WFF2
Dimensions	15.175 in L
Drive End Flange Type	P-BASE
Efficiency %	85.5 %
Enclosure	TEFC, IC411 - TEFC, Tot.
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	51.00
Family Series	WEG Electric Motors
FL Amps	2.65
FL Efficiency	85.5
Flanges	Flange FF
Frame	145HP
Frame Remarks	Footed
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	0 lbs
Hertz	60
Horsepower	2 hp
HP	2
Hz	60
Insulation Class	Class F
Item Condition	Factory New
Item Number	00236ET3E145HP-W22
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	00236ET3E145HP-W22
Material	Cast Iron
MFG Part #:	00236ET3E145HP-W22
Model	13128896
Mounting	Foot-mounted (B35L(E)),.
Mounting Type	Footless P-Base, Footle.
NEMA Frame	145HP
Net Weight	0 lbs
Nominal Voltage	240 VAC
Number of Poles	4
Number of Speeds	1
Output Rating	15 HP
Part Number	00236ET3E145HP-W22
Phase	3, 3 ph
Product Type	P-Base Pump
Rotation	CW/CCW
RPM	3600, 3400 - 3600, 3,60.
Service Factor	1.25
Speed	3475 rpm
Speed (RPM)	3600
Standard	NEMA MG-1
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	1800 rpm
Temperature Rating	-20 to 40 deg C
Terminal Box	Right position
Torque Rating	2.98 ft-lb
UPC:	7909265381493
Voltage	230V, 460V, 460//380-41.
Voltage (AC)	230 VAC
Volts	208-230/460*
Weight	50.720000

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Walker Industrial	00236ET3E145HP-W22	435.75	1	In Stock	17	WEG		435.75 @ 1
	MRO Supply	2853349	458.85	1	In Stock		WEG		458.85 @ 1
	motorsandcontrol.com	00236ET3E145HP-W22	460.34	1	In Stock		WEG Electric	51.0	460.34 @ 1
	Galco	00236ET3E145HP-W22-WEG	477.2	1	In Stock		WEG Electric		477.2 @ 1
	kscdirect.com	WEG 00236ET3E145HP-W22	494.54	1	In Stock		WEG ELECTRIC CORP		494.54 @ 1
	industrialrefrigerationparts.com	00236ET3E145HP-W22	508.32	1	In Stock		WEG	50.72	508.32 @ 1
	Dealers Electric	00236ET3E145HP-W22	530.48	1	In Stock		Weg	71.0	530.48 @ 1
