WEG 00736ET3E213JM-W22

B007ICZ86O

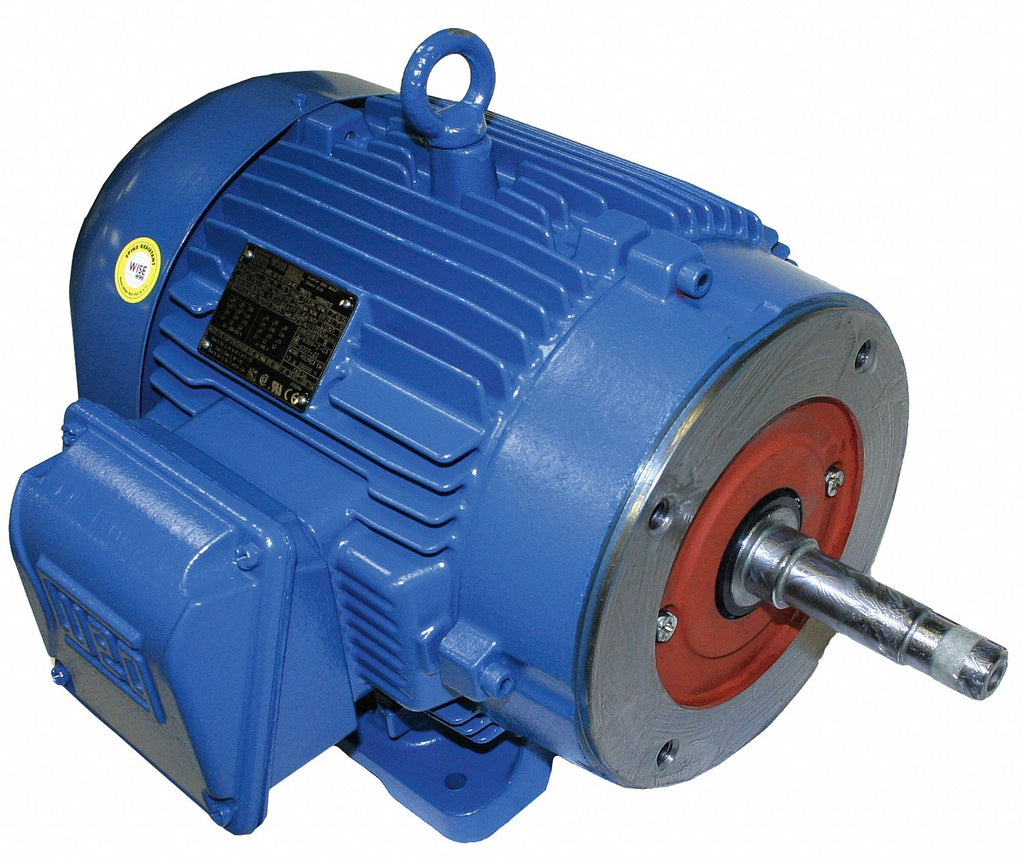

WEG 00736ET3E213JM-W22 W22 "JM" Type TEFC NEMA Premium Close Coupled Pump Motor, 7.5 HP, 3-Phase, 3530 rpm, 208-230/460 V, 60 Hz, 213JM Frame

WEG 00736ET3E213JM-W22 W22 "JM" Type TEFC NEMA Premium Close Coupled Pump Motor, 7.5 HP, 3-Phase, 3530 rpm, 208-230/460 V, 60 Hz, 213JM Framezoom

Attributes

Key Value
Amperage Rating19.4 to 17.5/8.76 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.10.5 in, 10.5"
Bolt Circle Dia.7 1/4 in, 7 1/4"
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 7.5HP 2P 213/5JM .
Dimensions20.392 in L
Drive End Flange TypeC-Face
Duty CycleContinuous
EfficiencyLeft position
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight154.00
Family SeriesWEG Electric Motors
FL Amps8.76
FL Efficiency89.5
Frame213JM, 215JM, 213/5JM
Frame MaterialCast Iron
Frame RemarksFooted-Close Coupled Pu.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps19.4-17.5/8.7
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height10 1/2 in
Hertz60
Horsepower7-1/2 hp, 7.5 hp
HP7 1/2, 7-1/2, 7.5
HP @ 50Hz4, 5
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number00736ET3E213JM-W22
Length Less Shaft14-9/16", 16 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00736ET3E213JM-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00736ET3E213JM-W22
Model12598761
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignJM Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFoot Mount, Footed
Nameplate RPM3,520, 3530
NEMA DesignB
NEMA Frame213JM
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency89.5%
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating7.5 hp
Overall Length20 3/8 in, 18-11/16"
Part Number00736ET3E213JM-W22
Phase3, Three, 3 ph
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces00736EP3E213JM-W22
RotationCW/CCW
RPM3600, 3520, 3,600 RPM
RPM @ 50Hz2,900
RPM Range3001-3600, 3,001-3,600
Service Factor1.25
Service Factor @ 50Hz1.25
Shaft Dia.7/8", 7/8 in
Shaft Dia. (In.)0.874
Shaft Length4 1/4 in, 4-1/8"
Shaft MaterialCarbon Steel
Shaft Size7/8 in Dia x 4-1/8 in L
Speed3520 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxC
UPC:7909158376131
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 230/46.
Voltage (AC)208 VAC
Voltage @ 50Hz380/400/415
Voltage Compatibility208, 230, 240, 460, 208.
Volts208/230/460
Weight162 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com04701847118.41In StockWEG Electric Corporation118.4 @ 1
thumbzoomelectricmotorwholesale.com00736ET3E213JM-W22834.01In StockWEG162.0834.0 @ 1
AmazonTPB007ICZ86O962.221In Stock5WEG962.22 @ 1
thumbzoomWalker Industrial00736ET3E213JM-W221064.251In Stock17WEG1064.25 @ 1
thumbzoommotorsandcontrol.com00736ET3E213JM-W221064.251In StockWEG Electric154.01064.25 @ 1
thumbzoomMRO Supply13136921120.641In StockWEG1120.64 @ 1
thumbzoomZoroG36450041164.2516Weg150.01164.25 @ 1
thumbzoomGalco00736ET3E213JM-W22-WEG1165.471In StockWEG Electric1165.47 @ 1
thumbzoomDealers Electric00736ET3E213JM-W221165.991In StockWeg154.01165.99 @ 1
kscdirect.comWEG 00736ET3E213JM-W221207.851In StockWEG ELECTRIC CORP1207.85 @ 1
thumbzoomindustrialrefrigerationparts.com00736ET3E213JM-W221224.011In StockWEG1224.01 @ 1
thumbzoomPurvis00736ET3E213JM-W221575.11In StockWEG1575.1 @ 1
thumbzoomNational Supply NetworkB8805371791.991In StockWeg Electric Motors1791.99 @ 1
grainger.caWWG6FKD21823.848865161In StockWEG150.01823.84886516 @ 1
thumbzoomsustainablesupply.comC15665371843.541In StockWEG150.01843.54 @ 1
thumbzoomRaptor SuppliesAE8UJN2273.4496981In StockWEG2273.449698 @ 1
