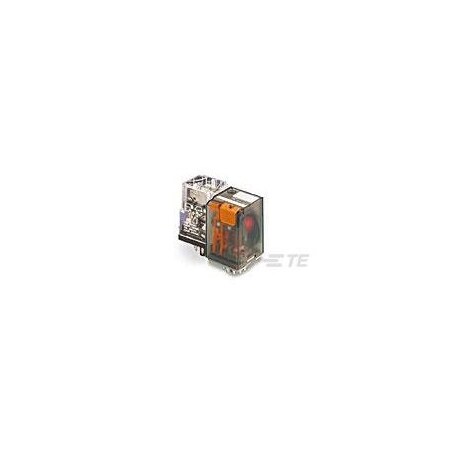

Potter&brumfield - Te Connectivity KA-11AY-120

B011OVXMWG

Potter&brumfield - Te Connectivity Ka-11Ay-120=Ka/kb/kc/kr - KA-11AY-120

Potter&brumfield - Te Connectivity Ka-11Ay-120=Ka/kb/kc/kr - KA-11AY-120zoom

Attributes

Key Value
Actuating SystemAC
Body Depth - Relay1.406 in
Body Height - Relay2 in
Body Width - Relay1.405 in
Coil Magnetic SystemMonostable, AC
Coil Power Rating AC2.1
Coil Power Rating Class2 ? 3
Coil Resistance2250 ?, 2250
Coil Special FeaturesUL Coil Insulation Clas.
Coil TypeMonostable, AC
Coil Voltage Rating120
Coil Volts120V AC
Contact Arrangement2 Form C (CO)
Contact Current Class5 ? 10, 16
Contact Current Rating .10
Contact Form - Relay2 Form C (CO)
Contact Limiting Breaki.10, 10A
Contact Limiting Contin.10, 10A
Contact Limiting Making.10, 10A
Contact Limiting Short-.10, 10A
Contact MaterialAg
Contact Number of Poles2
Contact Rating0.416666666666667A
Contact Switching Load .100mA @ 12V
Contact Voltage Rating240, 240 VAC
Dielectric Voltage1000 Vrms Adjacent Cont.
Environmental Ambient T.70??C?[?158??F?]
Environmental Ambient T.50 ? 70
Environmental Category .RT0
FeaturesUL Coil Insulation Clas.
Height Class (Mechanica.50 ? 60
Insulation Initial Diel.1000
Insulation Initial Diel.500 ? 1000
Insulation Initial Diel.1000
Insulation Initial Diel.1000
Insulation Initial Resi.100
Item - RelayIndustrial Panel Plug-I.
Length Class (Mechanica.35 ? 40
Mounting TypePanel Mount
Number of Poles2
Operating Temp. Range-45 to 70?C
Operating Temperature R.-45 ? 70
Packaging MethodPackage
Power Consumption - Rel.2.1VA
Power Relay TypeIndustrial Panel Plug-In
Product Height50.8?mm?[?2?in?]
Product Length35.7?mm?[?1.406?in?]
Product Weight85?g?[?2.988?oz?]
Product Width35.7?mm?[?1.405?in?]
Protection CategoryRT0
Relay Mounting TypePanel Mount
Switching Current100mA @ 12V
Terminal TypeSolder
Width Class (Mechanical)30 ? 40

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-1393099-948.7234TE CONNECTIVITY/AMP BRAND48.7 @ 34
TE Connectivity3-1393099-959.06055160TE Connectivity (TE)59.06055 @ 34
Digi-Key112802374.4148134TE Connectivity Potter & Brumfield Relays74.4148 @ 34
thumbzoomZoroG705866168122.99134Te Connectivity122.99 @ 34
