Boston Gear / Altra Industrial Motion RF2080-GRG05A

B01IWI8XQY

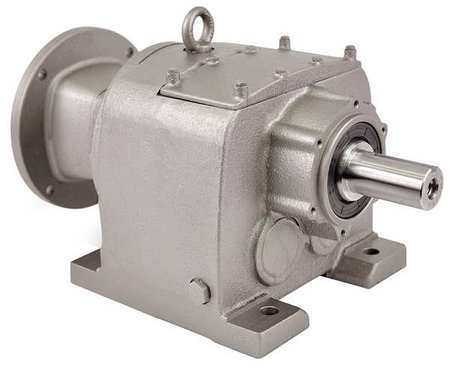

Boston Gear / Altra Industrial Motion - RF2080-GRG05A - Standard Cast Iron C-Face Helical Gear Drive, Single Output, 3380 lb. Overhung Load

Boston Gear / Altra Industrial Motion - RF2080-GRG05A - Standard Cast Iron C-Face Helical Gear Drive, Single Output, 3380 lb. Overhung Loadzoom

Attributes

Key Value
BearingsBall
Bore Dia.1-1/8"
Country of Origin (subj.United States
Dimension A11.69"
Dimension B12.20"
Dimension C11.54"
Dimension D5.510"
Dimension F10.24"
Dimension H7.08"
Dimension K8.980"
Dimension L20.1"
Dimension U2-1/8"
Dimension V3.94"
DutyStandard
FinishPainted Gray
Frame180TC/210C
Gear MaterialHardened and Ground Ste.
Gear TypeHelical
Housing MaterialCast iron
Input RPM1750
ItemHelical Gear Drive
LubricationKlubersynth GH 6-460
Max. Input HP5-10.18
Max. Output Torque13,900 in.-lb.
MountingBase
Nominal Output RPM24
Nominal Ratio72:1
Number of Stages3
Output Shaft Dia.2-1/8"
Output Shaft Height7-5/64"
Output Torque @ 1/40 HP3600 in.-lb.
Overall Length20.1"
Overhung Load3380 lb.
Pinion MaterialHardened Steel
Reducer Model No.RF2080-GRG05A
RotationForward/Reversible
Seal TypeDouble Lip
Shaft OrientationParallel/Inline
Single/Double Output/Un.Single Output
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG22406072425.011In Stock20Boston Gear2425.01 @ 1
