- mpnC70175
- brandname: CLEVELAND
- manufacturername: CLEVELAND

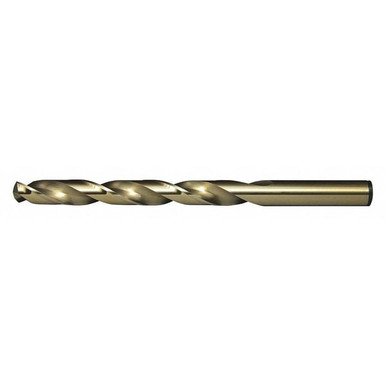

Cleveland Twist #42 Dia. 2-1/4" OAL Cobalt Jobber Length Drill Pk/10
- Brand: Cleveland Twist Drill
- PartNumber: C70175
- Manufacturer: Cleveland Twist Drill
- Label: Cleveland Twist Drill
Attributes
| Key | Value |
|---|
| Aircraft Drill | Yes |
| Brand | Cleveland |
| Construction | NAS 907 Type J |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 42 |
| Cutting Depth | 1-1/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.0935" / 2.37mm, 0.0935 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Wire | 42 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Individual, Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #42 |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in,. |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0194 in |
| Drill Size - Decimal In. | 0.0935 in |
| Drill Size - Wire | #42 |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1-1/4 in, 1 1/4 in |
| Flute Type | Right Spiral, Spiral |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Length of Flute | 1.2500" / 31.75mm |
| List Style | 2213 |
| Material | M42 HSS-Co 8%, HSS-CO 8. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 15/16 in, 23/64 in |
| Measurement System | Wire |
| Mpn | C70175 |
| Number of Flutes | 2 |
| Number of Pieces | 12 |
| Overall Length | 2.2500" / 57.15mm, 2 1/. |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | M, N, P |
| Secondary Material Appl. | Cast Iron, Nickel, Stai. |
| Secondary Material Appl. | K, M, S |
| Series | 2213 |
| Shank | Straight |
| Shank Dia. | 5/64 in |
| Shank Length | 1 in |
| Shank Size | 0.0935" / 2.37mm, 0.093. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G2842977 |
| Spiral Direction | Right Hand |
| Standards | NAS 907 Type J |
| Style | 2213 |
| SubCategory | Machining |
| Surface Condition | Straw, Straw / Gold Oxi. |
| Through Coolant (Yes/No) | No |
| Tool Size | #42 |
| Type | General Purpose Heavy D. |
| UPC | 697334701750 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6112520 | 1.8 | 20 | 12 | | Cleveland | | 1.8 @ 20 |
 | Megadepot | C70175 | 1.9 | 1 | 12 | | Cleveland | | 1.9 @ 12 |
 | usmegastore.com | C70175 | 2.33 | 1 | 12 | | Cleveland | | 2.33 @ 12 |
 | Zoro | G2842977 | 2.69 | 1 | 78 | | Cleveland | 0.06 | 2.69 @ 12 |
| Grainger | 435J32 | 3.49 | 1 | 12 | | CLEVELAND | | 3.49 @ 12 |
 | Guardian | 74331406 | 3.81 | 1 | 12 | | Cleveland | | 3.81 @ 12 |
 | National Supply Network | 74331406 | 4.1225 | 12 | 12 | | Cleveland | | 4.1225 @ 12 |
 | simsupply.com | ZO-G2842977 | 8.96 | 1 | 42 | | Cleveland | | 8.96 @ 12 |
