CR Magnetics CR4880-500

B005CWLK1O

CR Magnetics CR4880-500 3-Element 4-Wire Average RMS AC Voltage Transducer, 20 Hz - 5 KHz, 0 - 300 Output Load, 24 VDC +/-10%, 0-500 VAC Input Range, 4 - 20 mADC VDC Output Range

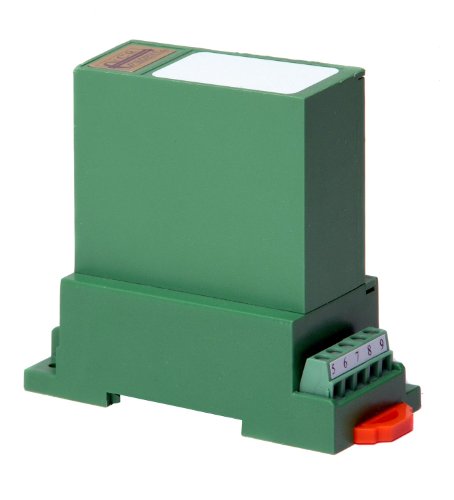

CR Magnetics CR4880-500 3-Element 4-Wire Average RMS AC Voltage Transducer, 20 Hz - 5 KHz, 0 - 300 Output Load, 24 VDC +/-10%, 0-500 VAC Input Range, 4 - 20 mADC VDC Output Rangezoom

Attributes

Key Value
Accuracy0.5%
Altitude2000 meter max
Approval AgencyCE, cURus
Basic Accuracy0.5%
CalibrationAverage Sensing, RMS Ca.
CategoryIndustrial Automation a.
Cleaningwater-dampened cloth
Frequency Range50 Hz - 400 Hz
Input Range0 ~ 500VAC
Installation CategoryCAT II
Insulation Voltage2500 Vdc
Isolation2500VDC
Linearity10% to 100% FS
MfrCR Magnetics Inc.
Mounting TypeDIN Rail
MTBFGreater than 100 K hours
Operating Temperature0?C to +60?C, 0?C ~ 60?C
Output4 ~ 20mA
Output Load4-20 mADC - 0 to 500 ? .
PackageBulk
Pollution Degree2
Product StatusActive
Relative Humidity5% to 95%, Non-Condensi.
Response Time250 ms, 250ms
SeriesCR4800
Supply CurrentTypical 55mA; Max 110mA
Supply Voltage24 Vdc ?10%
Termination StyleScrew Terminal
Thermal Drift500 PPM/?C
Torque Specs3.0-inch lbs. (0.4Nm)
TypeAverage RMS AC Voltage .
Vibration Tested ToIEC 60068-2-6,1995
Voltage - Supply24VDC
Weight0.5 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key2500476280.781In Stock33CR Magnetics Inc.280.78 @ 1
thumbzoomprimebuy.comCR4880-500310.91In StockCR Magnetics0.5310.9 @ 1
thumbzoomblackhawksupply.comCR4880-500315.751In StockCR Magnetics315.75 @ 1
