- mpn4M099
- brandname: Dayton
- manufacturername: Dayton

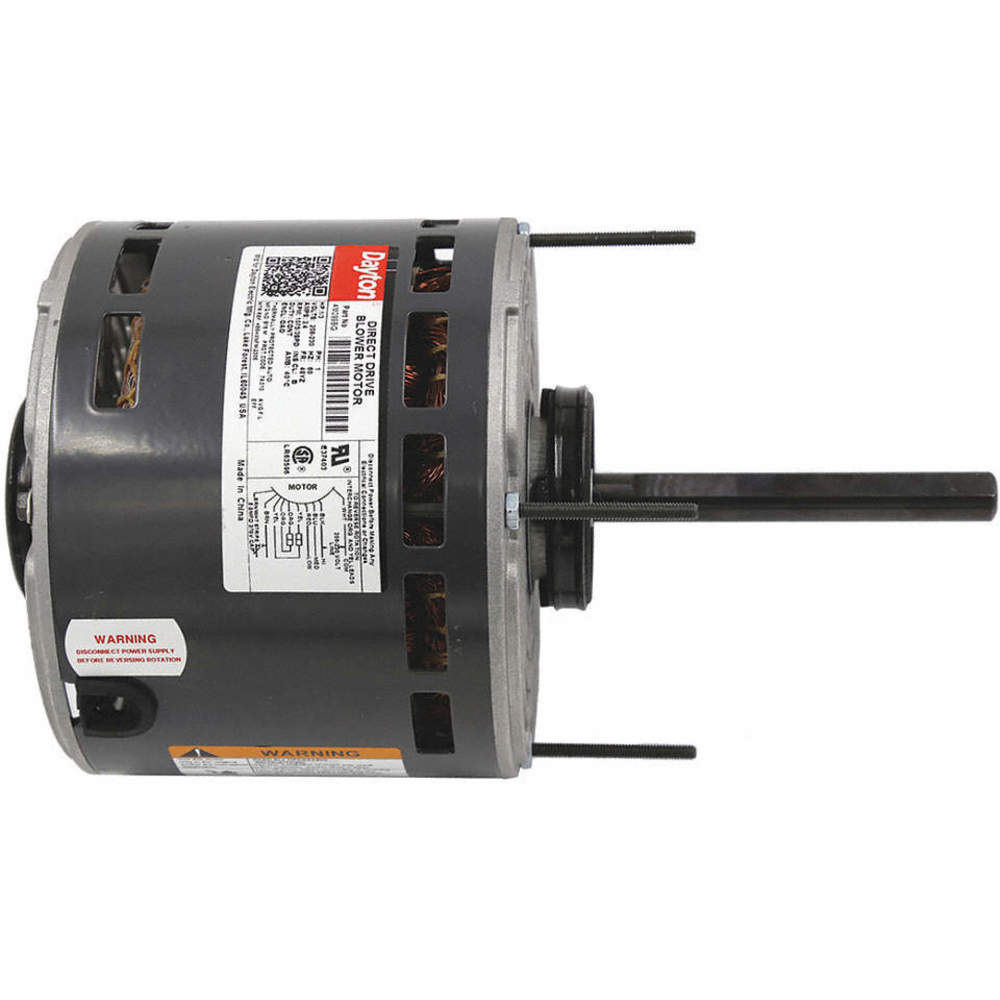

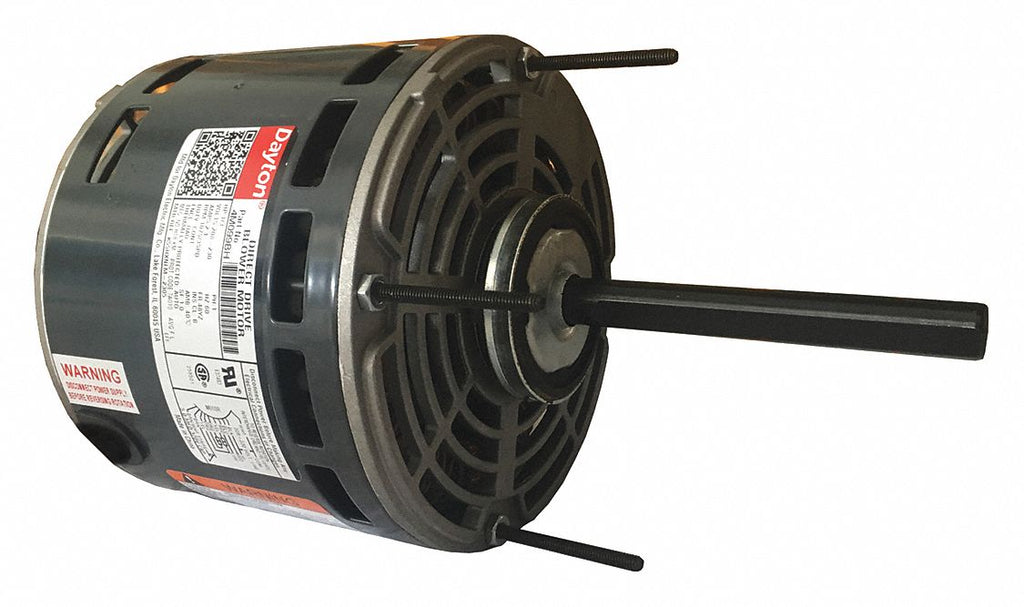

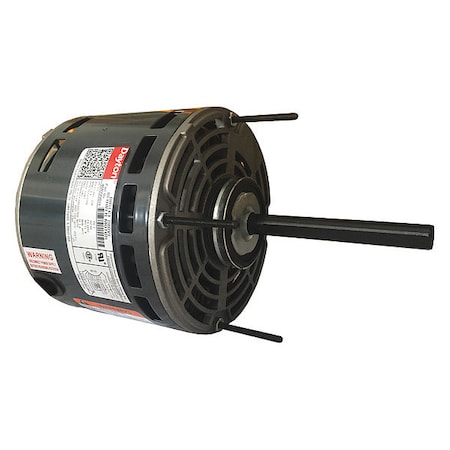

Dayton 4M099 Motor, 1/3 hp, D/D Blower
- Brand: Dayton
- PartNumber: 4M099
- Model: 4M099
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 2.4-2.4 |
| Bearings | Sleeve |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Bolt Circle Dia. | 5-1/8", 5 1/8 in |
| Brand | Dayton |
| Capacitor | 5MFD @ 370VAC Run Capac. |
| Capacitor Required | 2MDV4, Yes |
| Cross Reference | 3LU80, 4KA35 |
| Current Stock | 97 |
| Duty Cycle | Continuous |
| Efficiency | 60.3% |
| Enclosure Type | OAO (Open Air Over) |
| Frame | 48YZ |
| Full Load Amps | 2.6 to 2.6 |
| HP | 1/3 |
| Hz | 60 |
| Includes | Split Rings to Increase. |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Direct Drive Blower Mot. |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 5 11/16 in |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring/Stud |
| Motor Service Factor | 1, 1.00 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 5-11/16" |
| Motor Sub Application | Direct Drive Fan/Blower. |
| Motor Thermal Protection | Auto |
| Mounting | Ring/Stud |
| Mpn | 4M099 |
| Nameplate RPM | 1,075 |
| No. of Speeds | 3 |
| Nominal Efficiency | 60.30% |
| Number of Shafts | 3 |
| Number of Speeds | 3 |
| Overall Length | 9-11/16", 9 11/16 in |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 5 1/4 in |
| Rotation | Reversible |
| RPM | 1075 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Flatted |
| Shaft Length | 4", 4 in |
| Ship Weight | 13 lbs. |
| SKU | ZO-G2583016 |
| Standards | UL Component Recognitio. |
| Stud Size | 8-32 NC 2A Thread x 1 5. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735330043 |
| Voltage | 208 - 230, 208-230V AC |
| Voltage Compatibility | 115/208-230V AC, 200-23. |
| Volts | 208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2583016 | 131.99 | 1 | 167 | | Dayton | 11.5 | 131.99 @ 1 |
 | simsupply.com | ZO-G2583016 | 156.3 | 1 | 97 | | Dayton | | 156.3 @ 1 |
 | sustainablesupply.com | C1561240 | 159.25 | 1 | In Stock | | Dayton | 11.5 | 159.25 @ 1 |
| grainger.ca | GGE4M099 | 170.71682926 | 1 | In Stock | | DAYTON | 12.78 | 170.71682926 @ 1 |
| emotorpro.com | 4M099 | 173.84 | 1 | In Stock | | Dayton | 13.0 | 173.84 @ 1 |
 | Raptor Supplies | AD8TEM | 196.385436 | 1 | In Stock | | DAYTON | | 196.385436 @ 1 |
