Dayton 4M205

B07HLWVV3T

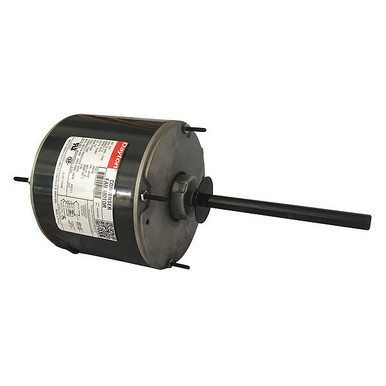

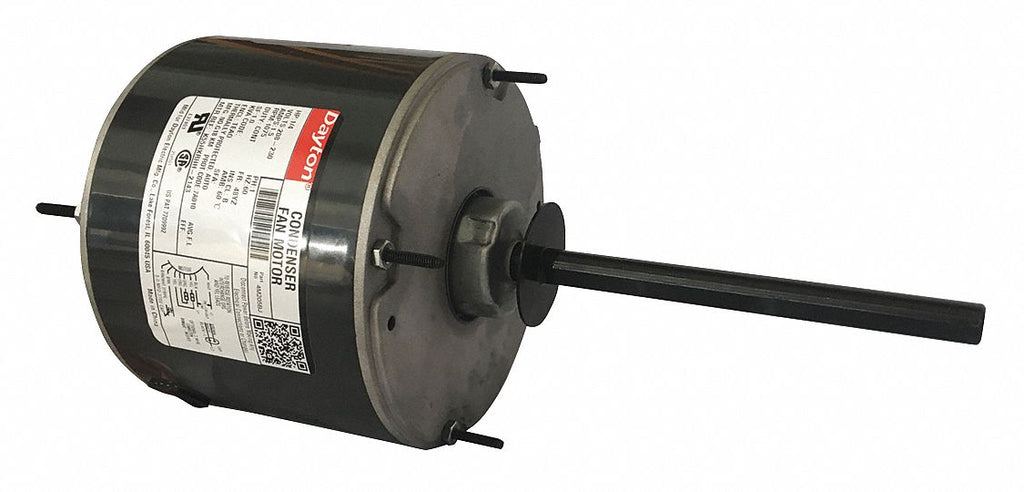

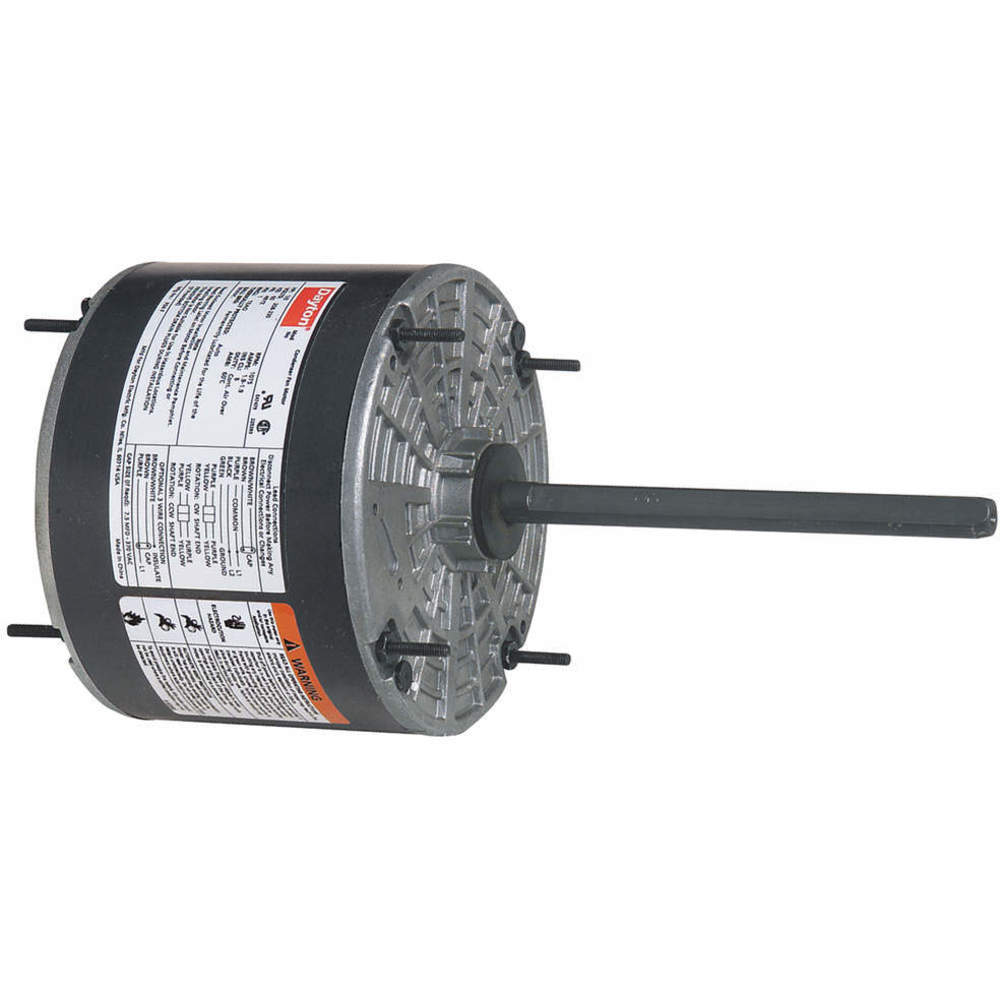

Dayton 1/4 HP Condenser Fan Motor,Permanent Split Capacitor,1075 Nameplate RPM,208-230 Voltage,Frame 48YZ

Dayton 1/4 HP Condenser Fan Motor,Permanent Split Capacitor,1075 Nameplate RPM,208-230 Voltage,Frame 48YZzoom

Attributes

Key Value
Amps1.7-1.9
BearingsBall
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/8 in
BrandDayton
Capacitor5MFD @ 370VAC Run Capac.
Cross Reference2PRA5, 4MB59
Current Stock197
DutyContinuous
Duty CycleContinuous
Enclosure TypeTEAO (Totally Enclosed .
Frame48YZ
HP1/4
Hz60
Insulation ClassB
International ShippingNo
Lead Length30 in
Lead TimeExpected to ship in 1-2.
Length Less Shaft5 7/8 in
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Mounting PositionAll Angle
Motor Mounting TypeStud
Motor Shaft DesignDouble-Flat
Motor Shaft RotationCW/CCW
Motor Shell Length4-13/16"
MountingStud
Mpn4M205
No. of Speeds1
Number of Speeds1
Overall Length9-9/16", 9 9/16 in
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075
RPM Range1,001-1,100
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2" Double Flatted
Shaft Length6 1/16 in, 6-1/16"
Ship Weight12 lbs.
SKUZO-G2273451
Stud Size8-32 NC-2A x 3/4 in
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC190735330227
Voltage208-230V AC
Voltage Compatibility115/208-230V AC, 200-23.
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB07BLNKLWJ80.421In Stock2Dayton80.42 @ 1
emotorpro.com4M205114.131In StockDayton12.0114.13 @ 1
thumbzoomZoroG2273451118.991237Dayton12.0118.99 @ 1
thumbzoomsustainablesupply.comC1561257120.291In StockDayton12.0120.29 @ 1
thumbzoomsimsupply.comZO-G2273451140.921197Dayton140.92 @ 1
thumbzoomRaptor SuppliesAD8TFR148.3393861In StockDAYTON148.339386 @ 1
