- mpn4M207
- brandname: Dayton
- manufacturername: Dayton

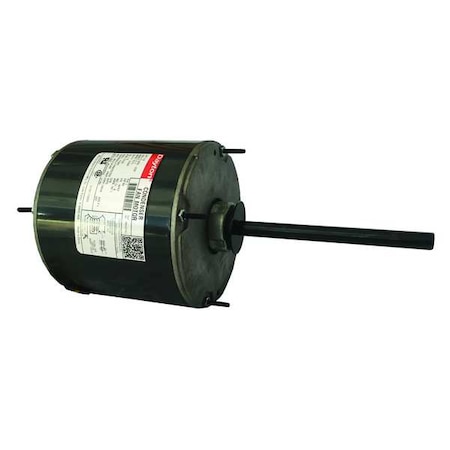

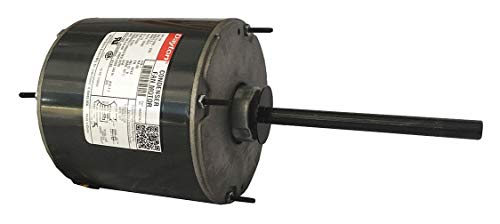

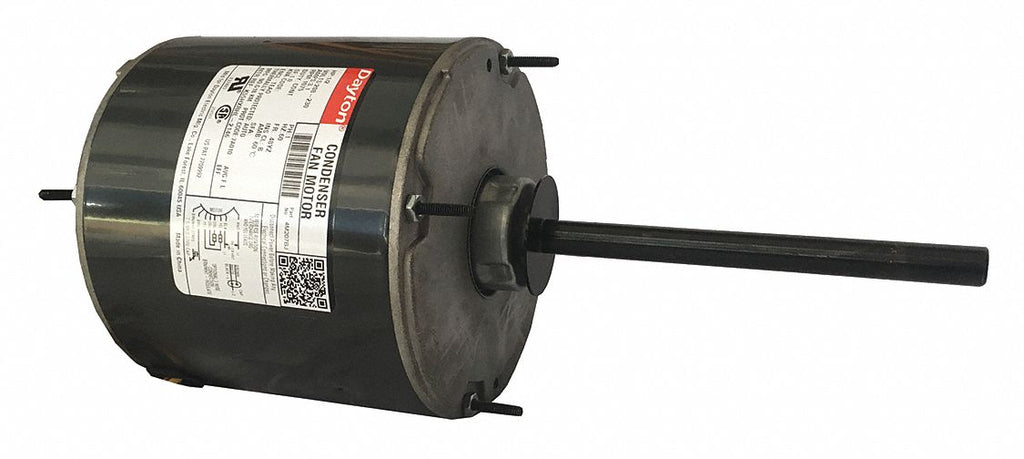

Dayton 1/2 HP Condenser Fan Motor,Permanent Split Capacitor,1075 Nameplate RPM,208-230 Voltage,Frame 48YZ
- Brand: CAI - DAYTON
- PartNumber: 4M207
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.6-4.1 |
| Application | Fan/Blower |
| Bearings | Ball |
| Body Dia. | 5 5/8 in, 5-5/8" |
| Bolt Circle Dia. | 5-1/8", 5 1/8 in |
| Brand | Dayton |
| Capacitor | 7.5MFD @ 370VAC Run Cap. |
| Capacitor Required | Yes |
| Cross Reference | 2PRA9, 4MB63 |
| Current Stock | 97 |
| Duty Cycle | Continuous |
| Enclosure Type | TEAO (Totally Enclosed . |
| Features | Reversing Plug, Totally. |
| Frame | 48YZ |
| Full Load Amps | 3.5 to 4.0, 3.1-3.1 |
| HP | 1/2 |
| Hz | 60 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | Condenser Fan Motor |
| Lead Length | 30", 30 in |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 5 7/16 in, 6 5/8 in |
| Max. Ambient Temp. | 60 Degrees C, 60 Degre. |
| Maximum Ambient Tempera. | 60? C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacit. |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Totally Enclosed Air-Ov. |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1.00 |
| Motor Shaft Design | Double-Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 5-7/8" |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Mounting | Stud |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Mpn | 4M207 |
| Nameplate RPM | 1,075 |
| No. of Speeds | 1 |
| Number of Speeds | 1 |
| Overall Length | 11-1/2", 10-5/16", 10 5. |
| Phase | 1, Single |
| Product Type | PSC (Permanent Split Ca. |
| Rotation | Reversible |
| RPM | 1075 |
| RPM Range | 1,001-1,100 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" Double Flatted |
| Shaft Length | 5-7/16", 6 in |
| Ship Weight | 17 lbs. |
| SKU | ZO-G3412062 |
| Standards | UL Recognized (E47479),. |
| Stud Quantity | 4 |
| Stud Size | 8-32 NC-2A |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| UPC | 190735330241 |
| Voltage | 208 - 230, 208-230V AC |
| Voltage Compatibility | 115/208-230V AC, 200-23. |
| Volts | 208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B07BLJVPKL | 105.82 | 1 | In Stock | 5 | Dayton | | 105.82 @ 1 |
| AmazonUNK | B07BLJVPKL | 105.82 | 1 | In Stock | | Dayton | | 105.82 @ 1 |
| AmazonSC | B07BLJVPKL | 107.71 | 1 | In Stock | | Dayton | | 107.71 @ 1 |
 | Zoro | G3412062 | 142.99 | 1 | 186 | | Dayton | 17.0 | 142.99 @ 1 |
| emotorpro.com | 4M207 | 143.81 | 1 | In Stock | | Dayton | 17.0 | 143.81 @ 1 |
 | sustainablesupply.com | C1561259 | 144.62 | 1 | In Stock | | Dayton | 17.0 | 144.62 @ 1 |
| grainger.ca | GGE4M207 | 144.8345873 | 1 | In Stock | | DAYTON | 16.01 | 144.8345873 @ 1 |
 | simsupply.com | ZO-G3412062 | 169.32 | 1 | 97 | | Dayton | | 169.32 @ 1 |
 | Raptor Supplies | AD8TFU | 178.3402335 | 1 | In Stock | | DAYTON | | 178.3402335 @ 1 |
