- mpn3312NH
- brandname: ebm-papst Inc.
- manufacturername: ebm-papst Inc.

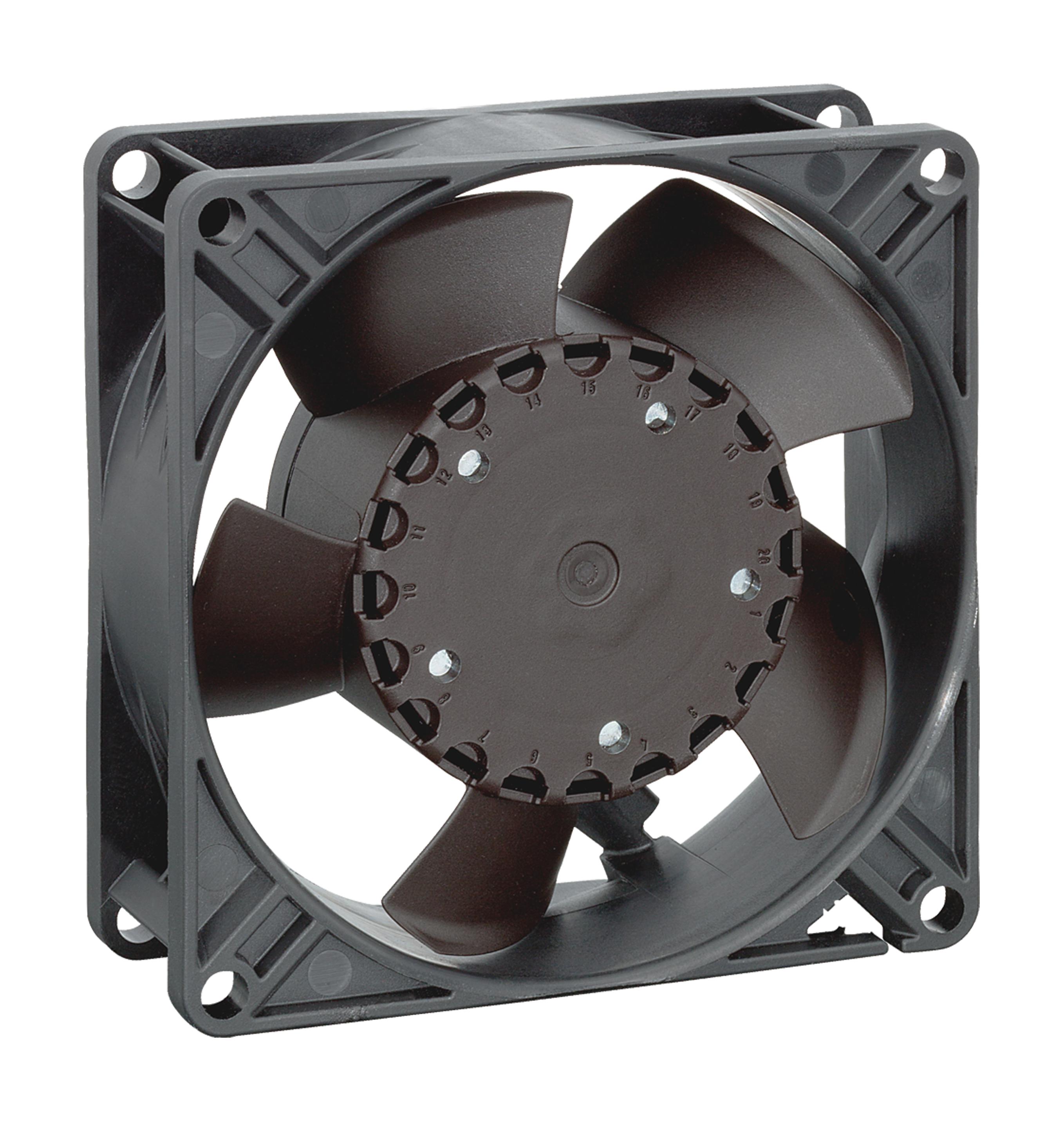

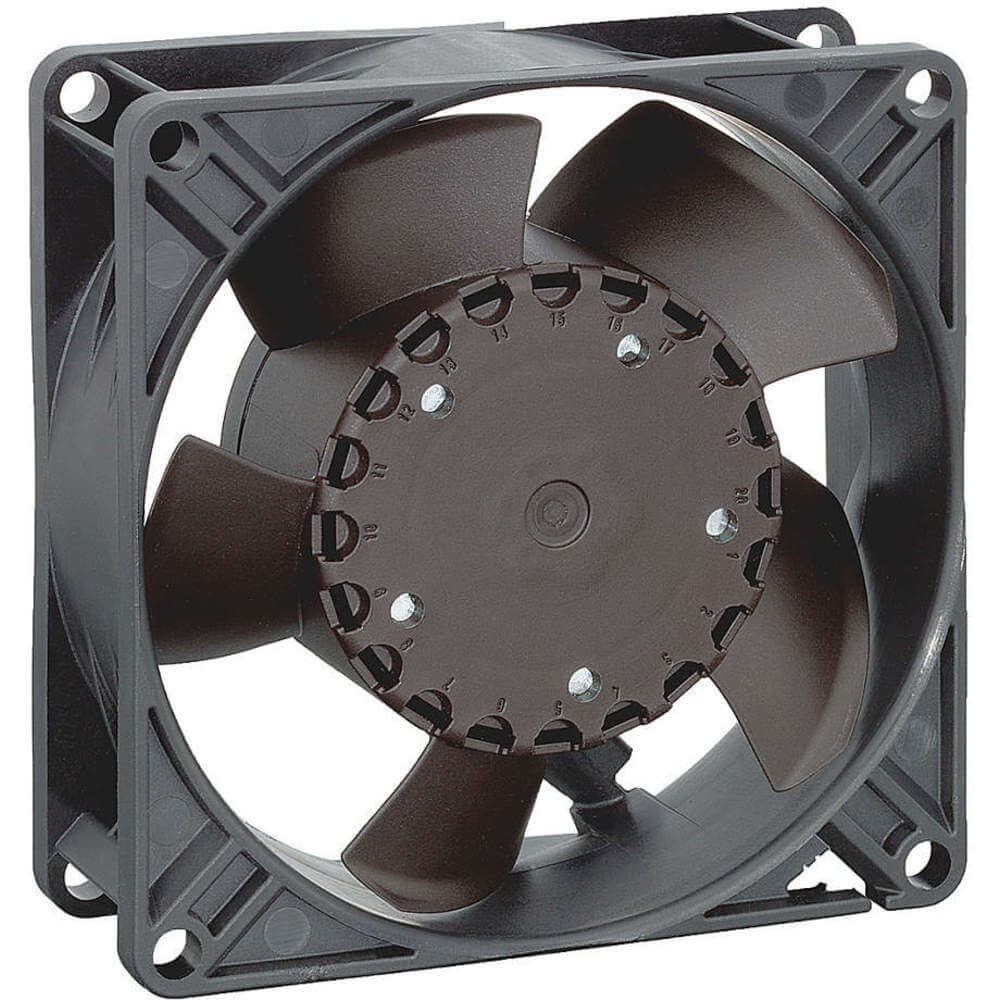

EBM-PAPST 3312NH DC Fans 12VDC 92x32mm Ball 54CFM 2.8W 3050RPM
- Brand: EBM Papst
- PartNumber: 3312NH
- Manufacturer: EBM-PAPST
- Label: EBM-PAPST
Attributes
| Key | Value |
|---|
| Air Flow | 54.0 CFM (1.51m, 54.0 C. |
| Approval Agency | UL |
| Approvals | CE, CSA, UL, VDE |
| Base Product Number | 3312 |
| Bearing Type | Ball |
| Bearings | Ball |
| Blade Material | Fiberglass Reinforced P. |
| Category | Fans, Thermal Management |
| CFM @ 0.000-In. SP | 54 |
| Current Rating (Amps) | - |
| dBA | 38 |
| Depth | 1 17/64 in |
| Description | FAN AXIAL 92X32MM 12VDC. |
| Detailed Description | Fan Tubeaxial 12VDC Squ. |
| Digi-Key Part Number | 381-2722-ND |
| Family Series | ebm-papst, Inc. Fans, 3. |
| Fan Width | 3-5/8" |
| Fan dBA | 38 |
| Fan Depth | 1-17/64" |
| Fan Height | 3-5/8" |
| Fan RPM | 3050 |
| Fan Speed | 3,050 RPM |
| Fan Type | Tubeaxial |
| Fan Voltage | 12VDC |
| Fan Watts | 2.8 |
| Fan Width | 3-5/8" |
| Features | - |
| Gross Weight | 0 lbs |
| Height | 3 5/8 in |
| Housing Material | Fiberglass Reinforced P. |
| Impeller Material | Plastic |
| Ingress Protection | - |
| IP Rating | IP54, IP68 |
| Item | Axial Fan |
| Item Number | 3312NH |
| Lead Free Status / RoHS. | RoHS Compliant |
| Lifetime @ Temp. | 65000 Hrs @ 40, 65000 H. |
| Manufacturer | ebm-papst, Inc., ebm-pa. |
| Manufacturer Part Number | 3312NH |
| Manufacturer Product Nu. | 3312NH |
| Manufacturer Standard L. | 20 Weeks, 78 Weeks |
| Material - Blade | Polyamide (PA), Nylon, . |
| Material - Frame | Polybutylene Terephthal. |
| Mfr | ebm-papst Inc. |
| Mounting | Flange |
| Mounting Eye O.C. | 3 1/4 in |
| Mounting Eye O.C. - Fans | 3-1/4" |
| Net Weight | 0.4188 lbs |
| Noise | 38.0dB(A), 38.0 dB(A) |
| Noise Level | 38 dB |
| Nominal Voltage | 12 VDC |
| Operating Temp Range (F) | -20-75 ?F |
| Operating Temperature | -4 ~ 167, -4 ~ 167?F (-. |
| Package | Bulk |
| Packaging | - |
| Part Status | Active |
| Power (Watts) | 2.8 W, 2.80W |
| Power Consumption | 2.8 W |
| Product Series | 3300N |
| Product Status | Active |
| RoHS | Yes |
| Rotation | Clockwise |
| RPM | 3050 RPM |
| Series | 3300N |
| Shape | Square |
| Size / Dimension | Square - 92mm L x 92mm H |
| Standard Package | 36 |
| Standards | UL and C-UL Recognized . |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Voltage | 12V DC |
| Voltage - Rated | 12VDC |
| Voltage Range | 6 ~ 15VDC |
| Watts | 2.8 |
| Weight | 0.419 lb (190.06g), 0.4. |
| Width | 32.00mm, 3 5/8 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1901701 | 37.41 | 1 | 72 | | ebm-papst Inc. | | 37.41 @ 1 |
| iodParts | 3312NH | 37.8 | 36 | 36 | | ebm-papst | | 37.8 @ 36 |
 | Zoro | G1859387 | 37.99 | 1 | In Stock | | Ebm-Papst | 0.75 | 37.99 @ 1 |
 | Galco | 3312NH-EBM | 41.04 | 1 | In Stock | | ebm-papst, Inc. | 0.4188 | 41.04 @ 1 |
 | Newark | 40Y1543 | 42.36 | 42 | In Stock | | EBM-PAPST | | 42.36 @ 25 |
 | Digi-Key | 5131172 | 45.26 | 1 | 7 | | ebm-papst Inc. | 0.419 | 45.26 @ 1 |
| Master Electronics | 3312NH | 63.176 | 1 | 15 | | ebm-papst | | 34.81 @ 2 |
 | Raptor Supplies | AH9CHC | 75.4099515 | 1 | In Stock | | EBM-PAPST | | 75.4099515 @ 1 |
