AML21CBA2BA

B005T5H3Y2

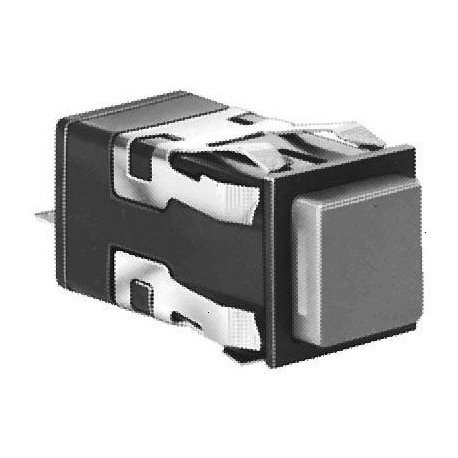

Illuminated Pushbutton Switch, AML21 Series, SPDT, On-(On), 100 mA, 125 V

Illuminated Pushbutton Switch, AML21 Series, SPDT, On-(On), 100 mA, 125 Vzoom

Attributes

Key Value
ActuatorSquare
Actuator MarkingNo Marking
Actuator TypeSquare, Button (Not Inc.
Alternate Part No.785-AML21CBA2BA
Base Product NumberAML21
BrandHoneywell
CategorySwitches
CircuitSPDT
Color - Actuator/Cap-
Contact FormSPDT
Contact MaterialGold
Current Rating3 A, 0.1 A
Current Rating (Amps)100mA (AC/DC)
Electrical Life100,000 Cycles
Features-
Illumination ColourMultiple
Illumination Type, ColorIncandescent
Illumination Voltage (N.-
Ingress Protection-
ManufacturerHoneywell
Manufacturer Part No.AML21CBA2BA
Mechanical Life100,000 Cycles
MfrHoneywell Sensing and P.
Mounting Hole Size18.92 mm
Mounting StyleThrough Hole
Mounting TypePanel Mount, Snap-In, S.
Number of Poles1
Number of Positions2
Operating Temperature-
OperationMomentary
PackageBulk
Panel Cutout DimensionsSquare - 19.05mm?
Part StatusActive
Product CategoryIlluminated Pushbutton .
SeriesAML21 Series, AML21
StandardsUL Recognized, CSA Cert.
Switch FunctionON - (OFF), On-Mom
TerminationSolder ; QC Tabs
Termination StyleSolder Pin, Solder, Qui.
TypeStandard, Illuminated, .
Voltage Rating24 V
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Voltage Rating AC125 V
Voltage Rating DC24 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comAML21CBA2BA28.12196HONEYWELL28.12 @ 1
thumbzoomCarlton Bates Company7845494441930.141In StockHONEYWELL30.14 @ 1
Digi-Key307283441.138850In StockHoneywell Sensing and Productivity Solutions41.1388 @ 50
thumbzoomNewark23F432855.6750In StockHONEYWELL55.67 @ 50
thumbzoomswatee.comAML21CBA2BA64.1314Honeywell64.13 @ 1
us.rs-online.com7011853069.681In StockHoneywell69.68 @ 1
thumbzoomkempstoncontrols.co.ukAML21CBA2BA3424.677751In StockHoneywell3424.67775 @ 1
