MCM-08-02

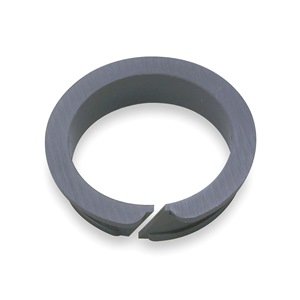

Clip Bearing, Plastic, 8mm ID, Pk 5

Clip Bearing, Plastic, 8mm ID, Pk 5zoom

Attributes

Key Value
ApplicationFor Rotational or Linea.
Bore Diameter8 mm
ColorAnthracite
Country of Origin (subj.Germany
Flange Thickness0.8 mm
Flange Thickness (In.)-
Flange Thickness (mm)0.8 mm
Flange TypeDouble Flange
For Housing Bore Range9.6 to 9.82 mm
For Material Thickness1.45 mm to 2.34 mm
For Material Thickness .-
For Material Thickness .1.45 to 2.34 mm
For Shaft Size7.975 to 8 mm
Inside Dia. (In.)-
Inside Dia. (mm)8 mm
Inside Diameter8 mm
Inside Height2 mm
Inside Height (In.)-
Inside Height (mm)1.45
ItemClip Bearing
Large Flange Dia. (In.)-
Large Flange Dia. (mm)13 mm
Large Flange Diameter13 mm
Lubrication TypeSelf Lubricating
MaterialM250 Thermoplastic
Material GradeM250 Thermoplastic
Material GroupPlastic
Material Thickness (mm)1.45 mm to 2.34 mm
Max. Housing Dia. (In.)-
Max. Housing Dia. (mm)9.82 mm
Max. Pressure (PSI)2,610 psi
Max. Shaft Dia. (In.)-
Max. Shaft Dia. (mm)8 mm
Maximum Housing Diameter9.82 mm
Maximum PV3,400 lb/sq in-fpm
Maximum Shaft Diameter8 mm
Min. Housing Dia. (In.)-
Min. Housing Dia. (mm)9.6 mm
Min. Shaft Dia. (In.)-
Min. Shaft Dia. (mm)7.98 mm
Minimum Housing Diameter9.6 mm
Minimum Shaft Diameter7.98 mm
Number of Flanges2
Outside Dia. (In.)-
Outside Dia. (mm)9.6 mm
Outside Diameter13 mm
Outside Height3.6 mm
Outside Height (In.)-
Outside Height (mm)3.6 mm
Overall Length3.6 mm
Package Quantity5
Plain Bearing Materialiglide Polymer
Resistance PropertiesWear Resistant
Small Flange Dia. (In.)-
Small Flange Dia. (mm)10.4 mm
Small Flange Diameter10.4 mm
StandardsRoHS 2 Certified
System of MeasurementMetric
TypeMetric

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG15096816.8945Igus0.016.89 @ 5
Grainger2MTL610.06157IGUS10.06 @ 5
thumbzoomsustainablesupply.comC160229810.7215igus0.0110.72 @ 5
thumbzoomRaptor SuppliesAC2TPP13.061821515IGUS13.0618215 @ 5
