Leeson 121519.00

B00EP39VLW

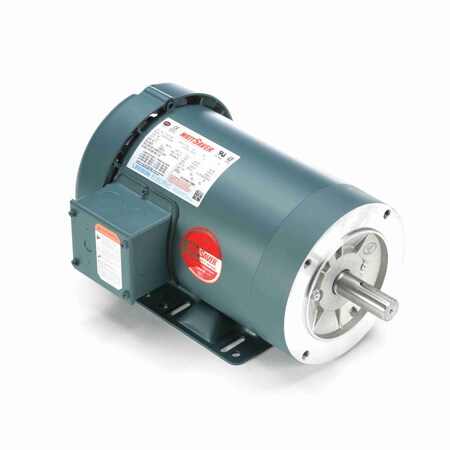

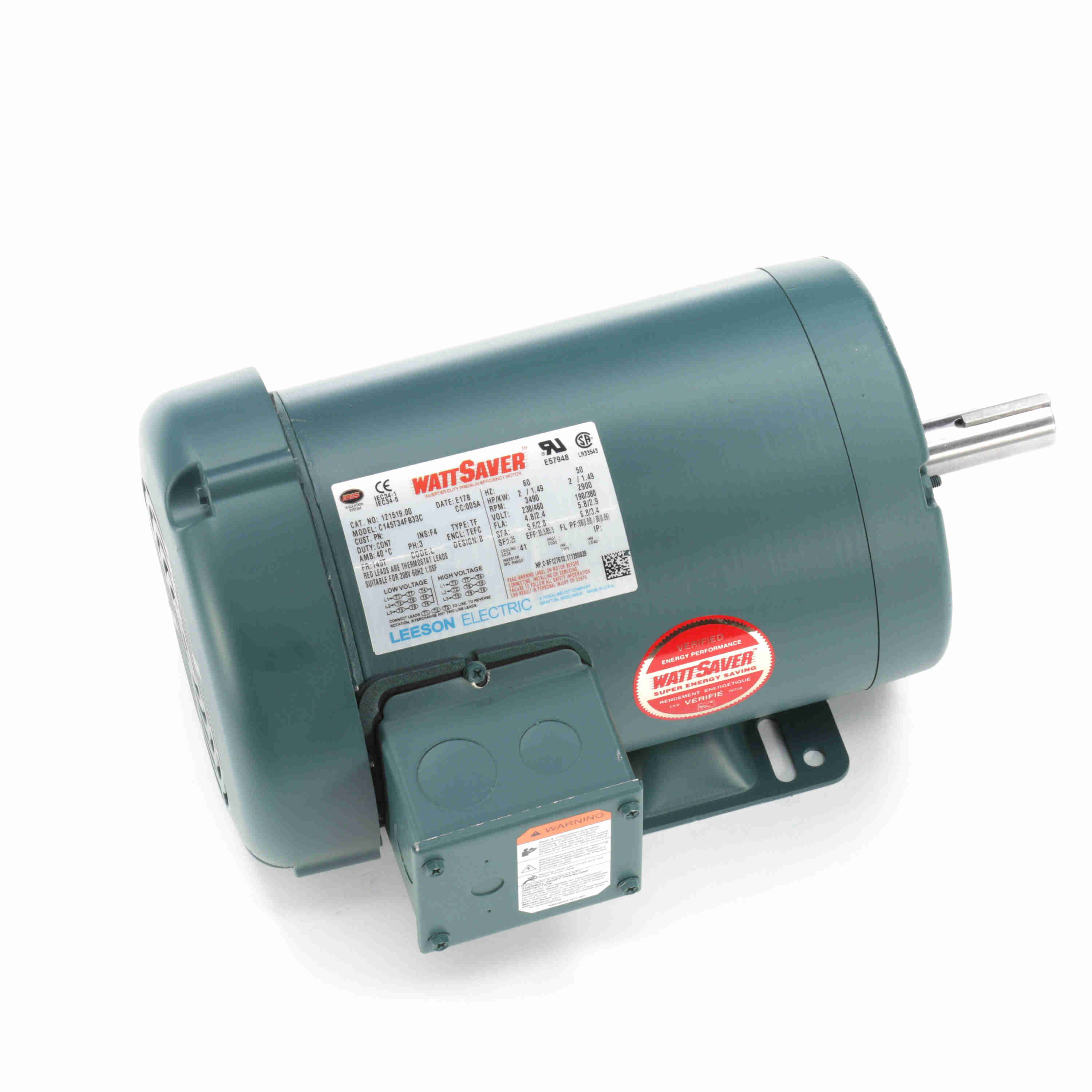

Leeson 121519.00 General Purpose Motor, 3 Phase, 145T Frame, Rigid Mounting, 2HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 121519.00 General Purpose Motor, 3 Phase, 145T Frame, Rigid Mounting, 2HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating6 to 5.6/2.8/6.8/3.4 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC145T34FB33
CompositionSteel
Country of Origin (subj.United States
CT Speed Range10:1
Description:Replaced by 145TTFR1300.
Dimensions13-3/4 in L
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, Three Ph.
Frame145T, 140
Frequency Rating50/60 Hz
Gross Weight0 lbs
Horsepower2 hp
HP2
Insulation ClassClass F
Item ConditionFACTORY NEW
Item Number121519.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number121519.00
MaterialRolled Steel
MFG Part #:121519.00
Model NumberC145T34FB33
mountingRigid Base
Mounting TypeRigid, Foot Mount, Rigid
NEMA Frame145T
Net Weight44 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Overall Length13.75 "
Phase3
Product SeriesThree Phase TEFC
RotationReversible
RPM3600, 3,600 RPM
Service Factor1.25
Shaft DiameterUL;CSA
Shaft Size7/8 in Dia
Special Features2-Pole, B NEMA Design
Speed3490/2900 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720253939
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEE 121519.00202.551In StockLEESON ELECTRIC CORPORATION202.55 @ 1
thumbzoomGalco121519.00-LEES213.431In StockLeeson44.0213.43 @ 1
thumbzoomWalker Industrial121519-00231.221In Stock17Leeson231.22 @ 1
thumbzoomcbtcompany.com121519.00246.791In StockLeeson Electric246.79 @ 1
thumbzoomRaptor SuppliesAJ2RHX347.942791In StockLEESON347.94279 @ 1
thumbzoomelectricmotorwholesale.com121519433.01In StockLEESON433.0 @ 1
thumbzoomDealers Electric121519.00528.681In StockLeeson47.0528.68 @ 1
AmazonTPB0773THDM8580.331In Stock3Leeson Electric580.33 @ 1
thumbzoomMRO Supply2526249603.371In Stock14LEESON44.0603.37 @ 1
thumbzoomZoroG2486790717.721In Stock10Leeson717.72 @ 1
kirbyrisk.com2178762928.471In StockLeeson928.47 @ 1
