Marathon Electric GT1418

B0196KX6XC

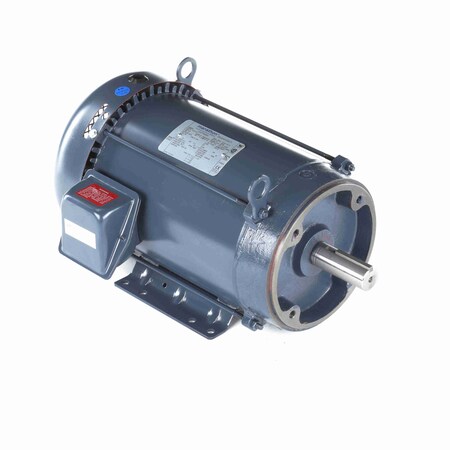

Marathon GT1418 215TC Frame 215TTFBA6007 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 10 hp, 3600 rpm, 1 Speed, 575 VAC

Marathon GT1418 215TC Frame 215TTFBA6007 TEFC General Purpose Motor, 3 Phase, C-Face with Base, Ball Bearing, 10 hp, 3600 rpm, 1 Speed, 575 VACzoom

Attributes

Key Value
Amps9.2
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Country of Origin (subj.China
Duty CycleContinuous
Efficiency0.902
Efficiency %90.2 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
enclosure type:TEFC (Totally Enclosed .
Family SeriesMarathon Electric Motors
Frame215TC
frame material:Rolled Steel
frame size:215TC
Frequency60 Hz
frequency rating:60 Hz
full load current:9.20 A
full load efficiency:90.20 %
Gross Weight0 lbs
Horsepower10 hp
HP10
Hz60
Insulation ClassF
ip rating:43
Item NumberGT1418
Kilowatts7.5 kW
ManufacturerMarathon Electric
Manufacturer Model #215TTFBA6007
Manufacturer Part Number215TTFBA6007
Maximum Ambient Tempera.40? C
motor horsepower:10.0 hp, 10 hp
motor phase:3 ph
motor supply voltage:575 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid
mounting type:Footed/C-Face Flange
NEMA Frame215TC
Net Weight189 lbs
Number of Poles2
Number of Speeds1
Overall Length21.02 ", 21.02"
overall length (c-dimen.21.02 in
Phase3
Product TypeThree Phase
RotationReversible
RPM3,540 RPM, 3540, 3400 -.
Service Factor1.15
service factor:1.15
Shaft Diameter1-3/8", 1.38 "
shaft diameter:1.38 in
Shaft Length3.38"
Ship Weight172 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Voltage575
Voltage (AC)575 VAC
Volts575
weight:137 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com04739612849.541In StockMarathon Electric849.54 @ 1
thumbzoomemotorpro.comGT1418906.461In StockMarathon172.0906.46 @ 1
thumbzoomMRO Supply22681171048.061In StockMarathon Electric1048.06 @ 1
thumbzoomapexindustrialautomation.comGT14181056.441In StockMarathon1056.44 @ 1
thumbzoomGalcoGT1418-MARA1200.51In StockMarathon Electric189.01200.5 @ 1
thumbzoomcbtcompany.comGT14181425.991In StockMarathon Electric Motors1425.99 @ 1
thumbzoomZoroG70395521493.791In Stock10Marathon1493.79 @ 1
