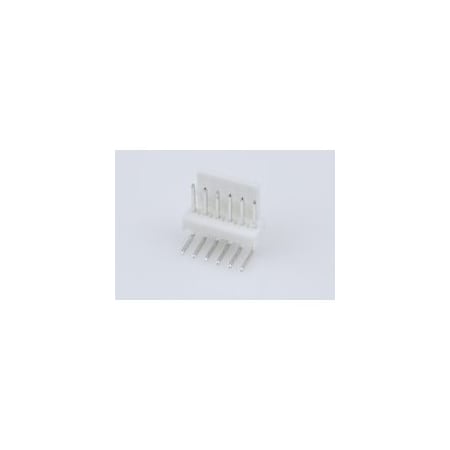

Molex / Waldom 22-05-7068 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 22057068
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| <a target="_blank" href. | //www.ibselectronics.co. |
| Alternate Mfr Part Numb. | AE-7395-6B |
| Applications | Automotive, General Pur. |
| Base Product Number | 002205 |
| Category | Connectors, Interconnec. |
| Circuits (Loaded) | 6 |
| Circuits (maximum) | 6 |
| Color | White |
| Color - Resin | Natural (White) |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Length - Mating | 0.264" (6.70mm) |
| Contact Length - Post | 0.150" (3.81mm) |
| Contact Material | Brass |
| Contact Plating | 4 A |
| Contact Shape | Square |
| Contact Type | Male Pin |
| CSA | LR19980 |
| Current - Maximum per C. | 4.0A |
| Current Rating | 4 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 6POS 2.. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM2788-ND |
| Durability (mating cycl. | 25 |
| Duration at Max. Proces. | 5 |
| Factory Pack Quantity | 2000 |
| Family Name | KK 254 |
| Fastening Type | Friction Lock |
| Features | - |
| Housing Material | Nylon |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.228" (5.80mm) |
| Insulation Material | Polyamide (PA66), Nylon. |
| Lock to Mating Part | Yes |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0022057068 |
| Manufacturer Standard L. | 35 Weeks |
| Mated Stacking Heights | - |
| Material - Metal | Brass |
| Material - Plating Term. | Tin |
| Material - Resin | Nylon |
| Material Flammability R. | UL94 V-0 |
| Max. Cycles at Max. Pro. | 1 |
| Mfr | Molex |
| Mounting Angle | Solder |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Positions Loa. | All |
| Number of Rows | 1, Through Hole |
| Operating Temperature | - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Package | Bulk |
| Packaging | Bag |
| Part # Aliases | 0022057068 AE-7395-6B |
| PC Tail Length | 3.80mm |
| PCB Thickness - Recomme. | 1.60mm |
| Pitch | 2.54 mm (0.100"), 6 |
| Pitch - Mating | 0.100" (2.54mm) |
| Pitch - Mating Interface | 2.54mm |
| Pitch - Termination Int. | 2.54mm |
| Plating Material | Tin |
| Plating min - Mating | 5.080?m |
| Plating min - Terminati. | 5.080?m |
| Polarized to Mating Part | Yes |
| Primary Type | Board Mount |
| Process Temperature max. | 235 |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| RoHS | Headers |
| Row Spacing - Mating | - |
| Series | 7395 Series, KK254, 7395 |
| Shrouding | Shrouded - 1 Wall |
| Special Features | Low-Halogen |
| Style | Board to Board or Cable |
| Termination | Solder |
| Termination Interface: . | Through Hole |
| Tradename | KK |
| Type | Right Angle Header, Pin. |
| UL | E29179 |
| Voltage - Maximum | 500V |
| Voltage Rating | -, 22 |
