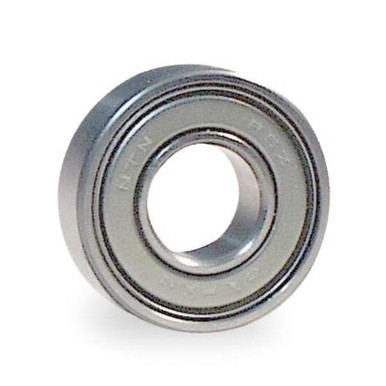

NTN BEARING 6201ZZC3/L627

B007IA5LWC

NTN BEARING 6201ZZC3/L627 12 X 32 X 10 MM, Radial, DEEP Groove, C3 Clearance, Double Shielded, Single Row, Ball Bearing

NTN BEARING 6201ZZC3/L627 12 X 32 X 10 MM, Radial, DEEP Groove, C3 Clearance, Double Shielded, Single Row, Ball Bearingzoom

Attributes

Key Value
Ball MaterialAlloy Steel
Bearing Industry Number6201
Bearing TypeShielded
Bore Dia.12 mm
Bore Diameter12 mm
BrandNtn
Cage MaterialSteel
Cage TypePressed
ClosureDouble Shielded
Current Stock397
Dynamic Load Capacity1,370 lb
Dynamic Radial Load Cap.6,750 N
Fillet Radius0.6 mm
FinishChrome Plated
Includes Retaining RingNo
Industry Number3VX630
International ShippingNo
ISO RatingClass 0
ItemRadial Ball Bearing
Lead TimeExpected to ship in 1-2.
Load DirectionRadial
Lubricant MaterialSRI 2 Grease, SRI 2
LubricationSRI#2 Grease
Maximum Speed22,000 RPM
Maximum Temperature120 Degrees C
Minimum Temperature-40 Degrees C
Mpn6201ZZC3/L627
Number of RowsOne
Outer Ring Width10 mm
Outside Dia.32 mm
Outside Diameter32 mm
Retaining Ring DiameterNot Applicable
Retaining Ring GrooveNo
Retaining Ring ThicknessNot Applicable
Ring MaterialAlloy Steel
Seal/Shield TypeDouble Shielded
Shield MaterialMetal
Single Row/Double RowSingle Row
SKUZO-G2254314
Static Load Capacity615 lb
Static Radial Load Capa.2,750 N
SubCategoryPower Transmission
System of MeasurementMetric
Temp. Range-20 Degrees to 250 Deg.
Width10 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG1L0148.499188261In StockNTN0.18.49918826 @ 1
thumbzoomsustainablesupply.comC16615239.731In StockNTN0.19.73 @ 1
thumbzoomZoroG225431413.591591Ntn0.113.59 @ 1
thumbzoomMisumi USA6201ZZC3/L62714.631In Stock18NTN14.63 @ 1
AmazonTPB007IA5LWC16.361In Stock2Ntn16.36 @ 1
AmazonSCB007IA5LWC16.491In StockNTN Bearing16.49 @ 1
thumbzoomRaptor SuppliesAB2BPG17.1848431In StockNTN17.184843 @ 1
thumbzoomsimsupply.comZO-G225431422.891397Ntn22.89 @ 1
